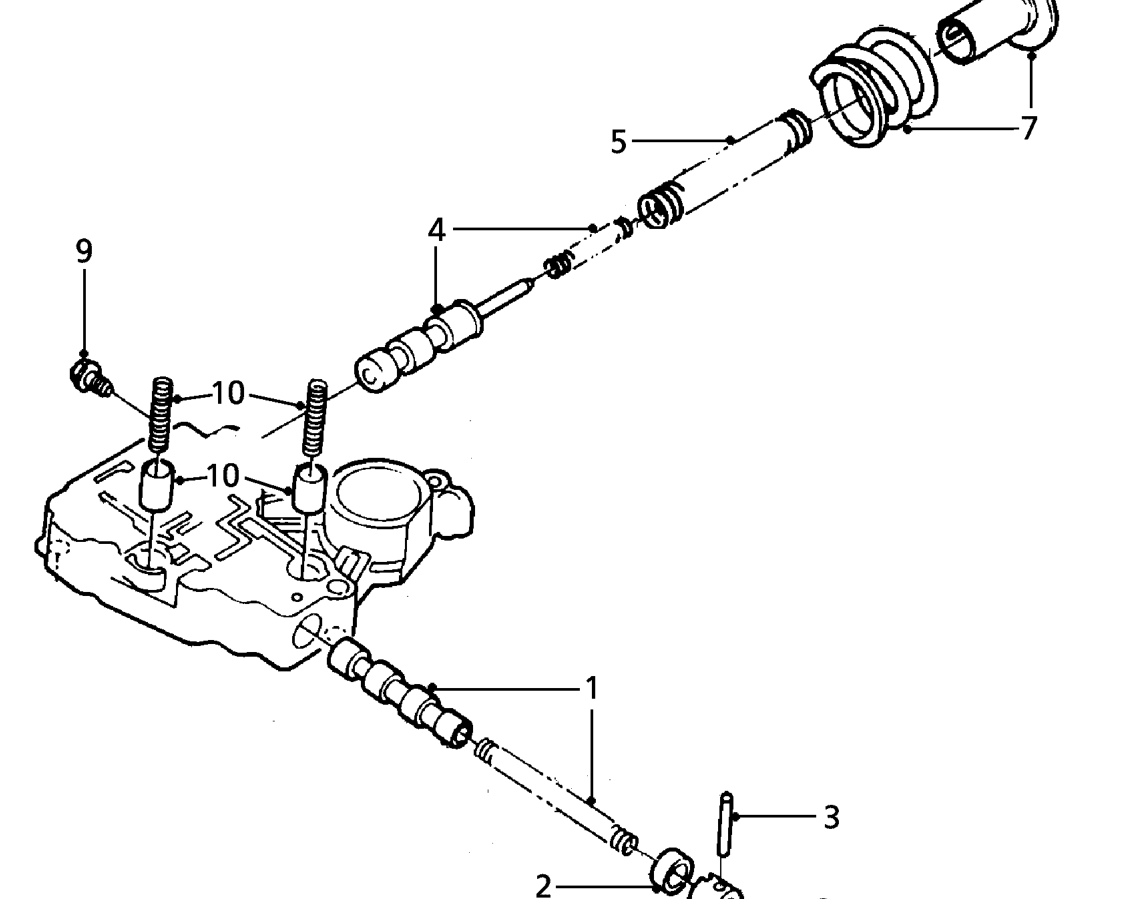

Regulator valve body - assembling

Regulator valve body - assembling

CAUTION: Lubricate all components with gearbox oil prior to assembling.

1. Insert lock-up control valve and spring into valve body.
2. Fit valve sleeve.
3. Fit lock-up control valve cap, fit roller.
4. Insert regulator valve and small spring into valve body.
5. Fit regulator valve large spring.
6. Assemble stator reaction spring to regulator spring cap.
7. Fit regulator spring cap and spring ensuring that hole in cap is aligned with bolt hole in valve body.
8. Depress spring cap, align bolt holes.
9. Fit and tighten bolt to 12 Nm.
10. Retain oil cooler check valve and torque converter check valve and springs with regulator valve body.
