Clutch assemblies - dismantling

Clutch assemblies - dismantling

NOTE: The dismantling procedure is the same for all clutches but in the case of the 2nd/4th clutches where the clutches are assembled back to back in a single drum, it will be necessary to dismantle one clutch at a time. Ensure that components are suitably identified to their respective clutches, do not interchange components between clutches.

NOTE: 3rd clutch assembly illustrated

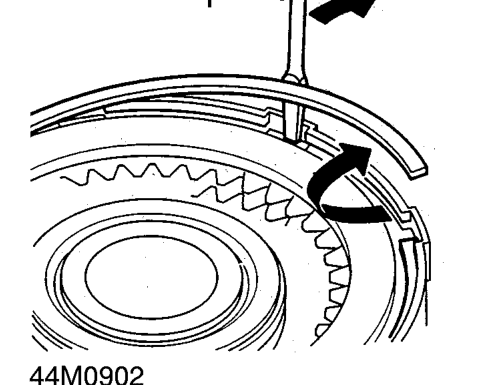

1. Using a screwdriver inserted in cut-out in clutch drum, carefully prise snap ring out of groove.

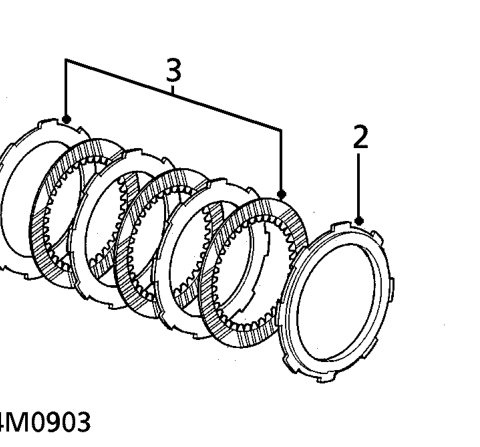

2. Remove clutch end plate.
3. Remove alternate clutch discs and plates.

NOTE: Discs have internal teeth, plates have external lugs.
