GEARCASE - DISMANTLING

Idler shaft

Idler shaft

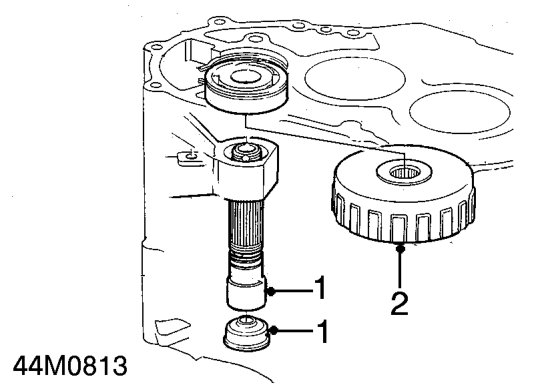

  1. Press idler shaft downwards to dislodge oil guide cap, remove and discard cap.
  2. Remove 1st hold clutch assembly from idler shaft.
Idler shaft – Remove 1st hold clutch assembly from idler shaft.

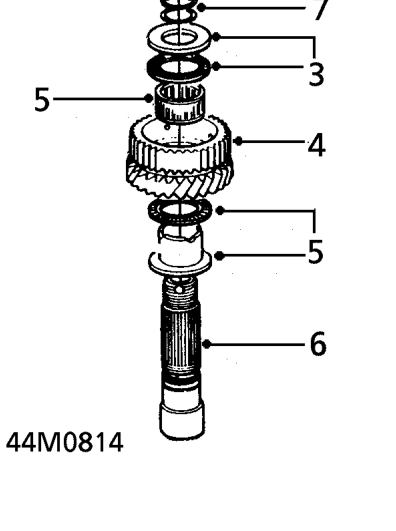

  1. Remove thrust washer and thrust needle bearing.
  2. Remove 4th gear.
  3. Remove needle bearing, second thrust needle bearing and 4th gear collar.
  4. Remove idler shaft from gearcase.
  5. Remove and discard 2 ’O’ rings.

Reverse idler gear

Reverse idler gear – Remove and discard 2 ’O’ rings.

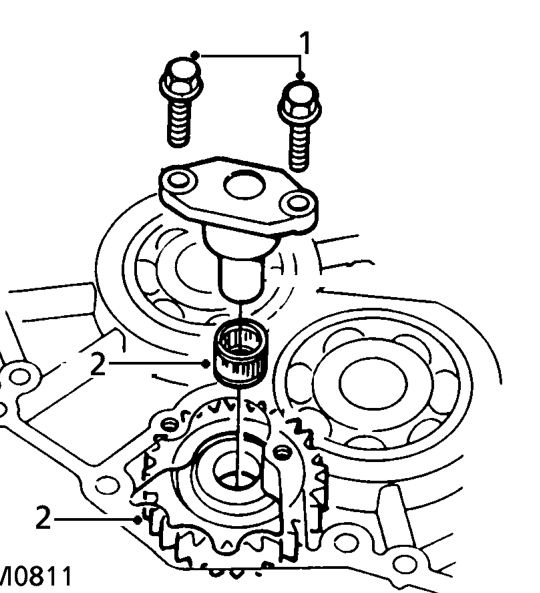

  1. Remove 2 bolts securing reverse idler gear shaft, remove shaft.
  2. Remove reverse idler gear, remove needle bearing.
