Skoda Fabia Mk201 · Running gear
01 · Steering & suspension

Measurement preliminaries

Make
Skoda
Model
Fabia Mk2
Section
Wheels, tyres. axle align › Vehicle alignment › Measurement preliminaries
Running gearMeasurement preliminaries
Measurement preliminaries
Special tools and workshop equipment required
t  Brake pedal load, e.g. -V.A.G 1869/2-
t  Alignment/measuring gauge
t  Weights, e.g. sand bags approx. 10 kg
The lateral runout on the rims must be balanced (compensated). Otherwise the alignment result will be inaccurate.
Correct toe-in adjustment is impossible if the rim run-out has not been compensated!
Comply with the instructions of the alignment gauge manufacturer.
–  Perform a rim runout compensation.
–  Lower vehicle and deflect the springs.

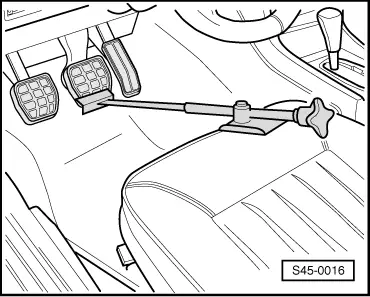

–  Secure brake pedal with brake pedal arrester, e.g. -V.A.G 1869/2-.
Overview of the work sequence for vehicle alignment
The following sequence of work steps must always be respected!
1 - The information in regards to the chassis mounted in the vehicle can be found on the vehicle data sticker → Chapter
2 - Check camber on front axle, if necessary take the mean → Chapter
3 - Check camber on rear axle → Chapter
4 - Check track on rear axle → Chapter
5 - Check track on front axle, if necessary adjust → Chapter
The following always applies!
Always check the transversal inclination of the vehicle before adjustment if one of the measuring values is outside the tolerance → Chapter.
Chassis terms
→ Chapter
Nominal values for vehicle alignment
t  Nominal values front axle → Chapter
t  Nominal values rear axle → Chapter
  S45-0016
