Air Inlet Assembly Replacement

Make

Vauxhall

Model

Astra J

Section

Heating, Ventilation, and Air Conditioning › Repair Instructions › Air Inlet Assembly Replacement

HVACAir Inlet Assembly Replacement

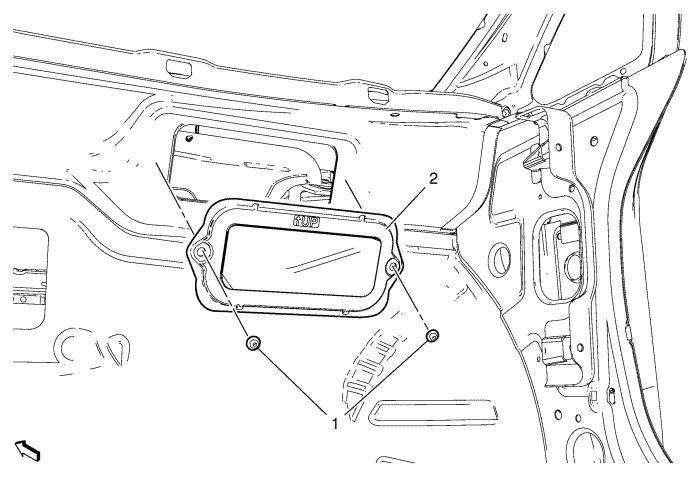

Air Inlet Assembly Replacement Callout Component Name Preliminary Procedures Remove the heater and air conditioning evaporator case. Refer to Heater and Air Conditioning Evaporator Case Replacement . 1 Air Inlet Nut (Qty: 2) Caution: Refer to Fastener Caution . Tighten 4 N·m (35 lb in) 2 Air Inlet
