Air Conditioning Condenser Replacement

Make

Vauxhall

Model

Astra J

Section

Heating, Ventilation, and Air Conditioning › Repair Instructions › Air Conditioning Condenser Replacement

HVACAir Conditioning Condenser Replacement

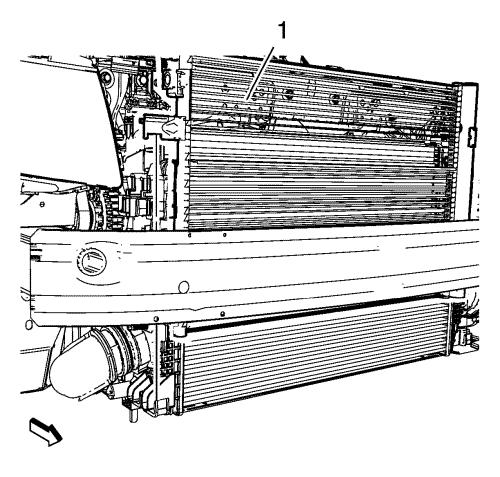

Air Conditioning Condenser Replacement Removal Procedure 1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging . 2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . 3. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . 4. Remove the headlamp - right side. Refer to Headlamp Replacement .            5. Remove the air intake duct (1).            6. Remove the condenser hose (1) and the evaporator hose (2). Remove the 2 hose nuts. 7. Remove the A/C refrigerant pressure sensor. Refer to Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement .            8. Remove the condenser (1). Installation Procedure            1. Install the condenser (1). 2. Install the A/C refrigerant pressure sensor. Refer to Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement . Caution: Refer to Fastener Caution .            3. Install the condenser hose (1) and the evaporator hose (2) and the 2 condenser hose nuts and tighten to 19 N·m (14 lb ft) .            4. Install the air intake duct (1). 5. Install the headlamp - right side. Refer to Headlamp Replacement . 6. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement . 7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . 8. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
