Automatic Transmission Wiring Harness Replacement

Make

Vauxhall

Model

Astra J

Section

Automatic Transmission - AF40-6 › Repair Instructions › Automatic Transmission Wiring Harness Replacement

Transmission/TransaxleAutomatic Transmission Wiring Harness Replacement

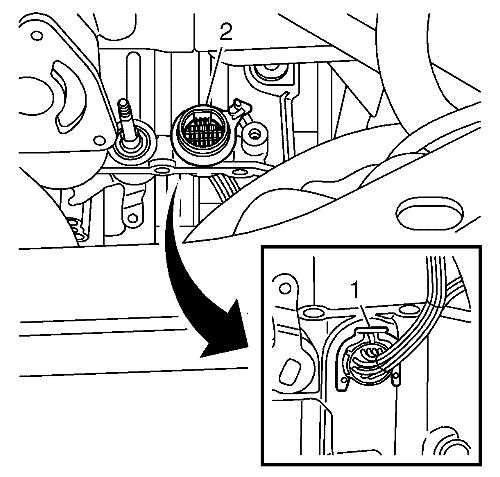

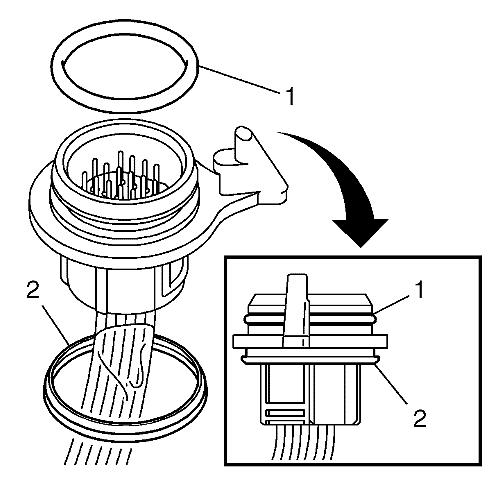

Automatic Transmission Wiring Harness Replacement Removal Procedure 1. Remove control valve body cover. Refer to Control Valve Body Cover Replacement . 2. Remove control valve body. Refer to Control Valve Body Replacement . 3. Remove the transmission control module. Refer to Transmission Control Module Replacement .            4. Remove the wiring harness.   •  Remove the retaining clamp (1).   •  Remove the wiring harness (2) carefully. Installation Procedure            1. Install a NEW seal (2) and an NEW O-ring (1) to the electrical connector.            2. Install the wiring harness (2).   Make sure that the connectors guide pin locates in the groove and install the retaining clamp (1). Check for correct seat of the wiring harness and the retaining clamp. 3. Install the transmission control module. Refer to Transmission Control Module Replacement . 4. Install the control valve body. Refer to Control Valve Body Replacement . 5. Install the control valve body cover. Refer to Control Valve Body Cover Replacement .
