Transmission Mount Replacement - Left Side

Make

Vauxhall

Model

Astra J

Section

Automatic Transmission - AF40-6 › Repair Instructions › Transmission Mount Replacement - Left Side

Transmission/TransaxleTransmission Mount Replacement - Left Side

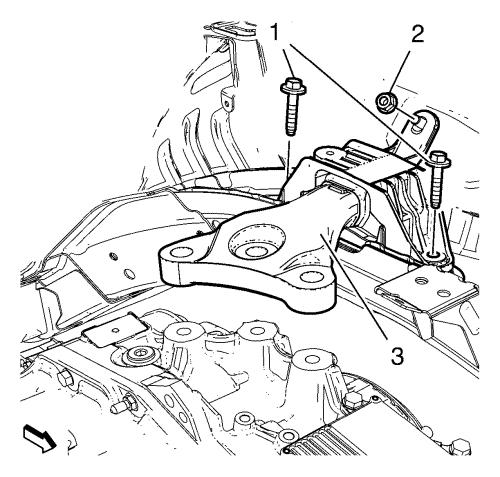

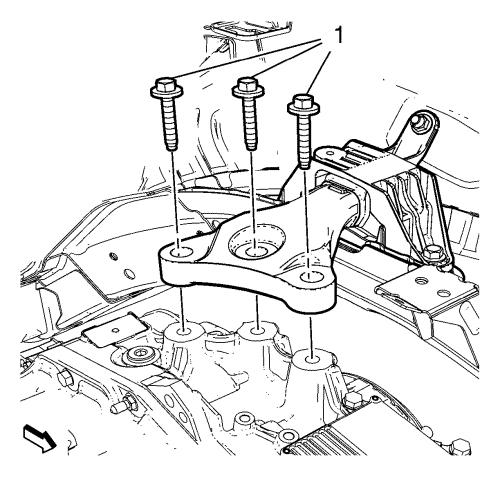

Transmission Mount Replacement - Left Side Removal Procedure 1. Remove the battery tray. Refer to Battery Tray Replacement .            2. Install an engine lifter (1) to the left engine lift brackets (2) and apply tension to the engine lifter chain in order to support the engine.            3. Remove and DISCARD the 3 left transmission mount to bracket bolts (1).            4. Remove the 2 left transmission mount to body bolts (1). 5. Remove the left transmission mount to body nut (2). 6. Remove the transmission mount (3) from the vehicle. Installation Procedure            1. Install the left transmission mount (3) to the vehicle. Caution: Refer to Fastener Caution . 2. Install the 2 transmission mount to body bolts (1) and tighten to 62 N·m (46 lb ft) . 3. Install the transmission mount to body nut (2) and tighten to 62 N·m (46 lb ft) . Caution: Refer to Torque-to-Yield Fastener Caution .            4. Install the 3 NEW left transmission mount to transmission bolts (1) and tighten to 50 N·m (37 lb ft) + 60°-75° . 5. Remove the engine lifter from left engine lift brackets. 6. Install the battery tray. Refer to Battery Tray Replacement .
