Transmission Mount Bracket Replacement - Rear

Make

Vauxhall

Model

Astra J

Section

Automatic Transmission - AF40-6 › Repair Instructions › Transmission Mount Bracket Replacement - Rear

Transmission/TransaxleTransmission Mount Bracket Replacement - Rear

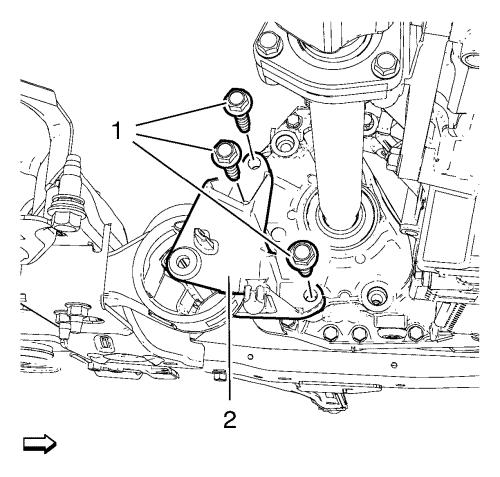

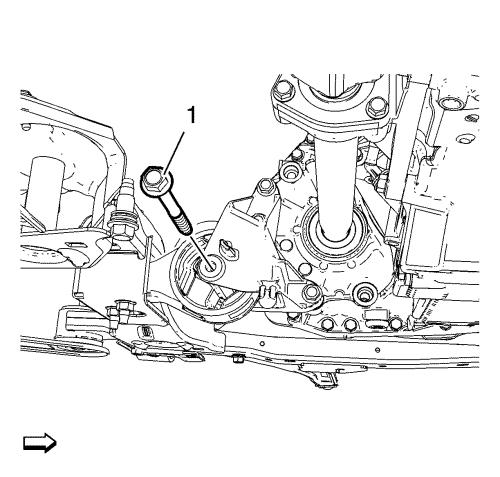

Transmission Mount Bracket Replacement - Rear Removal Procedure 1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Remove front compartment insulator. Refer to Front Compartment Insulator Replacement . 3. Using a suitable jack stand, support the rear of the transmission.            4. Remove the transmission bracket mount to mount through bolt (1).            5. Remove the 3 transmission mount to transmission bolts (1). 6. Remove the transmission mount bracket - rear (2). Installation Procedure            1. Install the 3 transmission mount bracket - rear (2). Caution: Refer to Fastener Caution . 2. Install the transmission mount to transmission bolts (1) and tighten to 100 N·m (74 lb ft) .            3. Install the transmission bracket mount to mount through bolt (1) and tighten to 100 N·m (74 lb ft) . 4. Remove the jack stand. 5. Install front compartment insulator. Refer to Front Compartment Insulator Replacement . 6. Lower the vehicle.
