WIRING DIAGRAM (T.SPARK version) (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Power Supply
146 electrical system diagnosisWIRING DIAGRAM (T.SPARK version) · page 2 of 2

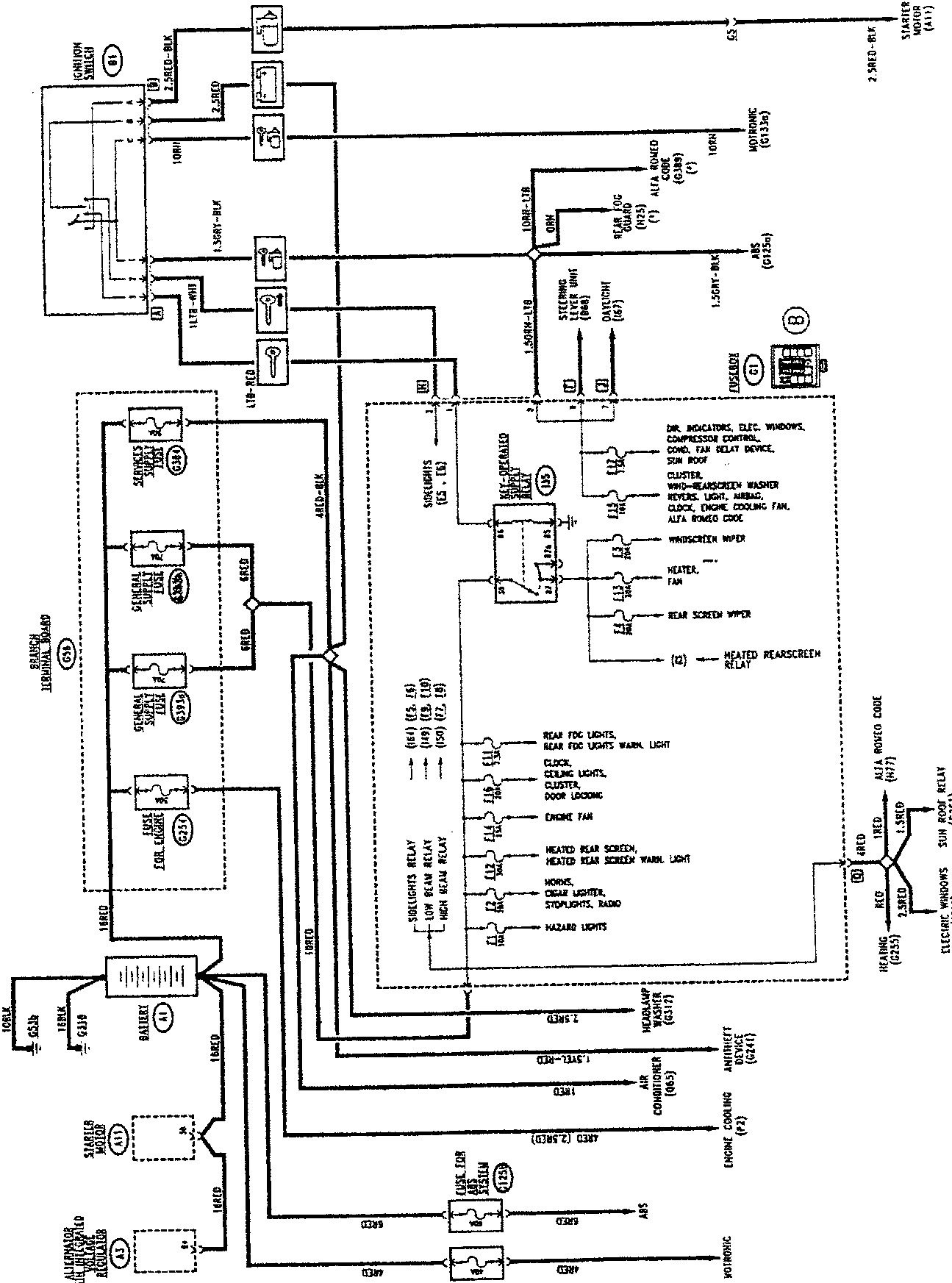

WIRING DIAGRAM (T.SPARK version) (page 2 of 2) – diagram from the 146 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
WIRING DIAGRAM (T.SPARK version)
