Engine overhaul: 1.9 JTD (AR32302)Checking lubrication circuit electric components

CHECKING LUBRICATION CIRCUIT ELECTRIC COMPONENTS

  • Engine oil minimum pressure warning light

For all the other sensors and electric components located in the engine compartment, refer to the specific Groups in which they are described in detail.

ENGINE OIL MINIMUM PRESSURE WARNING LIGHT SENSOR

  1. Check the setting of the engine oil minimum pressure warning light sensor. If the values are not as specified, replace the sensor.
Contact opening/closing pressure 0.2 ÷ 0.5 bar
19 ÷ 23 Nm 1.9 ÷ 2.4 kgm

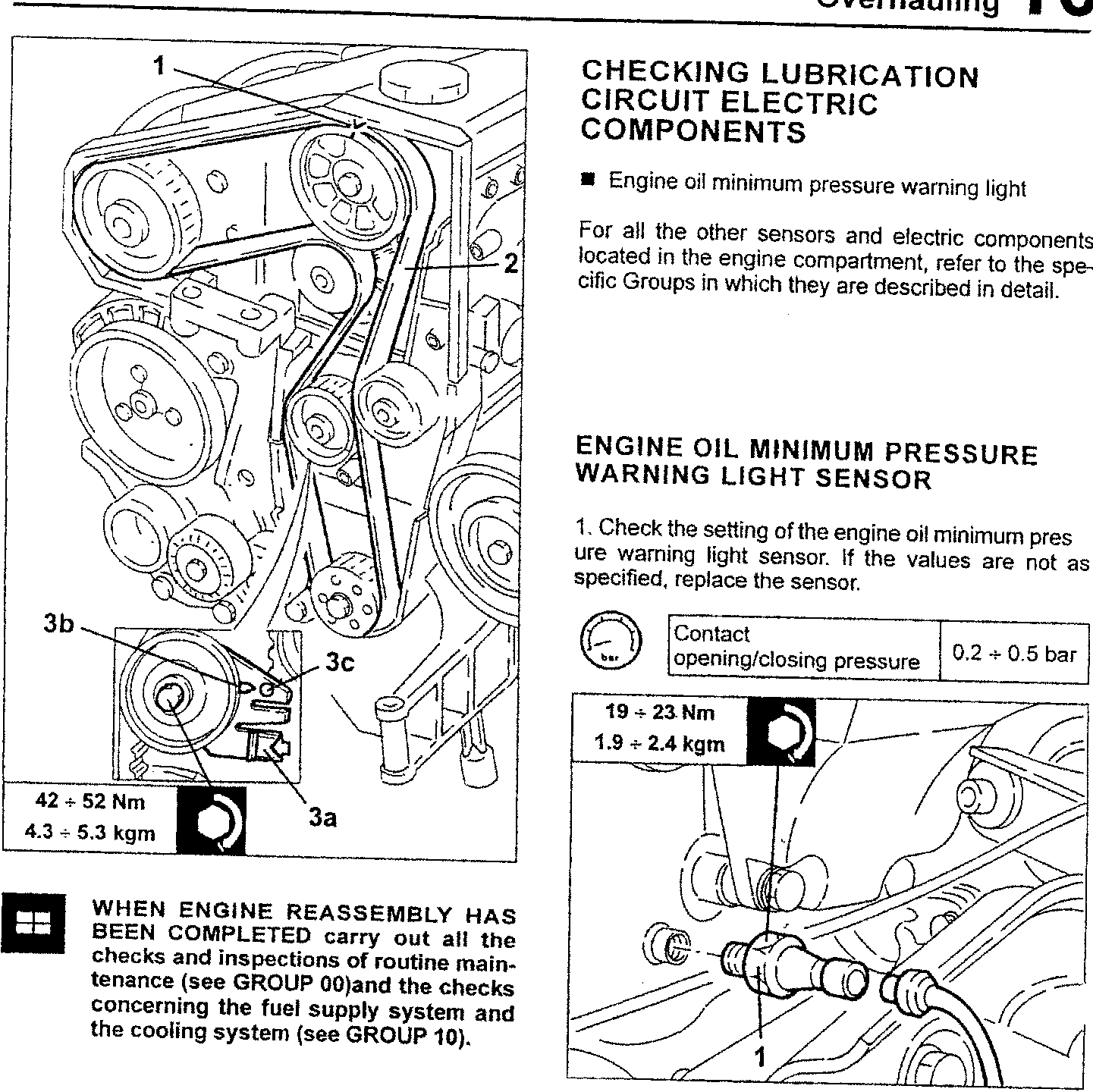

Engine diagram with labeled parts 1, 2, 3a, 3b, 3c
WHEN ENGINE REASSEMBLY HAS BEEN COMPLETED carry out all the checks and inspections of routine maintenance (see GROUP 00)and the checks concerning the fuel supply system and the cooling system (see GROUP 10).

42 ÷ 52 Nm
4.3 ÷ 5.3 kgm
