Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)10 · Engine overhaul: 1.9 JTD (AR32302)
10 · Engine

Timing belt removal

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Overhauling › Timing belt removal
Engine overhaul: 1.9 JTD (AR32302)Timing belt removal

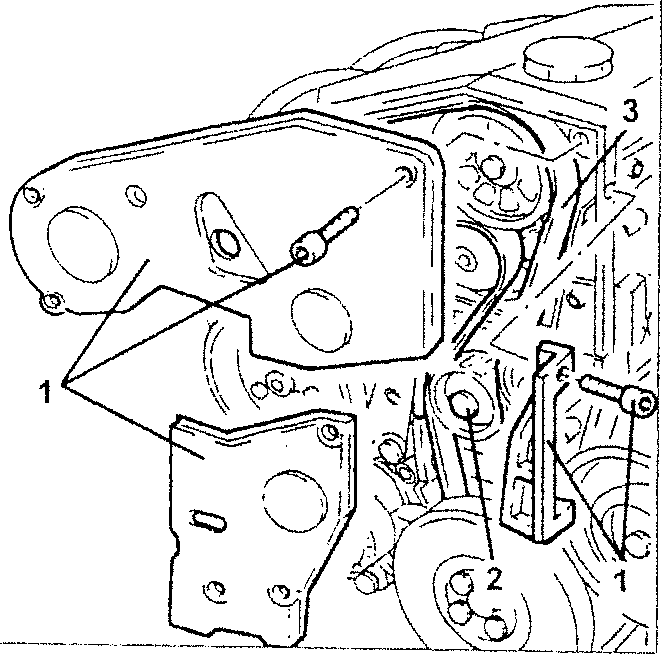

TIMING BELT REMOVAL

  1. Loosen the screws and remove the timing belt guard.
  2. Loosen the timing belt take-up device nut.
  3. Remove the timing belt.
Timing belt removal diagram showing components 1, 2, and 3

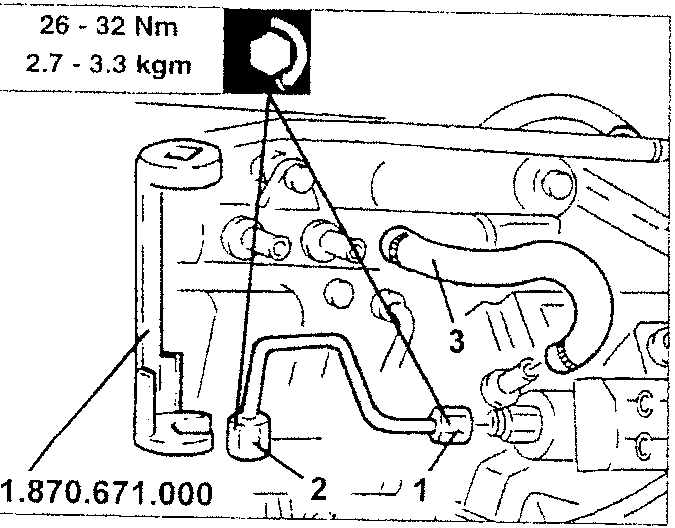

PRESSURE PUMP REMOVAL

  • Loosen the screws and remove the engine oil level dipstick.
  • Loosen the pressure pump bracket side screws.
  1. Disconnect the pressure pump-fuel manifold pipe pump side fitting with a suitable tool.
  2. Loosen the pressure pump-fuel manifold pipe manifold side fitting with tool no. 1.870.671.000.
  3. Disconnect the pressure pump-fuel return pipe on pipe side.

26 - 32 Nm
2.7 - 3.3 kgm

Pressure pump removal diagram showing components 1, 2, and 3 with tool reference 1.870.671.000

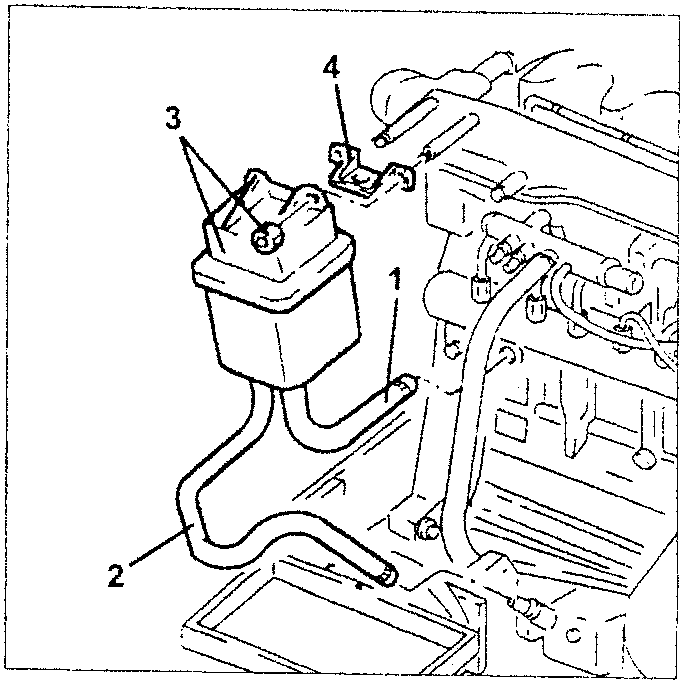

TURBO COMPRESSOR REMOVAL

  1. Disconnect the crankcase oil vapour recovery pipe.
  2. Disconnect the condense oil recovery pipe from the crankcase sump.
  3. Loosen the nuts and remove the oil vapour separator.
  4. Remove the bracket.
Turbo compressor removal diagram showing components 1, 2, 3, and 4

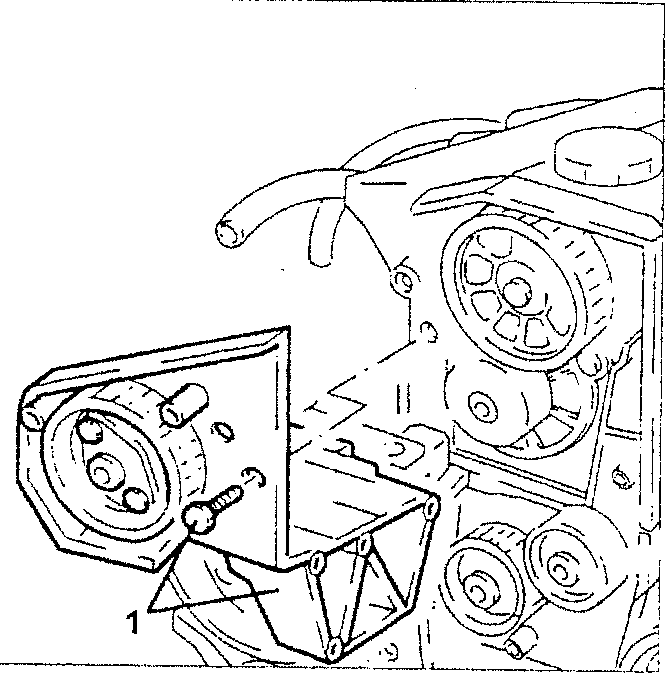

1. Loosen the remaining front screws and remove the pressure pump and bracket.

Pressure pump and bracket removal diagram showing component 1
