10 · Engine

Removing the flywheel

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Overhauling › Removing the flywheel
Engine overhaul: 1.9 JTD (AR32302)Removing the flywheel

REMOVING THE FLYWHEEL

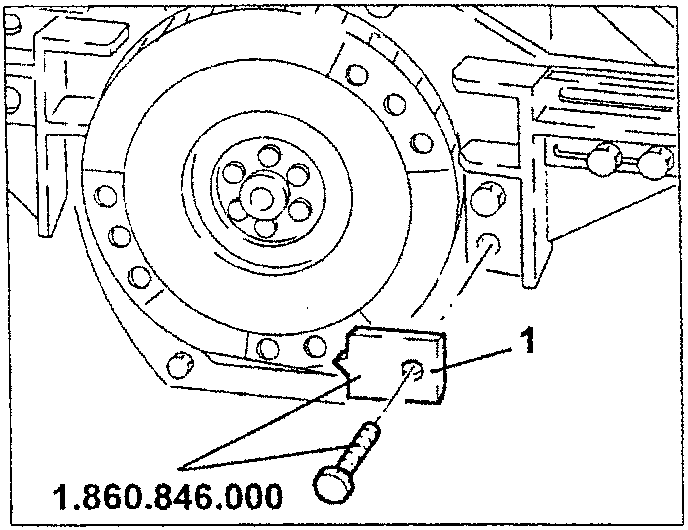

  1. Assemble the flywheel stopper tool no. 1.860.846.000.
Flywheel with stopper tool attached

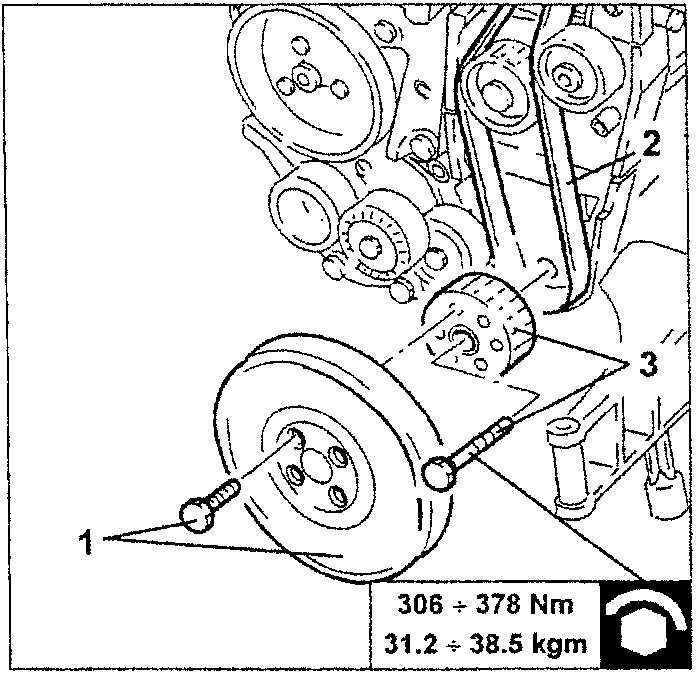

  1. Slacken the fastening screws and remove the crankshaft pulley.
  2. Remove the camshaft belt.
  3. Slacken the screw (left-handed) and remove the driving toothed pulley.
Crankshaft pulley and camshaft belt removal

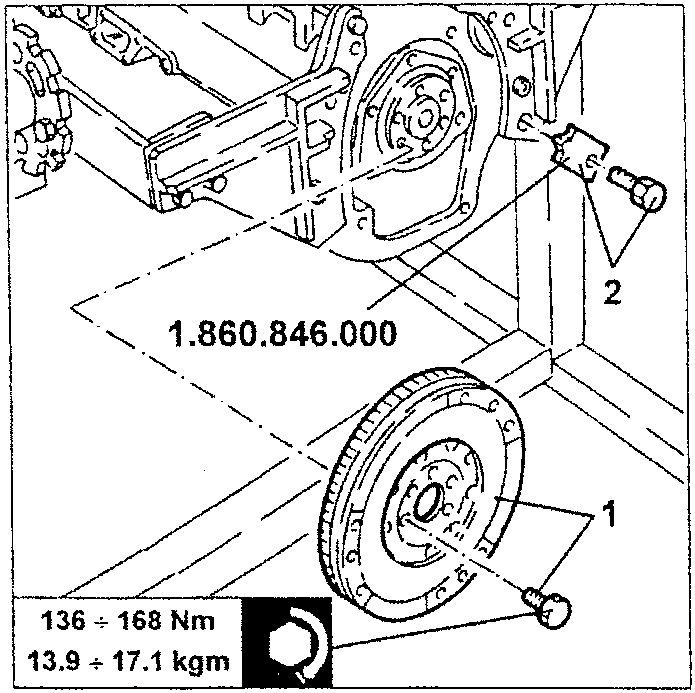

  1. Slacken the fastening screws and remove the flywheel.
  2. Remove the flywheel stopper tool no. 1.860.846.000.

306 ÷ 378 Nm
31.2 ÷ 38.5 kgm

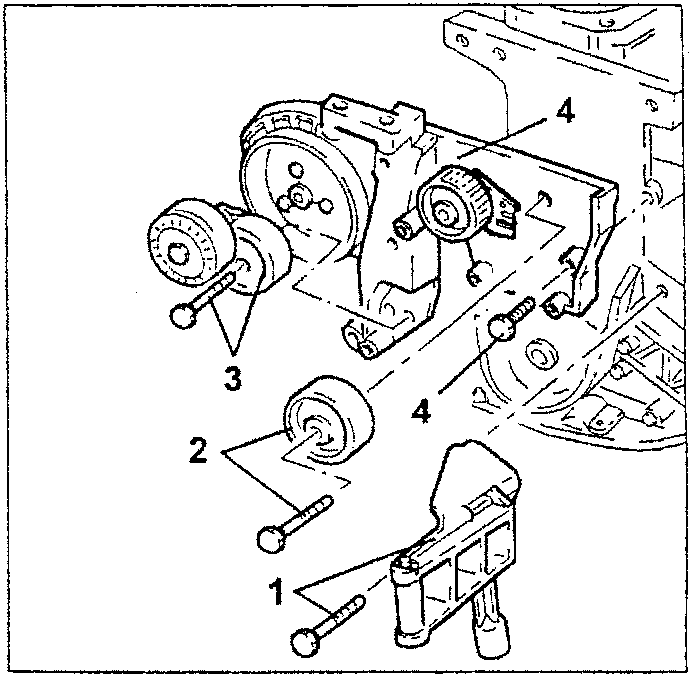

REMOVING THE CRANKCASE FRONT COVER

  1. Slacken the fastening screws and remove the power unit rigid support on the camshaft side.
  2. Slacken the fastening screw and remove the camshaft drive fixed tensioner.
  3. Slacken the fastening screw and remove the engine parts drive belt automatic tensioner.
  4. Slacken the screws and remove the support complete with power steering pump and mobile camshaft drive tensioner.
Clutch disc installation torque specification diagram
Crankcase front cover removal

136 ÷ 168 Nm
13.9 ÷ 17.1 kgm
