Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)11 · Engine overhaul: 1.9 TD (AR67501)
11 · Engine

Removal of cylinder heads (page 2 of 2)

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Overhauling
Engine overhaul: 1.9 TD (AR67501)Removal of cylinder heads · page 2 of 2

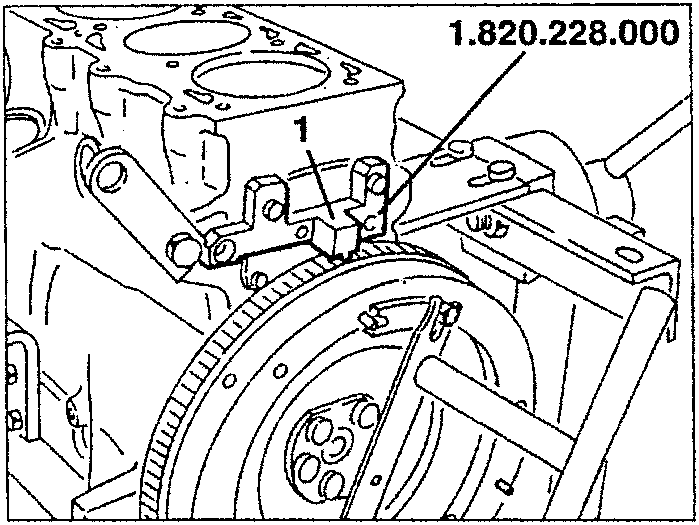

Install flywheel stop tool N° 1.820.228.000.

Flywheel stop tool installed on engine block

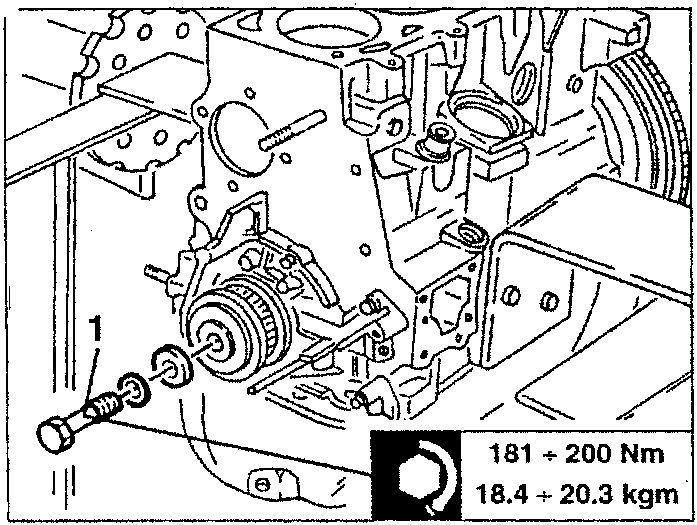

  1. Unscrew the fastening screws of the timing control elt pulley.
Timing control pulley with torque specification

Install tool N° 1.820.229.000 on the timing control pulley.

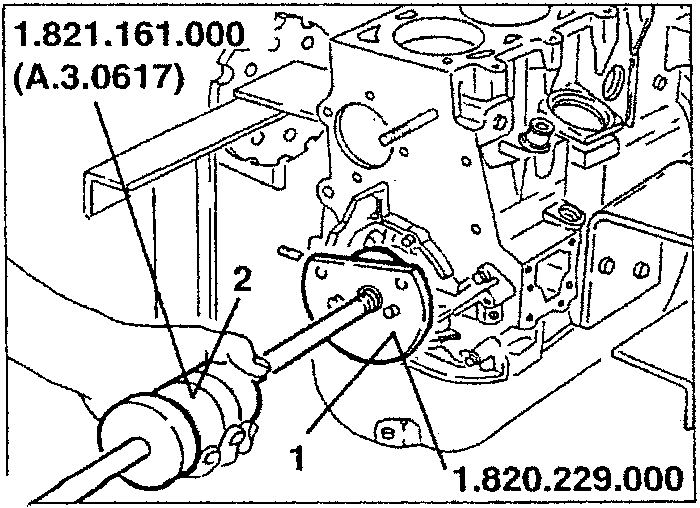

  1. Using ram N° 1.821.161.000 (A.3.0617), remove the timing control pulley.
Ram tool removing timing control pulley
  • Remove flywheel stop tool N° 1.820.228.000 installed previously.
  • Rotate the engine block 180° on the rotating overhaul stand.

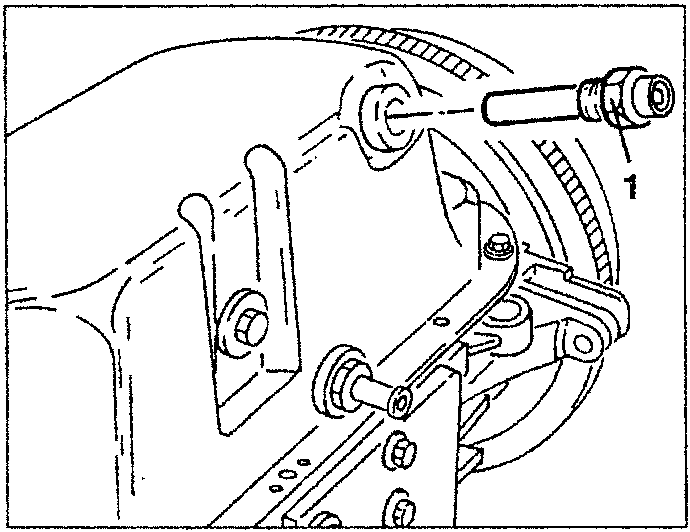

  1. Remove the engine oil temperature sensor from the oil sump.
Engine oil temperature sensor removal
  1. Unscrew the fastening screws and remove the oil pump.
Oil pump removal

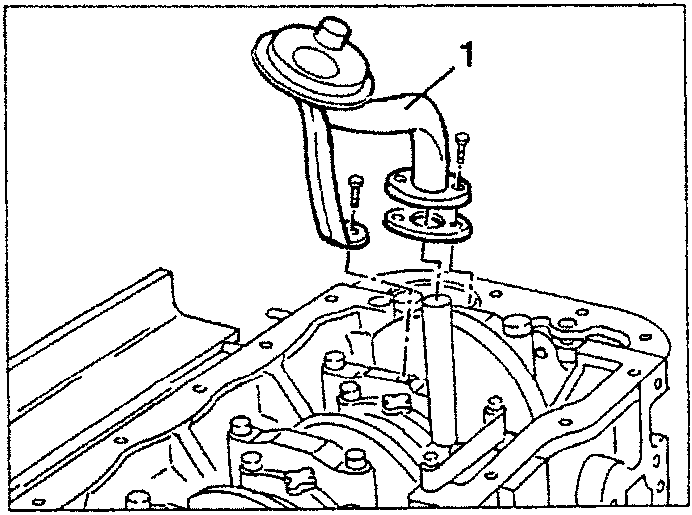

  1. Remove the suction device for the engine oil pump.
Suction device for engine oil pump

181 ÷ 200 Nm
