Engine overhaul: 3.0 V6 (AR16101)Oil pump removal

Proceed as follows (right-hand cylinder head only):

  1. Lock engine oil pump drive pulley rotation with tool no. 1.822.146.000.
  2. Loosen the fastening nut and remove the oil pump intermediate drive gear from its seat.
Engine oil pump drive pulley and intermediate drive gear with tool 1.822.146.000
  1. Loosen the fastening nuts and remove the engine crankcase cylinder head.
  2. Remove the respective seals.

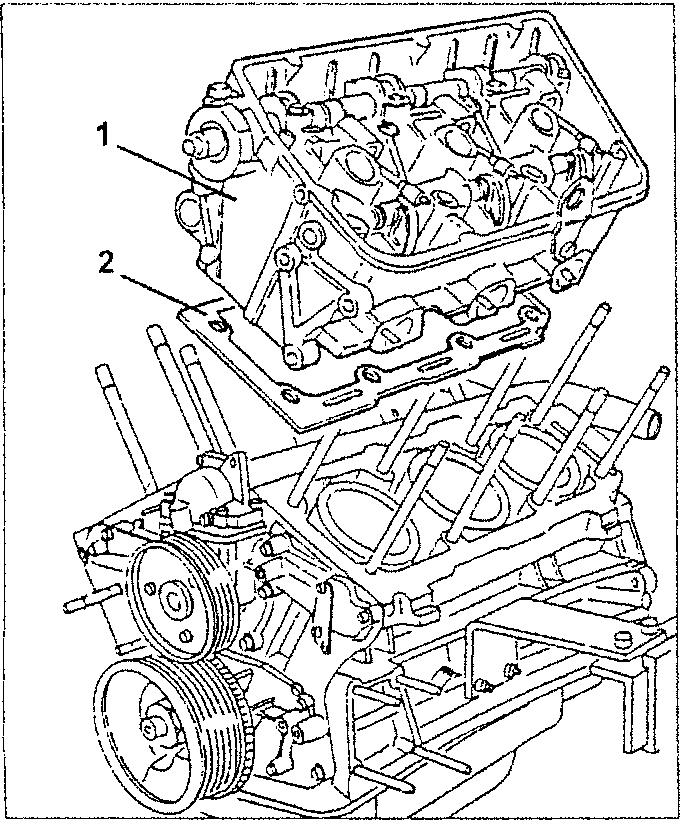

Engine crankcase with cylinder head removed
  1. Fit liner retainer tools no. 1.820.279.000.

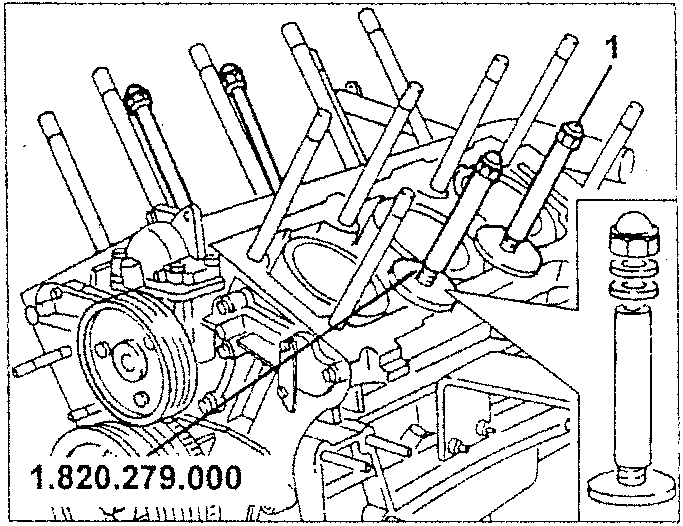

Liner retainer tools 1.820.279.000 fitted to engine block
  1. Loosen the fastening screws and remove the pump coolant return manifold.
  2. Loosen the screws and remove the knock sensors.

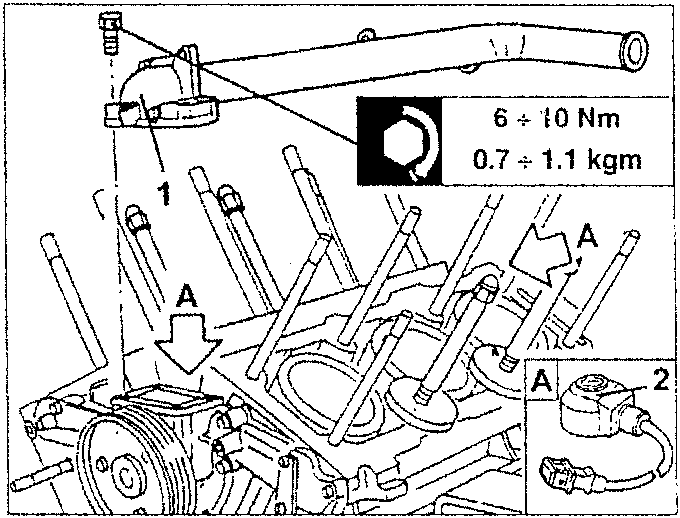

Pump coolant return manifold and knock sensors removal with torque specification 6 ÷ 10 Nm / 0.7 ÷ 1.1 kgm

6 ÷ 10 Nm
0.7 ÷ 1.1 kgm

OIL PUMP REMOVAL

  • Turn the engine on the overhaul bench.
  1. Loosen the fastening screws and remove the oil sump.

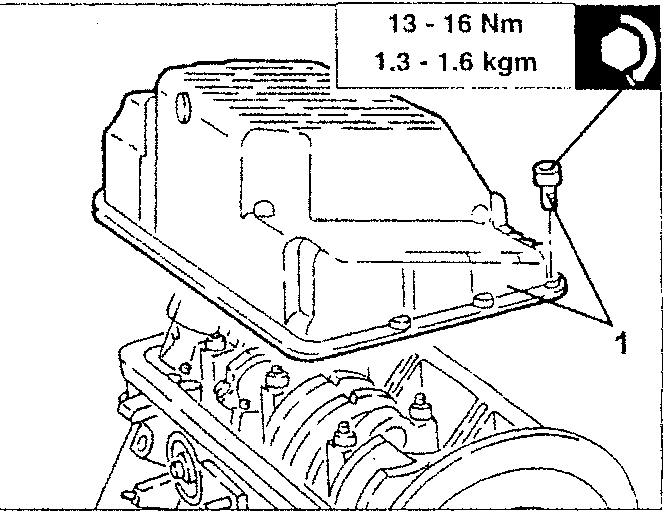

Oil sump removal with torque specification 13 - 16 Nm / 1.3 - 1.6 kgm

13 ÷ 16 Nm
1.3 ÷ 1.6 kgm
