Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)12 · Engine overhaul: 3.0 V6 (AR16101)
12 · Engine

Removing the clutch plate

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Overhauling › Removing the clutch plate
Engine overhaul: 3.0 V6 (AR16101)Removing the clutch plate

REMOVING THE CLUTCH PLATE

  1. Slacken the fastening screws and remove the pressure plate body.
  2. Remove the clutch plate.

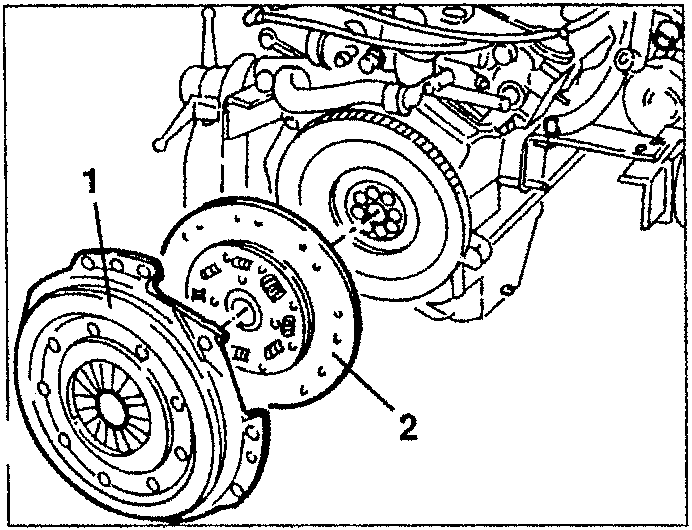

Clutch plate and pressure plate body
  1. Clutch plate
  2. Pressure plate body

REMOVING THE POWER STEERING PUMP

  1. Slacken the three screws fastening the power steering pump support bracket.
  2. Slacken the locknut, slacken the micrometric tensioner screw, then remove the power steering pump drive belt.
  3. Back off the three screws slackened previously and remove the power steering pump complete with support bracket.

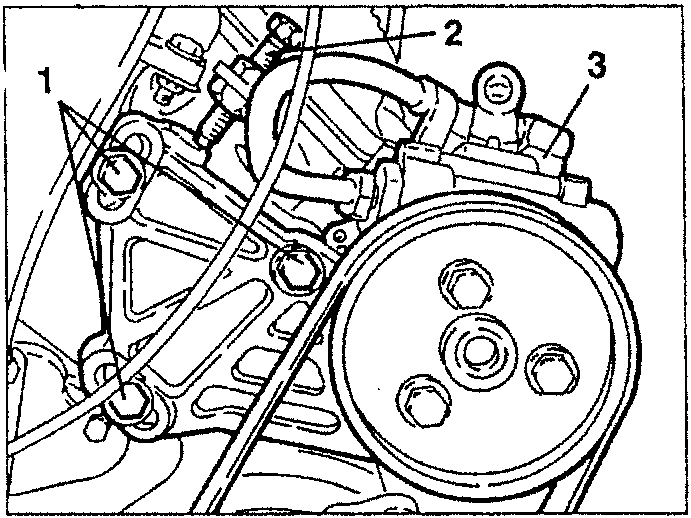

Power steering pump and support bracket
  1. Power steering pump
  2. Support bracket
  3. Micrometric tensioner screw

REMOVING THE AIR INTAKE BOX

  1. Slacken the ignition coil fastening screws, then remove the coils complete with high voltage cables after disconnecting them from the spark plugs.

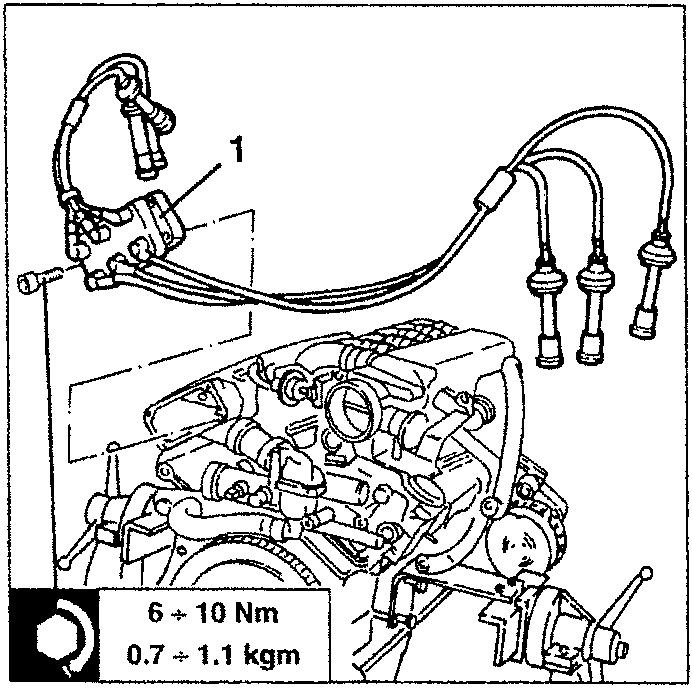

Ignition coils and spark plug wires

6 ÷ 10 Nm
0.7 ÷ 1.1 kgm

  1. Ignition coil

REMOVING THE POWER STEERING PUMP

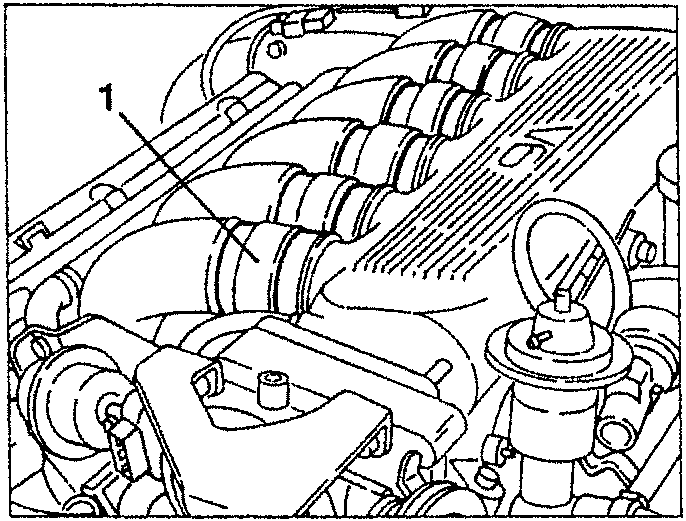

Air intake ducts and intake box
  1. Slacken the clamps fastening the air intake ducts to the intake box.

REMOVING THE AIR INTAKE BOX

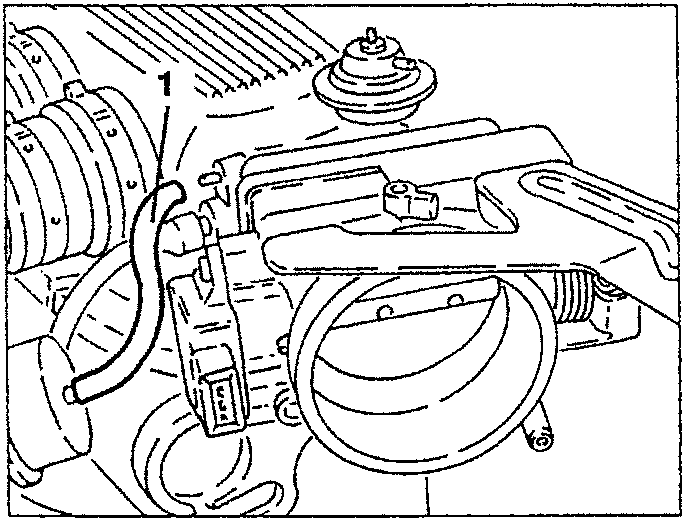

Fuel pressure regulator vacuum pipe
  1. Disconnect the vacuum takeoff pipe for the fuel pressure regulator from the intake box.
