Engine overhaul: 3.0 V6 (AR16101)Removing the alternator · page 1 of 2

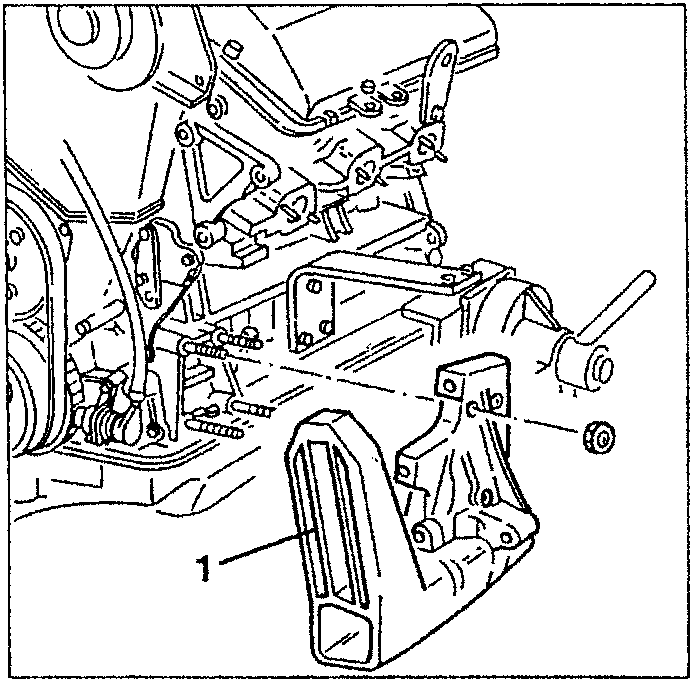

  1. Slacken the fastening nuts and remove the front engine support.
Front engine support removal

REMOVING THE ALTERNATOR

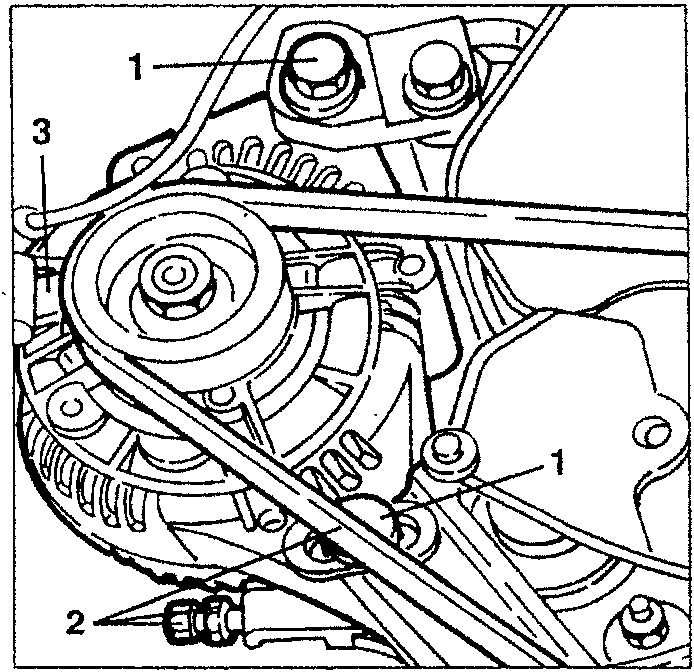

  1. Slacken the two bolts fastening the alternator to the support brackets.
  2. Loosen the locknut, slacken the micrometric tensio-ner screw, then prise and remove the alternator - water pump drive belt.
  3. Completely back off the two bolts loosened pre-vi ously and remove the alternator.
Alternator removal with belt

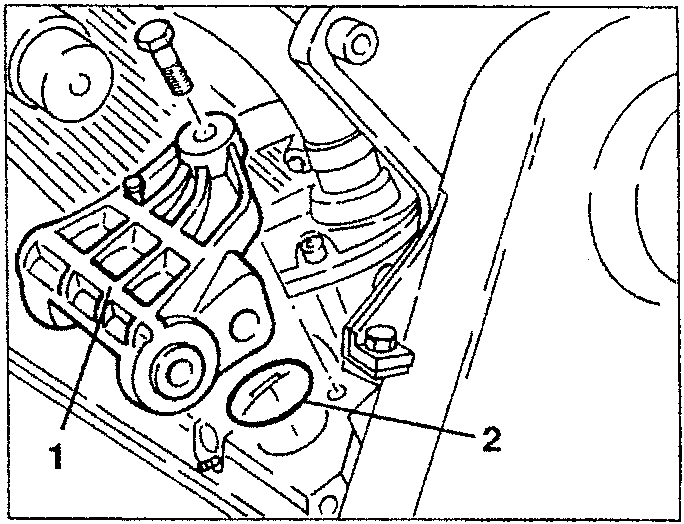

  1. Remove the upper alternator support bracket.
  2. Remove the O-Ring.

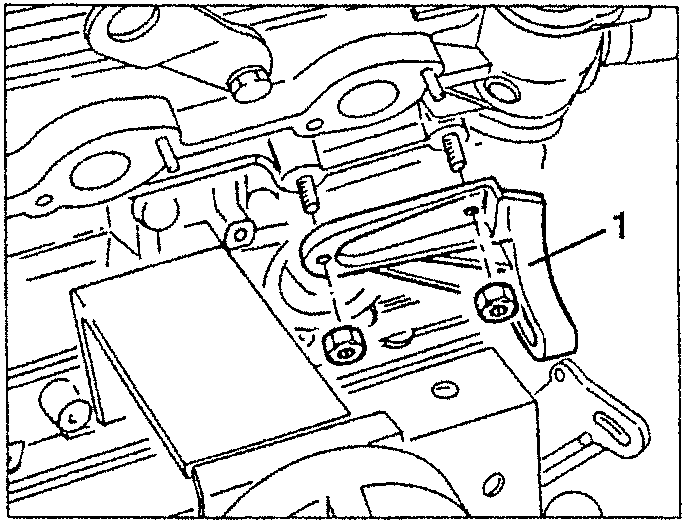

Rear lower alternator support bracket
  1. Slacken the fastening nuts and remove the rear lower alternator support bracket.

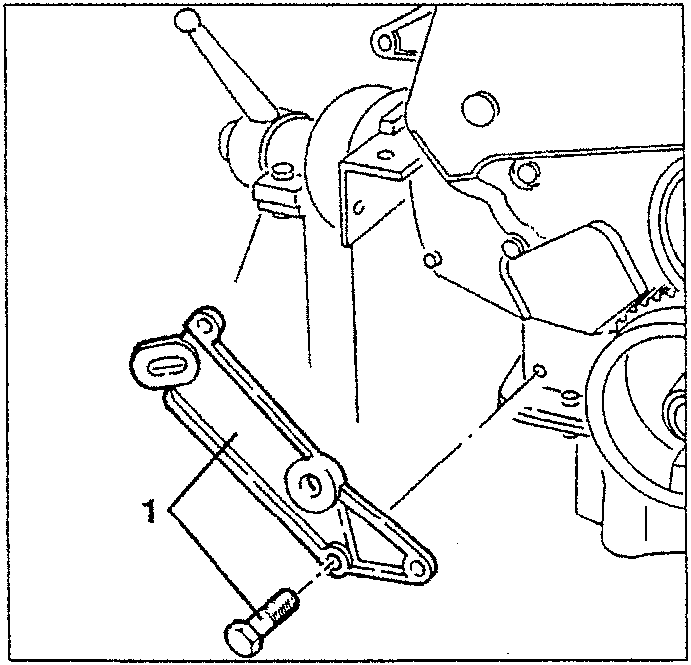

Front lower alternator support bracket
  1. Slacken the fastening screws and remove the front lower alternator support bracket.
Front lower alternator support bracket
