Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)12 · Engine overhaul: 3.0 V6 (AR16101)
12 · Engine

Removing the power steering pump

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Overhauling › Removing the power steering pump
Engine overhaul: 3.0 V6 (AR16101)Removing the power steering pump
  1. Slacken the ignition coil fastening screws, then remove the coils complete with high voltage cables after disconnecting them from the spark plugs.

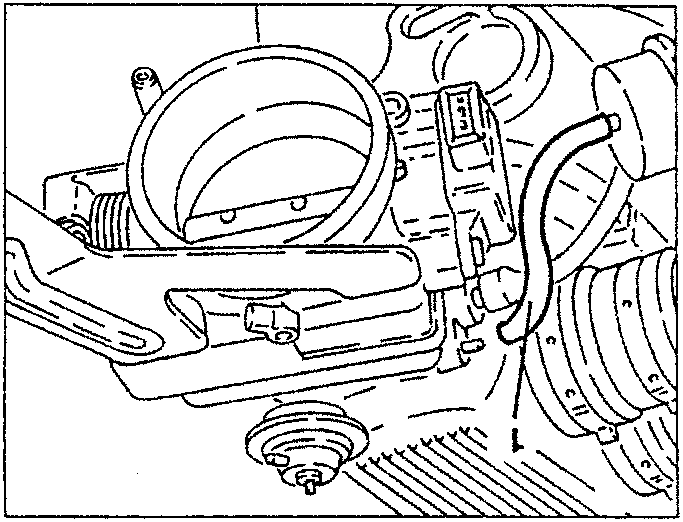

Air intake box with vacuum regulator and fuel pipe connection
  1. Disconnect the vacuum takeoff pipe for the fuel pressure regulator from the intake box.

REMOVING THE POWER STEERING PUMP

  1. Slacken the three screws fastening the power steering pump support bracket.
  2. Slacken the locknut, slacken the micrometric ten-division screw, then remove the power steering pump drive belt.
  3. Back off the three screws slackened previously and remove the power steering pump complete with support bracket.
Power steering pump with bolts and belt
  1. Slacken the three screws fastening the power steering pump support bracket.

REMOVING THE CLUTCH PLATE

  1. Slacken the fastening screws and remove the pressure plate body.
  2. Remove the clutch plate.
Clutch plate with release bearing

REMOVING THE AIR INTAKE BOX

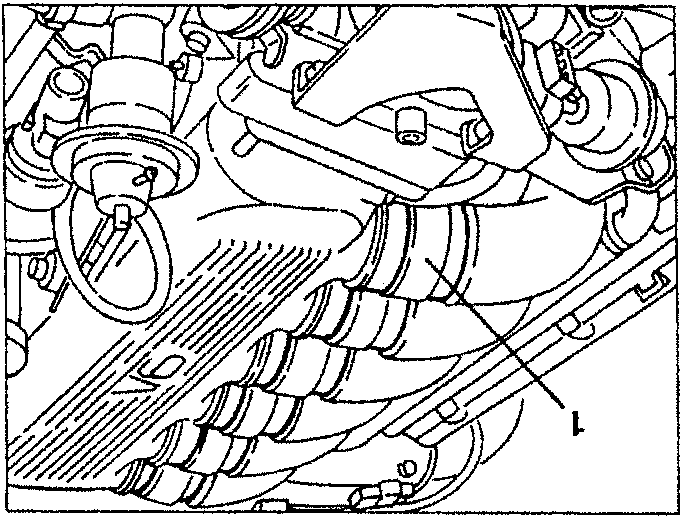

  1. Slacken the clamps fastening the air intake ducts to the intake box.
Air intake ducts and clamps

REMOVING THE POWER STEERING PUMP

  1. Slacken the three screws fastening the power steering pump support bracket.
  2. Slacken the locknut, slacken the micrometric ten-division screw, then remove the power steering pump drive belt.
  3. Back off the three screws slackened previously and remove the power steering pump complete with support bracket.
Power steering pump with bolts and belt

REMOVING THE CLUTCH PLATE

  1. Slacken the fastening screws and remove the pressure plate body.
  2. Remove the clutch plate.
Clutch plate with release bearing

REMOVING THE AIR INTAKE BOX

  1. Slacken the clamps fastening the air intake ducts to the intake box.
Air intake ducts and clamps

6 + 10 Nm
0.7 + 1.1 kgm

Ignition coil and high voltage cables
