Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Identification label (page 2 of 3)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Body - Generalities
BodyworkIdentification label · page 2 of 3

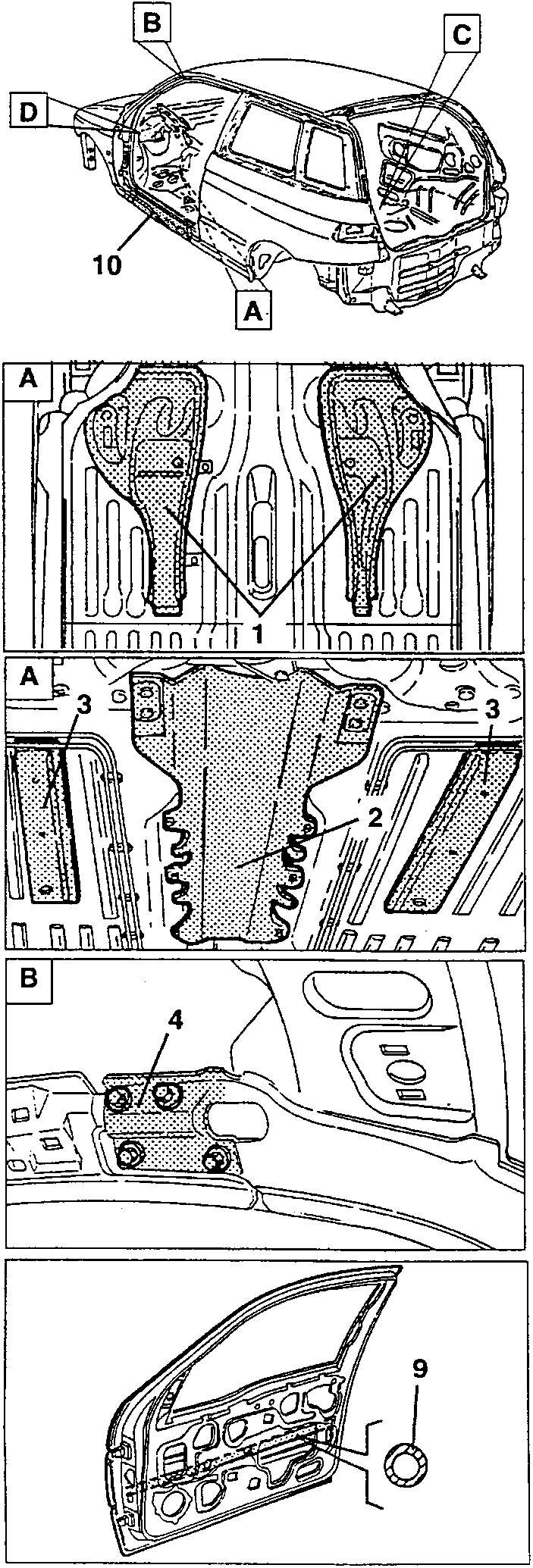

Body structure with reinforcing parts shown in detail views A, B, C and D (numbered parts 1 to 10)
  1. Boxed parts under floor panel (Boxer engines)
  2. Gear lever support (Turbodiesel engines)
  3. Boxed parts under floor panel (Turbodiesel engines)
  4. Front pillar reinforcing
  5. Rear seat cushion retaining hook
  6. Dashboard crossmember support
  7. Strut (Boxer engines)
  8. Strut (Turbodiesel engines)
  9. Door reinforcing bar
  10. Reinforcing under door

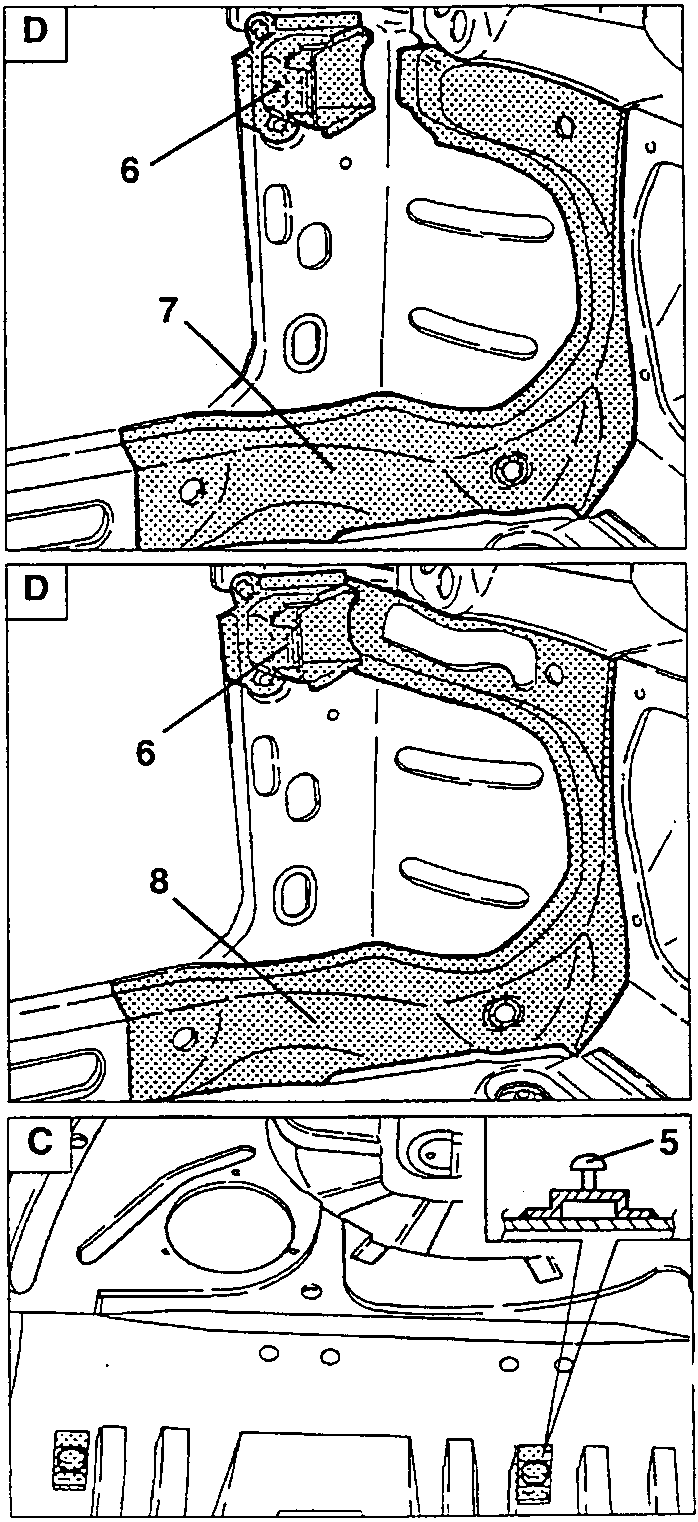

Detail views D (struts 7 and 8 with support 6) and C (rear seat cushion retaining hook 5)
