BodyworkRepainting damaged metal sheet · page 2 of 3

● ● ● ●

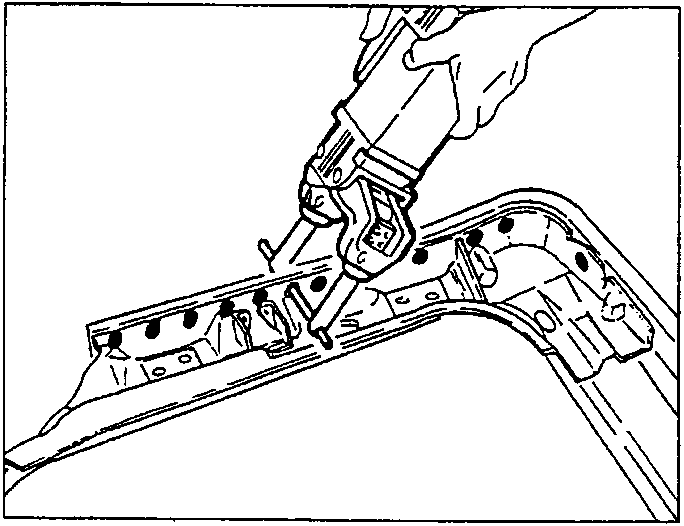

Spot welding

NOTE:
To make the diagrams clearer no symbols are used to make a distinction between welding of two sheets and that applied to three sheets.

■ ■ ■ ■ ■

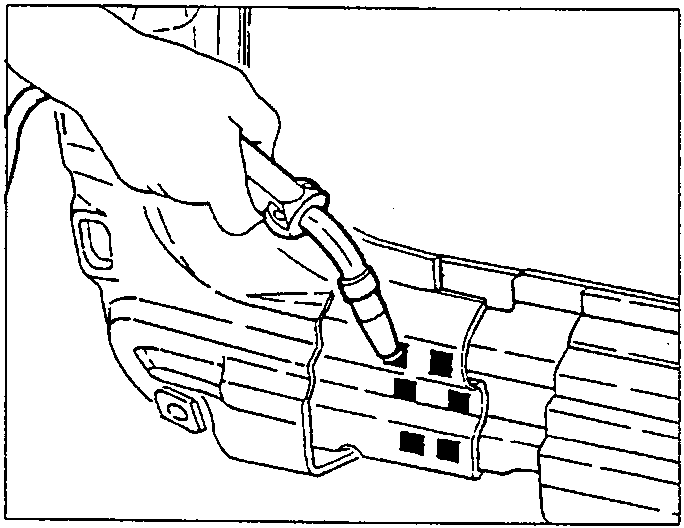

MIG welding for filling

In order to condense the information relative to the operations described in the procedure for replacing components the following technique is used:

• number of welding points
• type of welding to be carried out
• progressive number of steps

∩∩∩∩∩∩∩

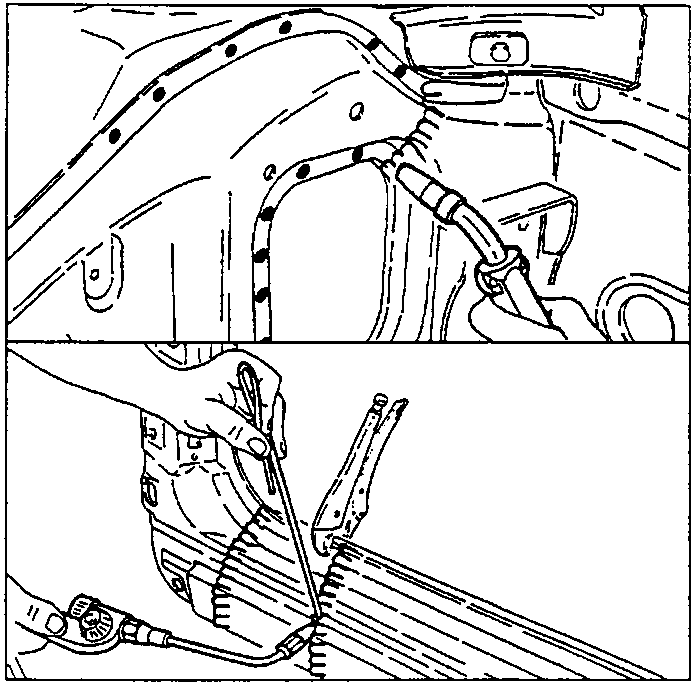

Continuous MIG welding/for seams

[symbol]

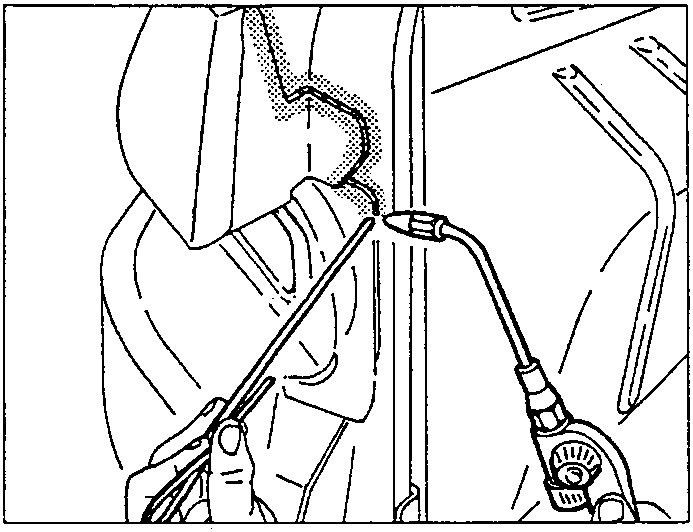

Braze-welding

▬▬▬▬▬▬

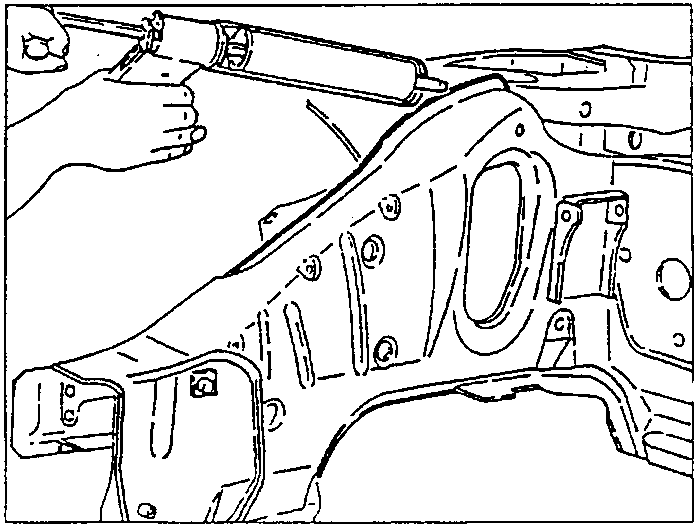

Sealing
