BodyworkAdjusting bonnet and hinges
  1. Remove the hinge.

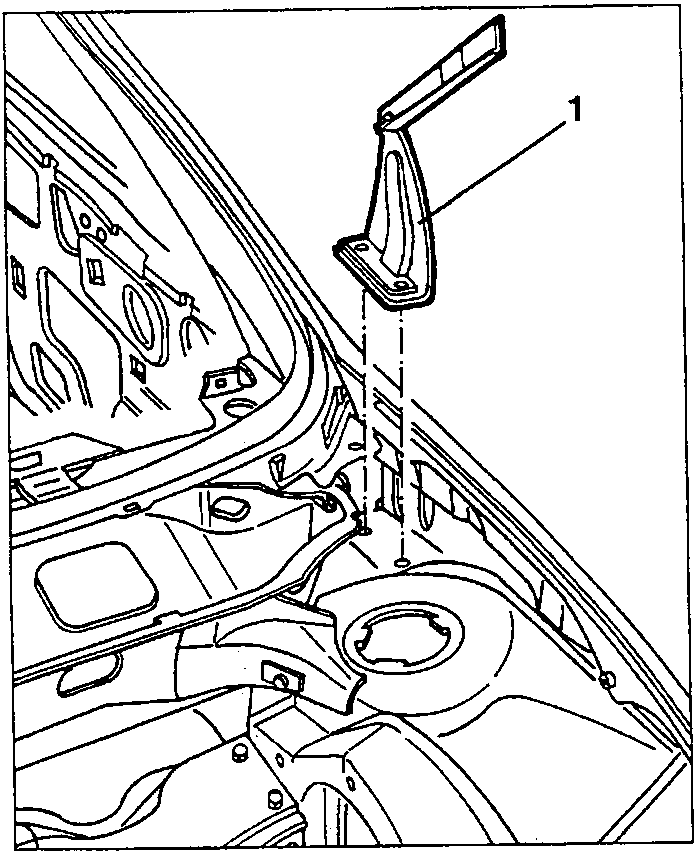

Removing the bonnet hinge (1) from the body

Refit the hinge by reversing the procedure followed for removal and adjust the bonnet as described in the relative paragraph.

ADJUSTING BONNET AND HINGES

  1. Adjust the bonnet for height by acting on the screws securing it to the hinge.

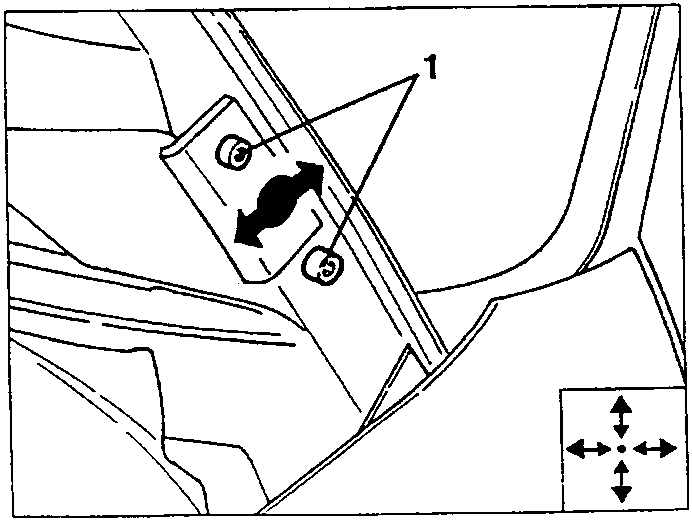

Hinge screws (1) for adjusting the bonnet height
  1. Adjust the bonnet longitudinally and laterally by adjusting the screws securing the hinges to the body checking the alignment of the gaps.

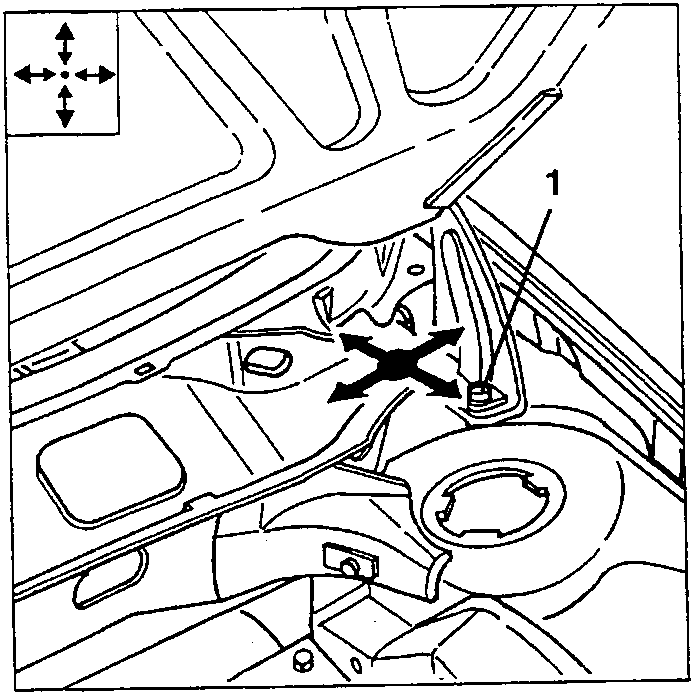

Hinge-to-body screw (1) for longitudinal and lateral bonnet adjustment

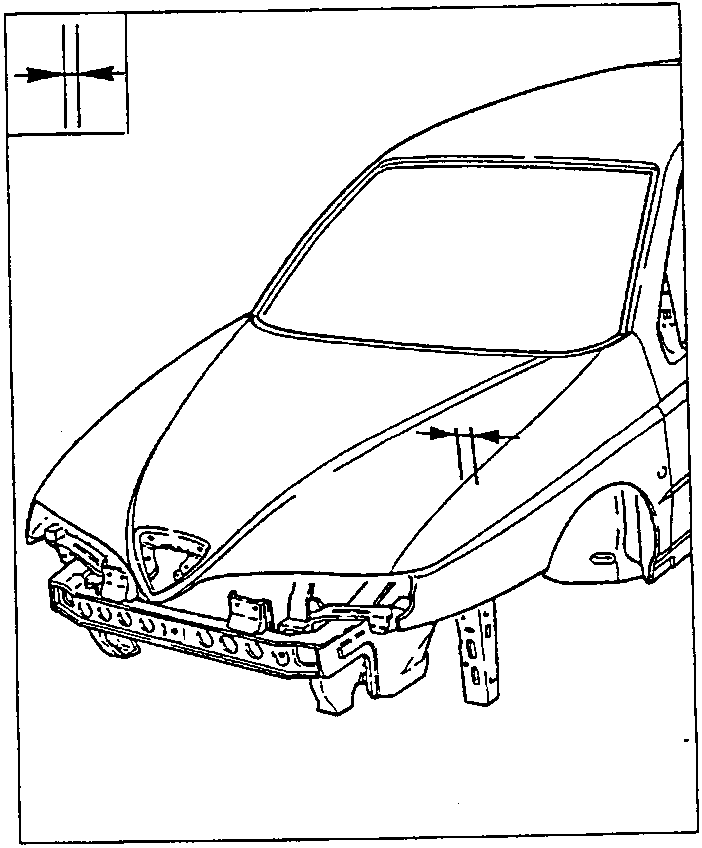

Front of the car showing the bonnet gap to be checked

NOTE: To adjust the bonnet the closure adjustment pin and the anti-vibration buffers must be installed.
