BodyworkDoors

DOORS

REMOVAL AND REFITTING

  1. Remove the pin from the door check strap, half-close the door to back off the pin and then re-open the door.

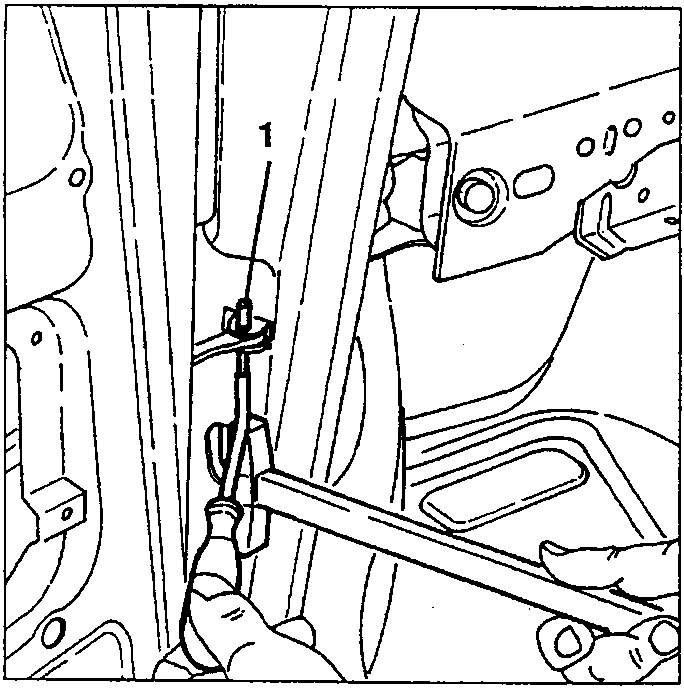

Door hinge area with screw being loosened
  1. Loosen the two screws securing the door to the hinge.

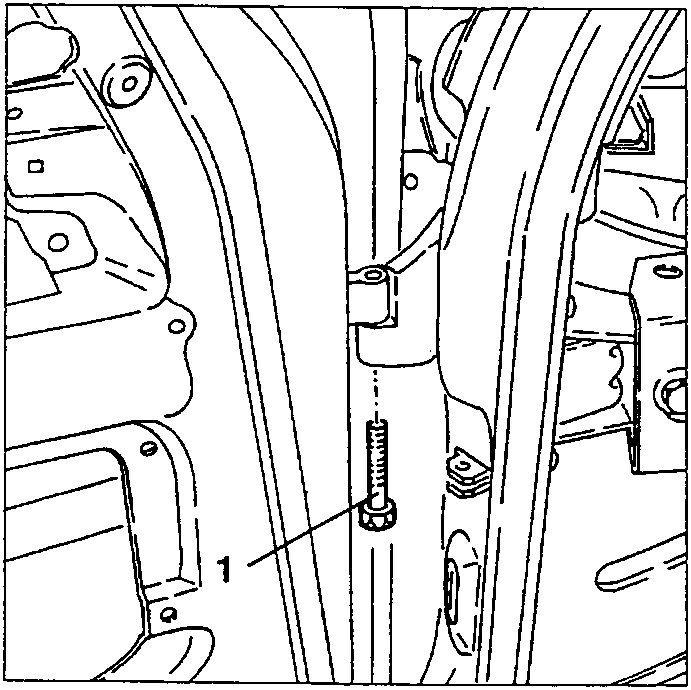

Close-up of hinge screws
  1. Lift the door unit the tapered pins of the hinges can be lifted from their seatings. Remove the door.

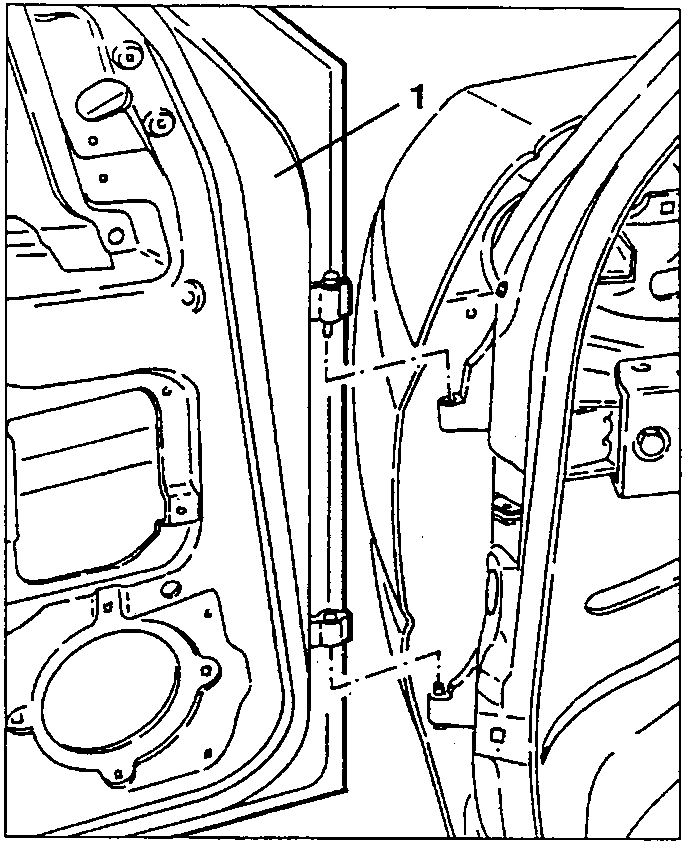

Door in open position showing hinge and check strap

Refit the door by reversing the procedure followed for removal and note the following.

  1. If a new door is being used apply the specified sealant along the inside edge of the door.

NOTE: Check that the sound-proof panels are present inside the door panels.

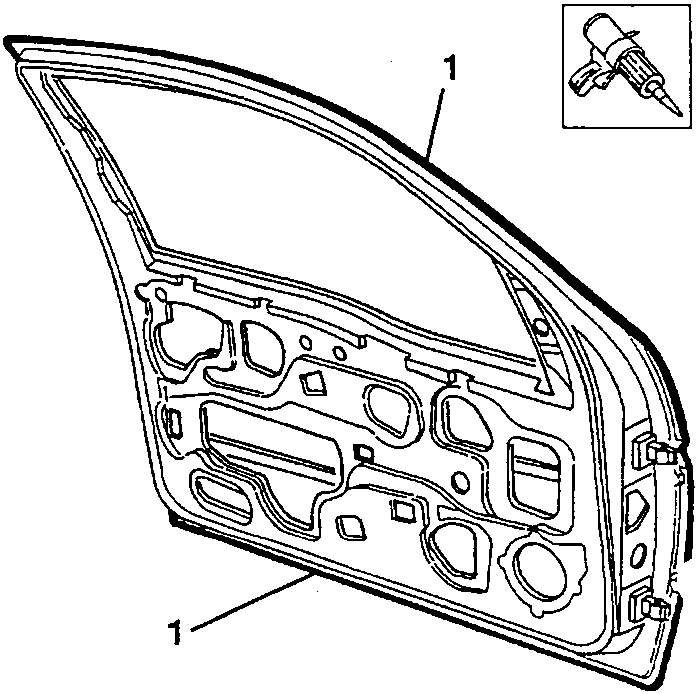

Door panel with sealant application tool shown
