BOOT AND HINGES

REMOVAL/REFITTING

  • Open and suitably support the boot.
  1. Remove the locking pin and withdraw the pins securing the hinge.

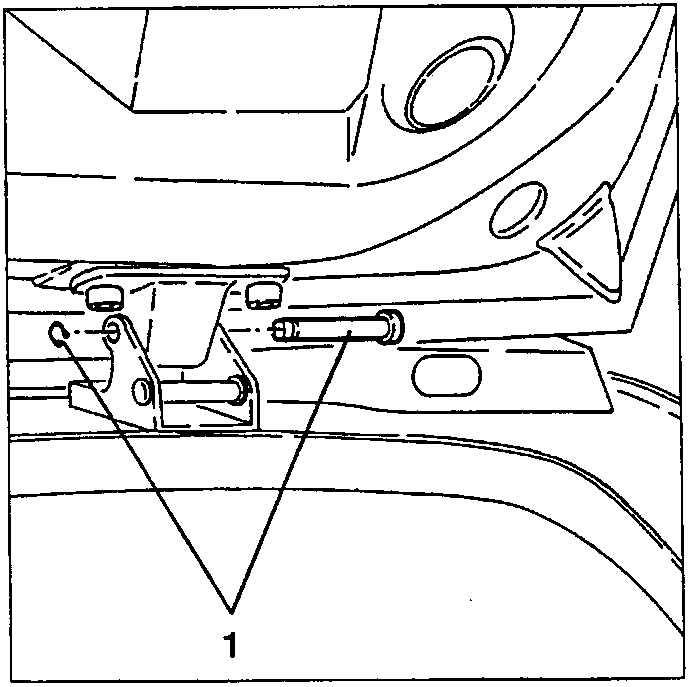

Locking pin and hinge pins (1) of the boot hinge
  1. Remove the boot.

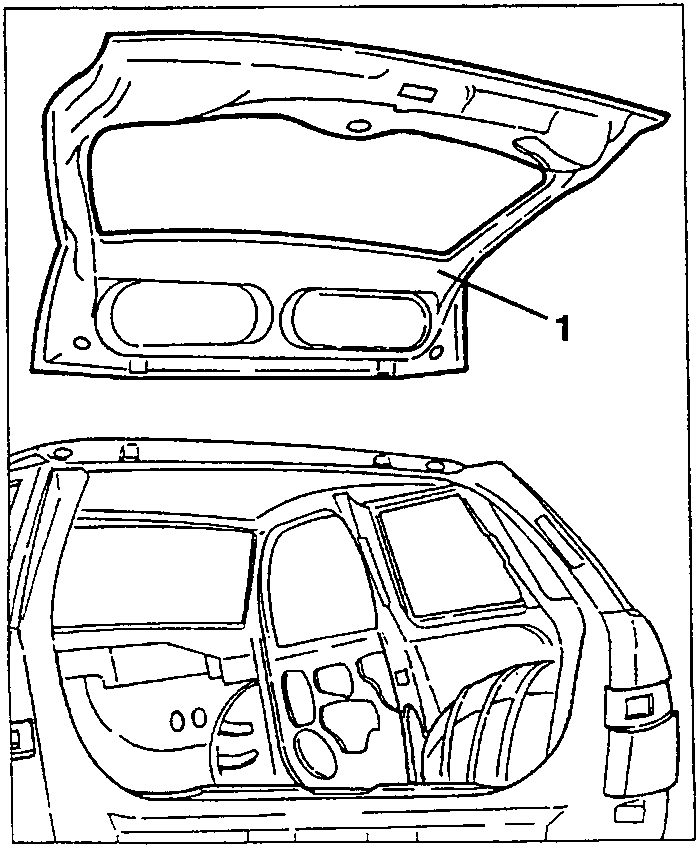

Boot (1) and the rear of the car with the boot removed
  1. If necessary loosen the screws and remove the half-hinge from the boot.

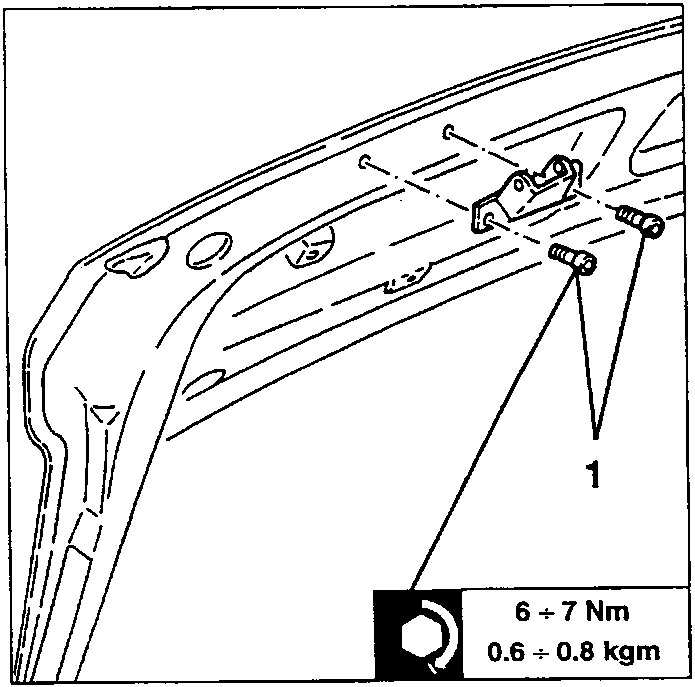

Screws (1) securing the half-hinge to the boot

6 ÷ 7 Nm
0.6 ÷ 0.8 kgm

  1. If necessary loosen the screws and nuts and remove the half-hinge from the body.

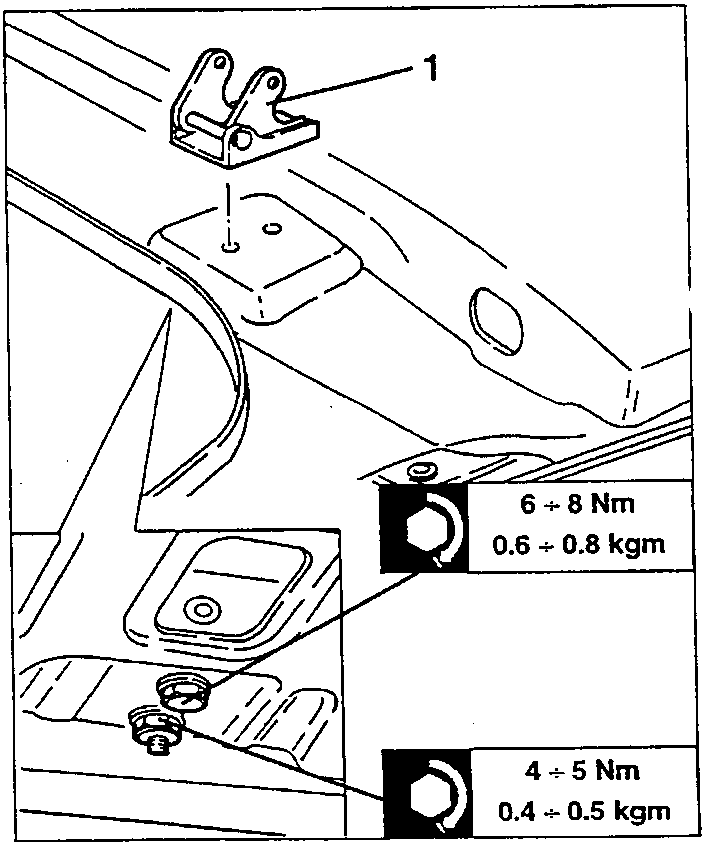

Half-hinge (1) removed from the body, with screws and nuts

6 ÷ 8 Nm
0.6 ÷ 0.8 kgm

4 ÷ 5 Nm
0.4 ÷ 0.5 kgm

Refit the boot by reversing the procedure followed for removal and carry out the following:
