FRONT WING

  1. Loosen the four screws securing the wing to the upper panel.
  2. Loosen the three screws securing the wing to the headlight frame.

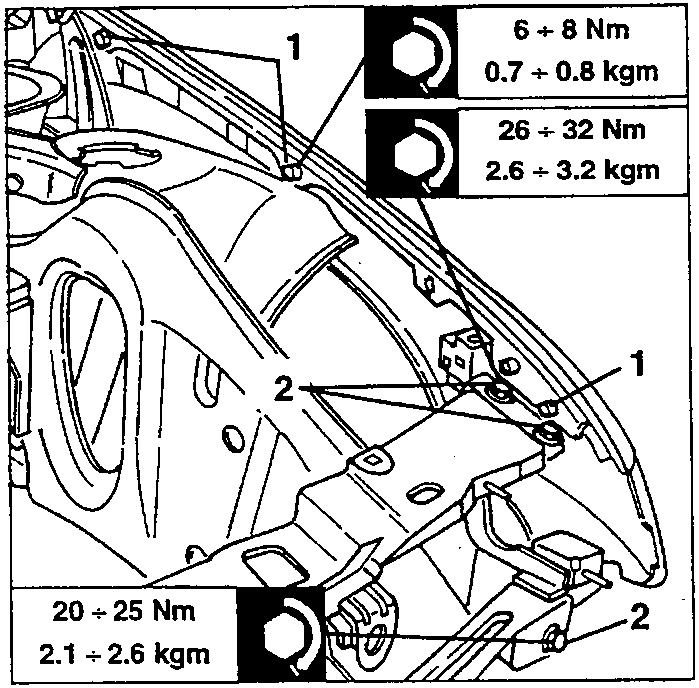

Screws (1) and (2) securing the front wing to the upper panel and headlight frame

6 ÷ 8 Nm
0.7 ÷ 0.8 kgm

26 ÷ 32 Nm
2.6 ÷ 3.2 kgm

20 ÷ 25 Nm
2.1 ÷ 2.6 kgm

  1. Loosen the screw securing the wing to the lateral shelf.

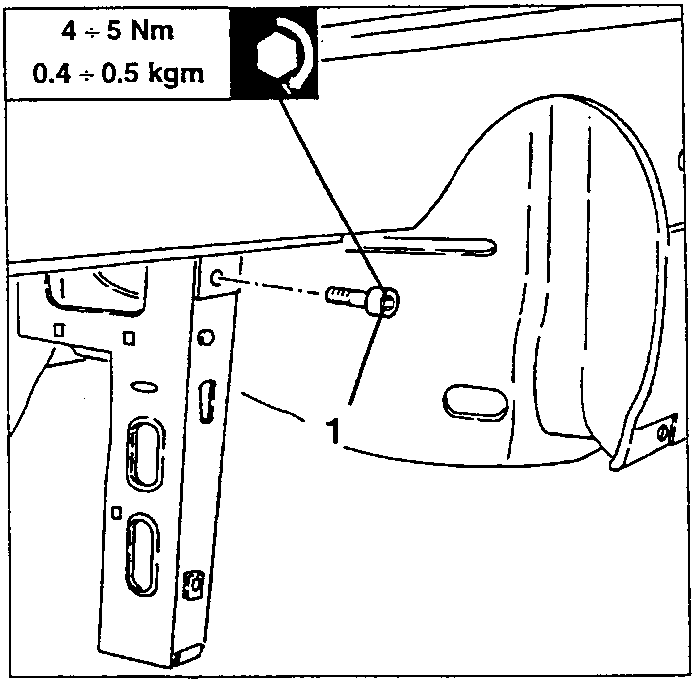

Screw (1) securing the wing to the lateral shelf

4 ÷ 5 Nm
0.4 ÷ 0.5 kgm

  1. Loosen the screw securing the wing to the door sill.

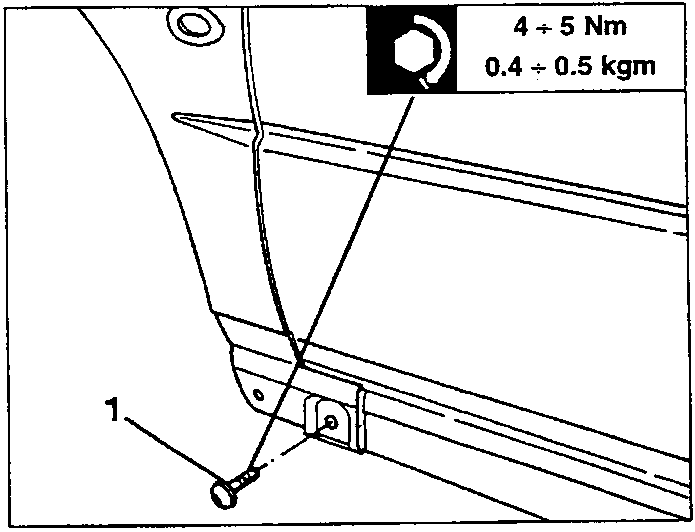

Screw (1) securing the wing to the door sill

4 ÷ 5 Nm
0.4 ÷ 0.5 kgm

  1. Loosen the nut securing the wing to the side panel.

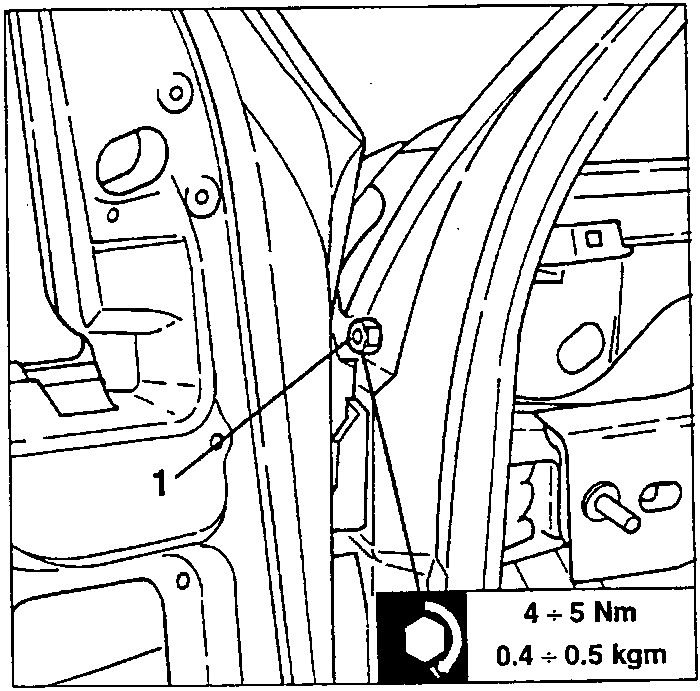

Nut (1) securing the wing to the side panel

4 ÷ 5 Nm
0.4 ÷ 0.5 kgm

  1. Cut the sealant and remove the front wing.

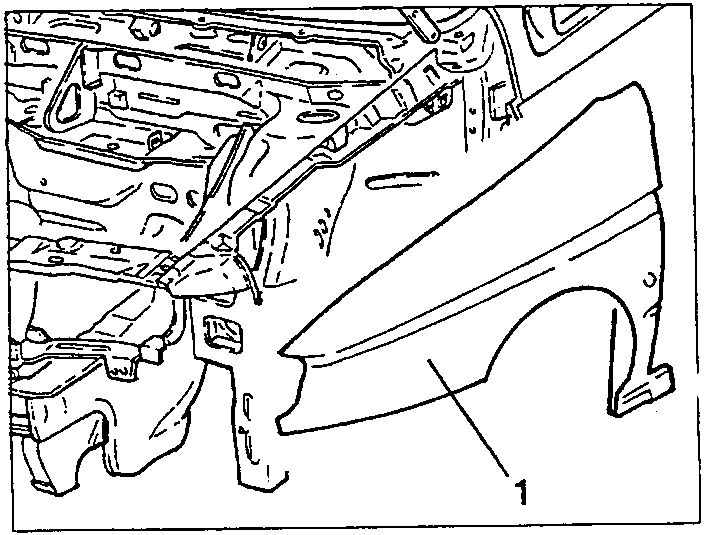

Front wing (1) being removed
