BodyworkFront tow hook

Refit the front wing by reversing the procedure followed for removal and note the following.

  1. If a new front wing is being used, apply the specified sealant along the lines shown in the diagram before fitting.
  2. Once the wing has been fitted apply the specified sealant along the lines indicated in the diagram.

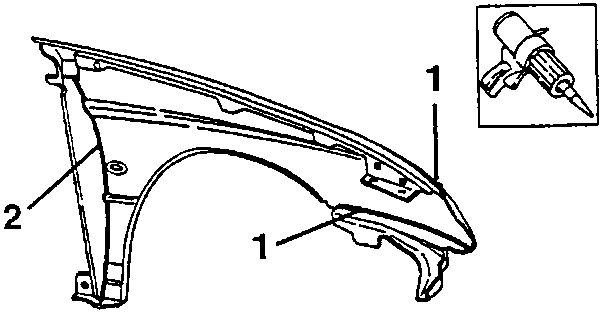

Front wing showing the lines (1) and (2) where sealant is applied
  1. Inspect the blocks and nuts for damage and replace if necessary.

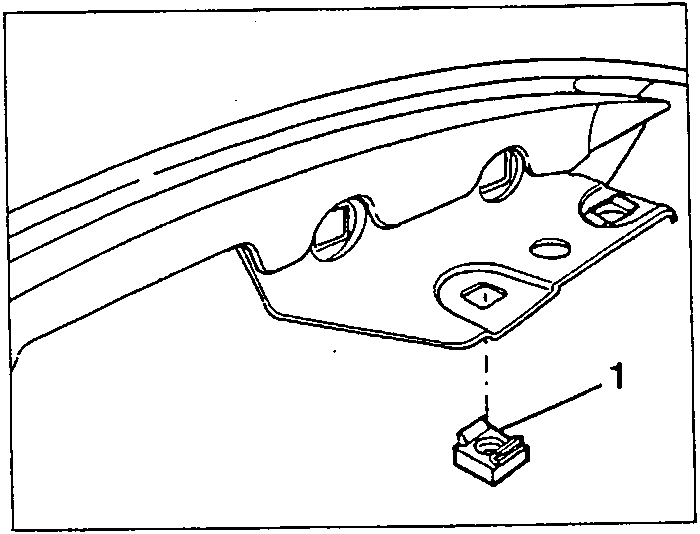

Nut (1) on the wing mounting panel

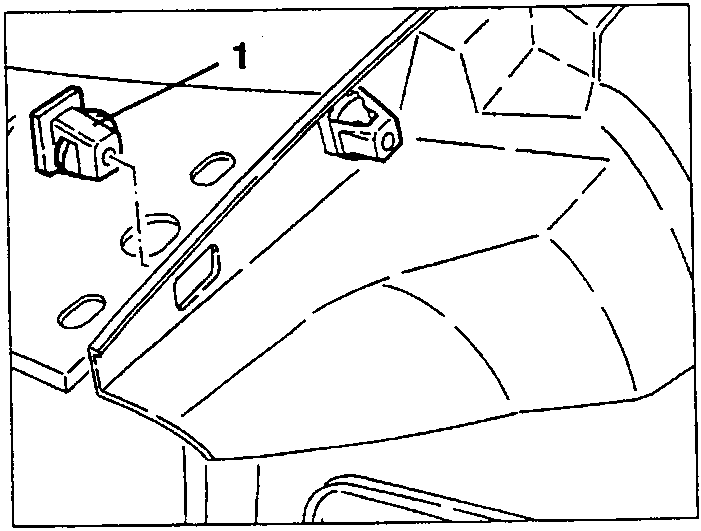

Block (1) on the wing mounting panel
  • Check the alignment and gaps between the front wing and the bonnet and door.

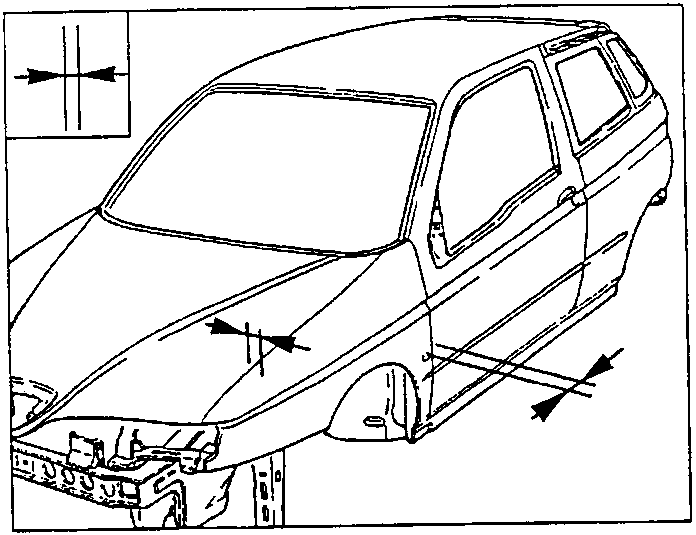

Gaps between the front wing, bonnet and door to be checked

FRONT TOW HOOK

REMOVAL/REFITTING

  1. Loosen the three screws securing and remove the front tow hook to the body.

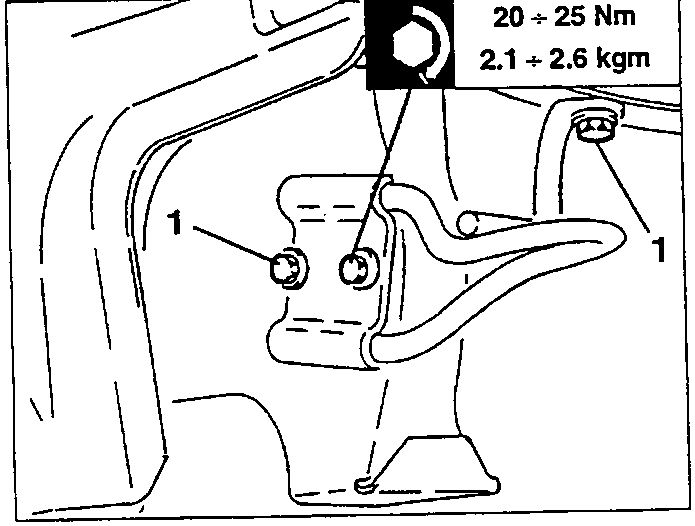

Screws (1) securing the front tow hook to the body

20 ÷ 25 Nm
2.1 ÷ 2.6 kgm

REAR TOW HOOK

REMOVAL/REFITTING

  1. Loosen the two screws and remove the rear tow hook.

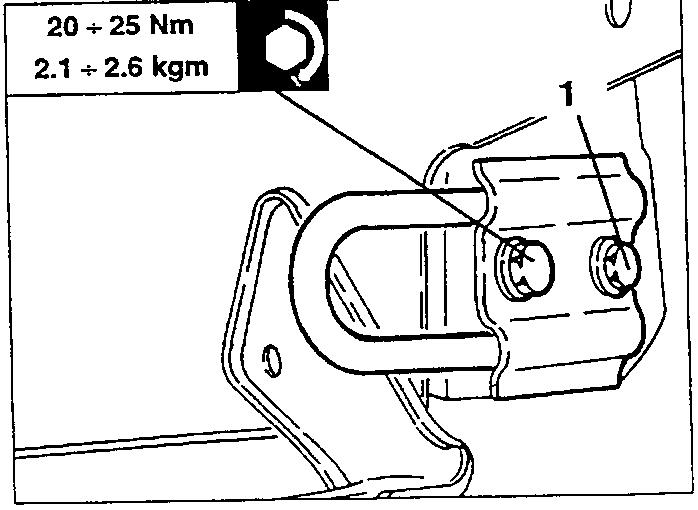

Screws (1) securing the rear tow hook

20 ÷ 25 Nm
2.1 ÷ 2.6 kgm
