DASHBOARD SUPPORT CROSSMEMBER

REMOVAL/REFITTING

  1. Loosen the two side screws securing the dashboard support crossmember.

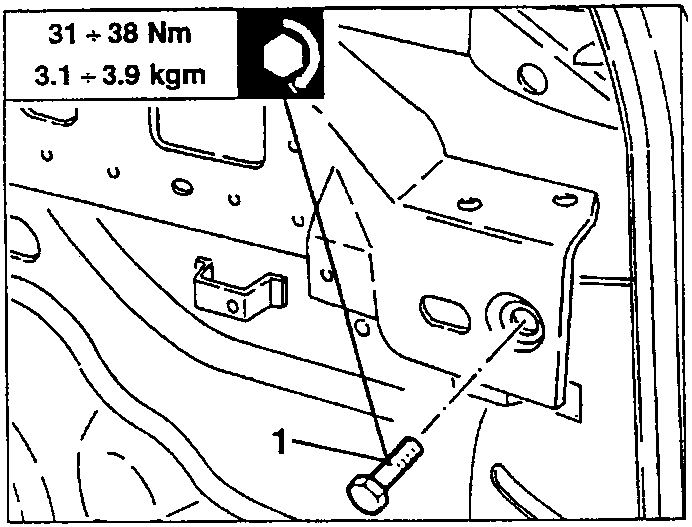

Side screw (1) securing the dashboard support crossmember

31 ÷ 38 Nm
3.1 ÷ 3.9 kgm

  1. Loosen the two upper screws securing the dashboard support crossmember.

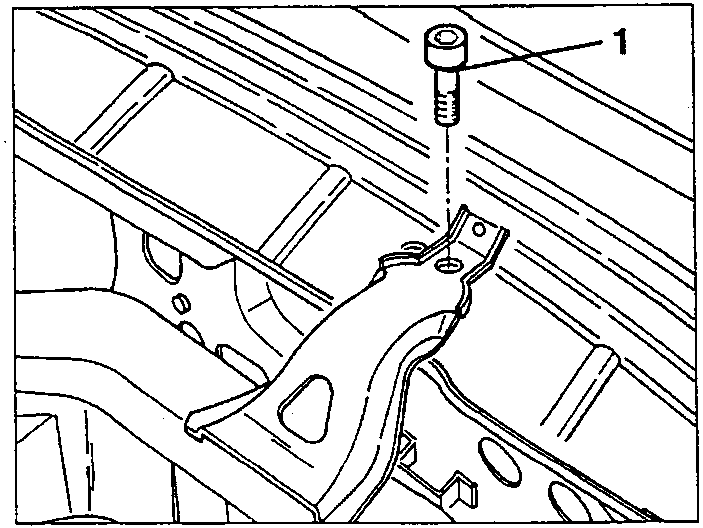

Upper screw (1) securing the dashboard support crossmember
  1. Remove the dashboard support crossmember.

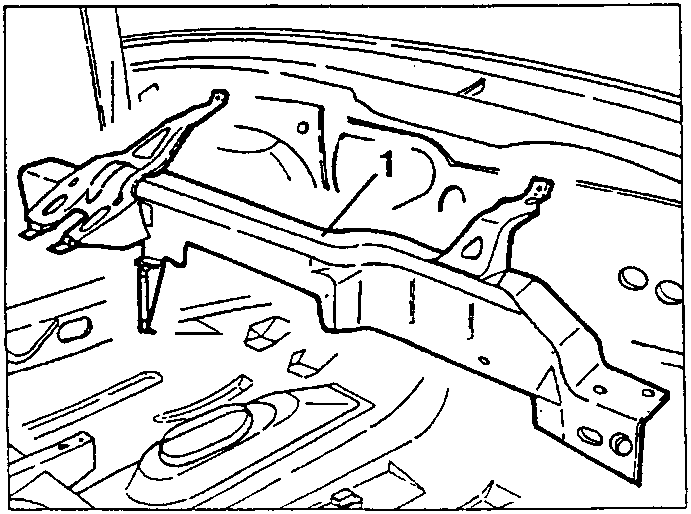

Dashboard support crossmember (1) removed

When refitting, before tightening the screws securing the crossmember, position the centering pin it its slot.

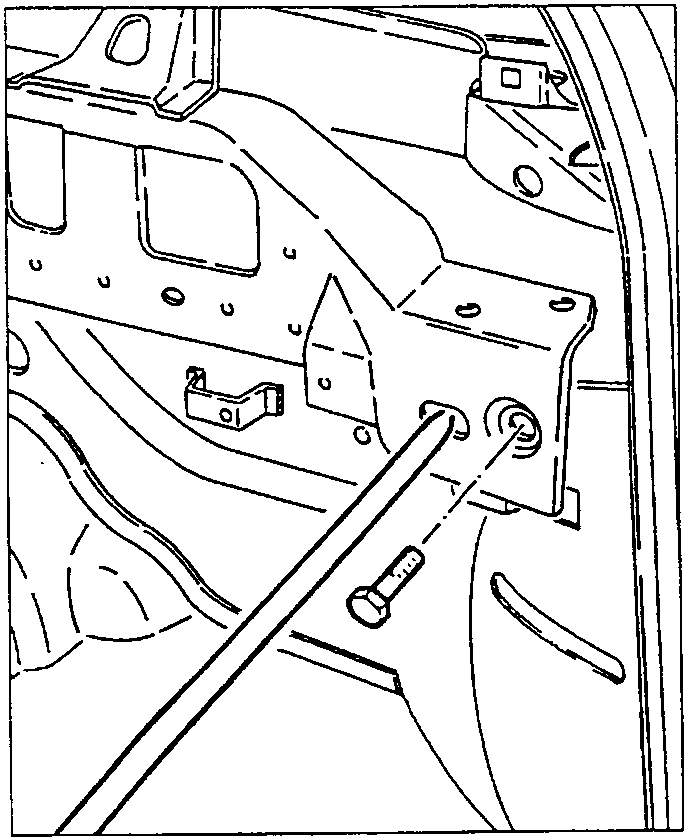

Centering pin of the crossmember and its slot

BATTERY SUPPORT CROSSMEMBER (Only for Boxer versions)

REMOVAL/REFITTING

  1. Loosen the six screws and remove the battery support crossmember.

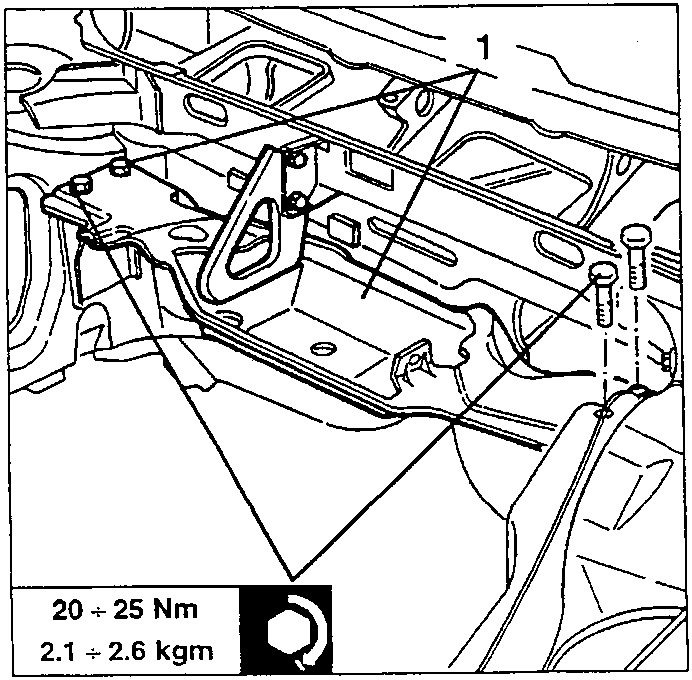

Screws (1) securing the battery support crossmember

20 ÷ 25 Nm
2.1 ÷ 2.6 kgm
