Hinges

HINGES

REMOVAL/REFITTING

• Remove the door (see specific paragraph)

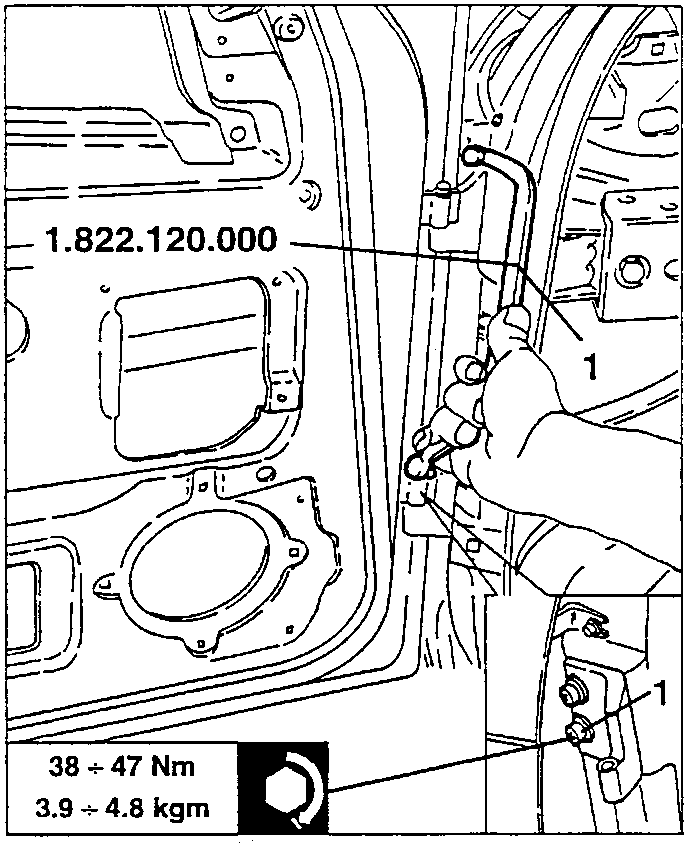

1. Using tool N° 1.822.120.000, loosen the two screws and remove the hinge.

38 ÷ 47 Nm
3.9 ÷ 4.8 kgm

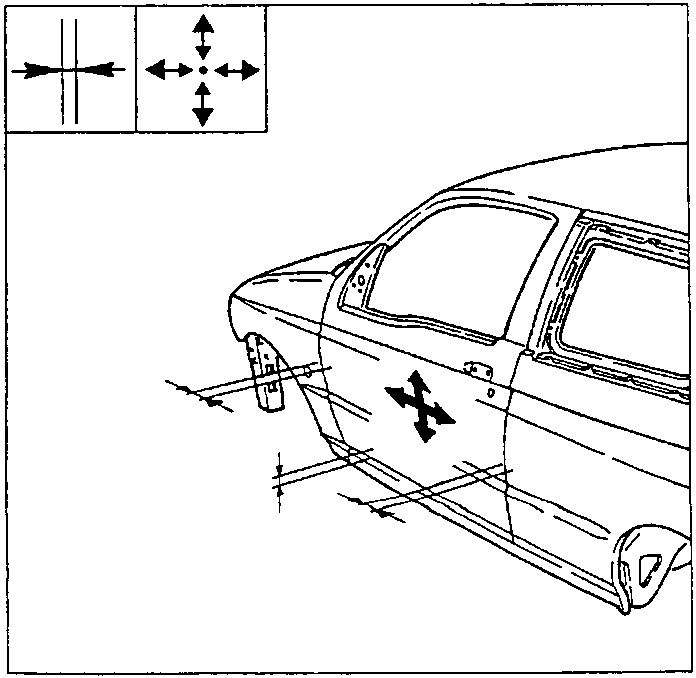

• Adjust the door longitudinally and in height checking that it mates correctly and the lights.

NOTE: Adjust the door maintaining the screws fastening the hinges to the door tightened in package.

• If necessary position shims under the hinges and under the door catch.

NOTE: To adjust the door the relative gaskets, lock and catch must be fitted.

Refit the hinges by reversing the procedure followed for removal and adjust the door as described in the relative paragraph.

ADJUSTING DOORS AND HINGES

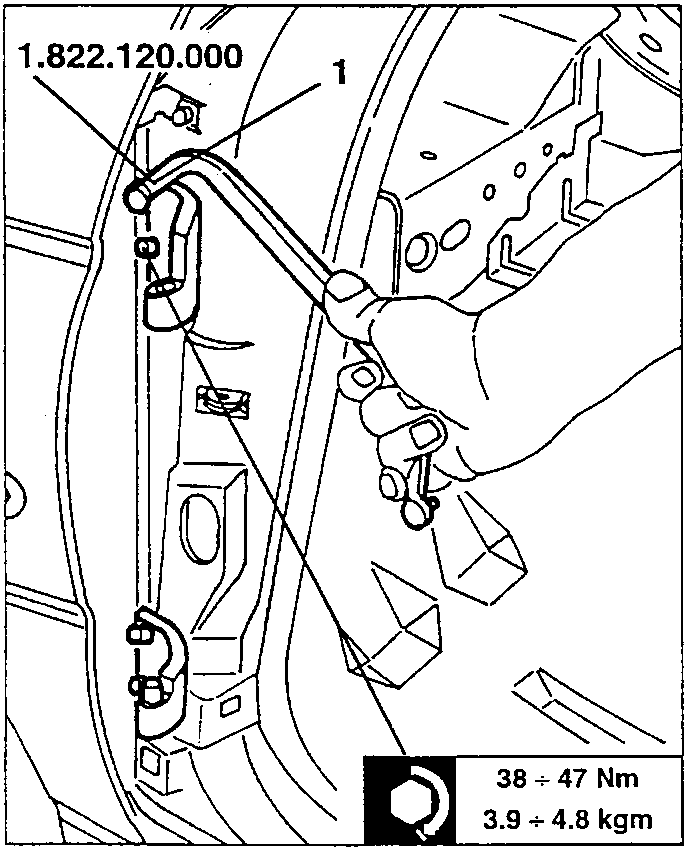

1. Using tool no. 1.822.120.000, slacken the screws fastening the hinges to the pillar.

38 ÷ 47 Nm
3.9 ÷ 4.8 kgm
