HEADLIGHT CROSSRAIL AND FRAME

REMOVAL/REFITTING

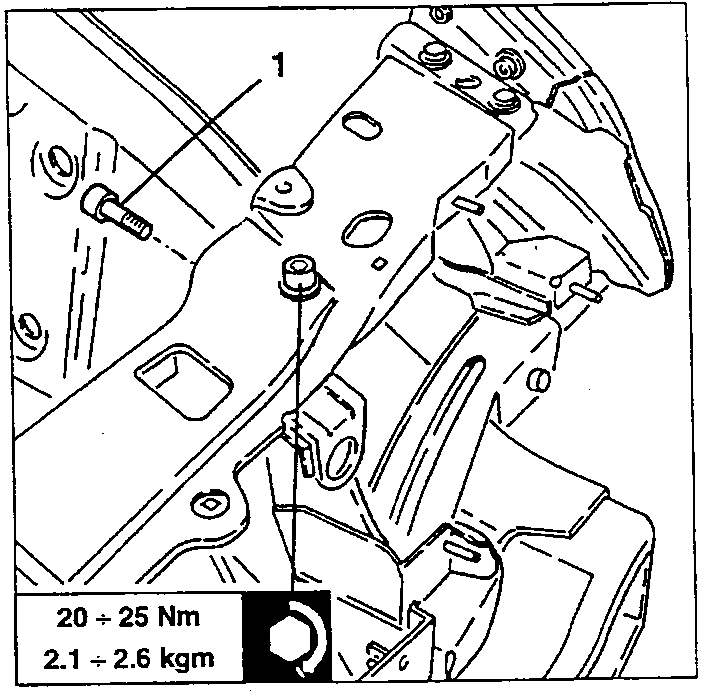

1. Loosen the side screws securing the crossrail.

20 ÷ 25 Nm
2.1 ÷ 2.6 kgm

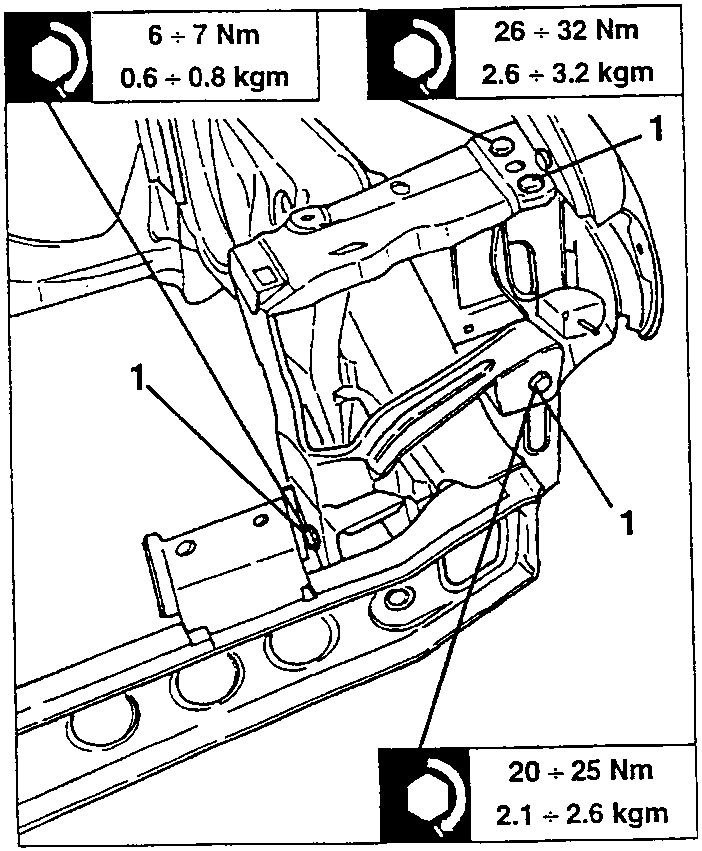

1. Loosen the screws securing the headlight frame.

6 ÷ 7 Nm
0.6 ÷ 0.8 kgm

26 ÷ 32 Nm
2.6 ÷ 3.2 kgm

20 ÷ 25 Nm
2.1 ÷ 2.6 kgm

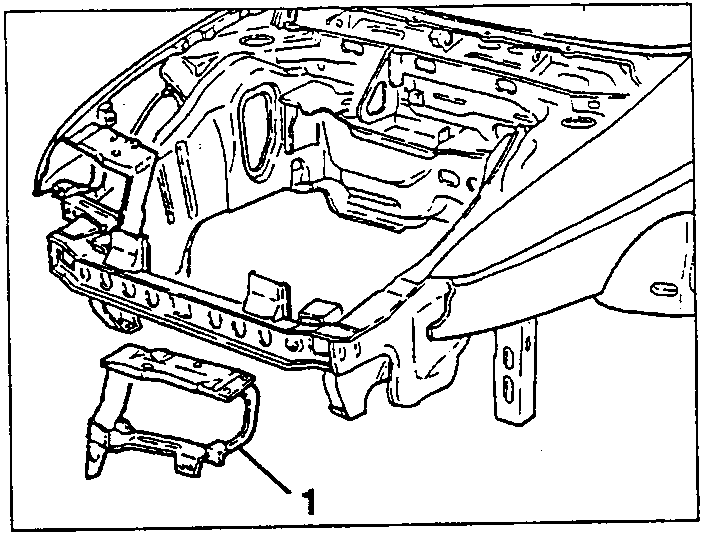

1. Remove the headlight frame.

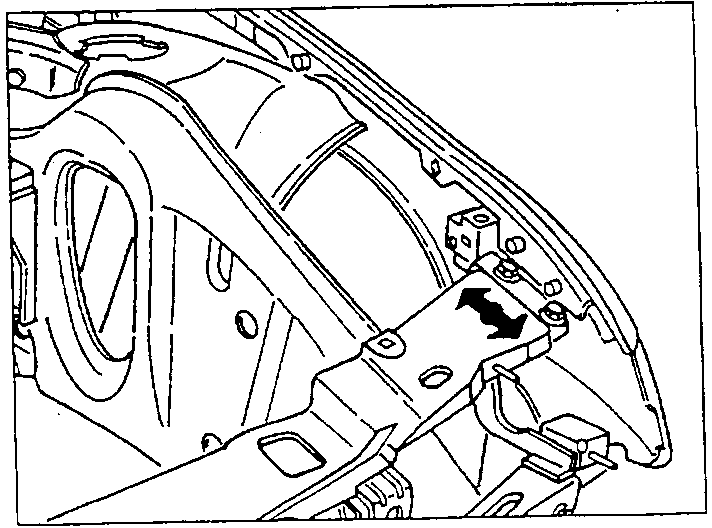

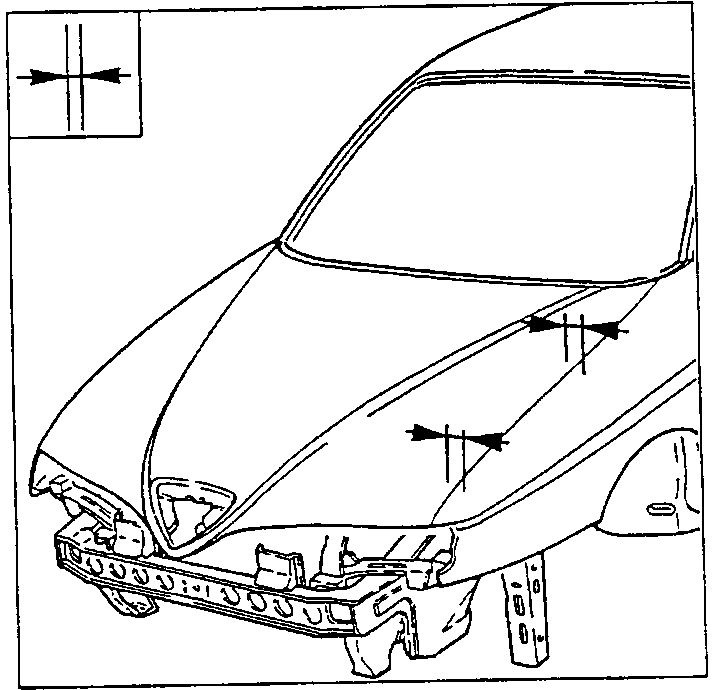

When refitting position the headlight frame and check the alignment and gaps between the bonnet and wing and adjusting the screws indicated in the diagram if necessary.
