BONNET

REMOVAL/REFITTING

  • Open and suitably support the bonnet.

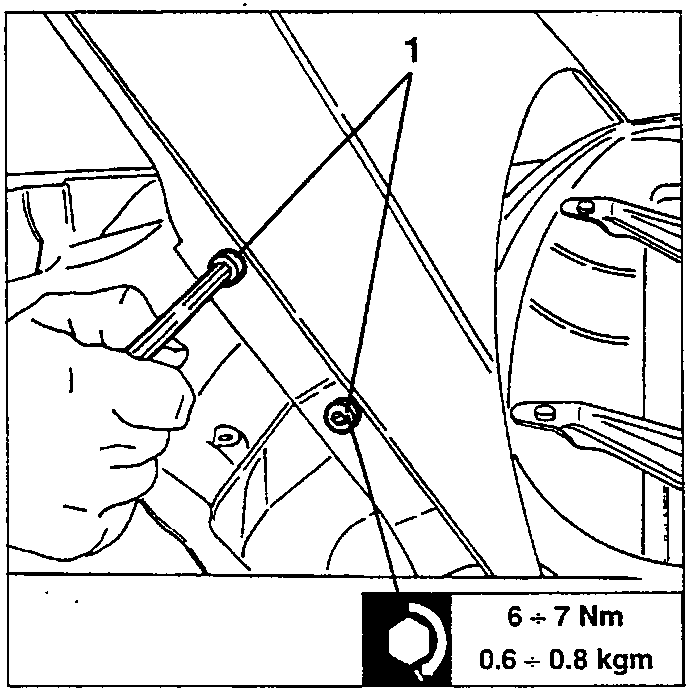

  1. Loosen the two screws, on each side, securing the bonnet to the hinges.
Hand loosening a screw on a bonnet hinge with a socket wrench.

6 ÷ 7 Nm
0.6 ÷ 0.8 kgm

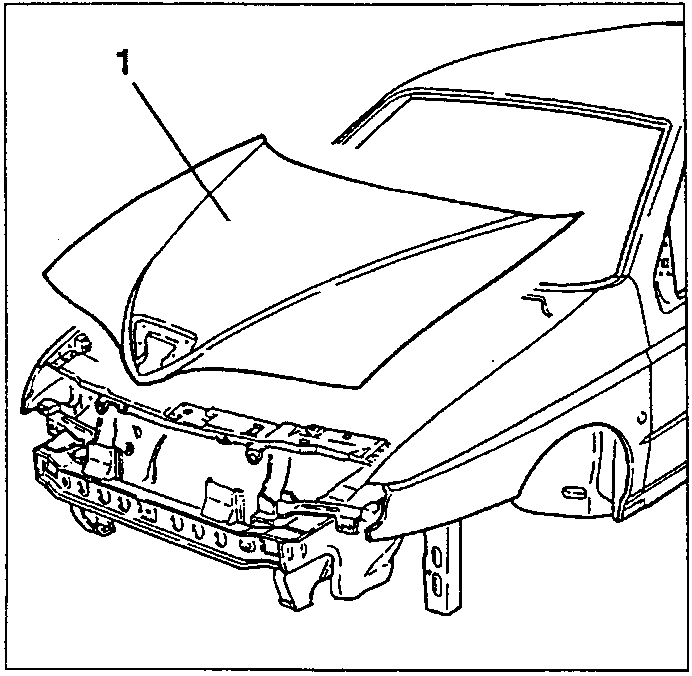

  1. Remove the bonnet.
Car with bonnet open and supported by jack stands.

Refit the bonnet by reversing the procedure followed for removal and note the following.

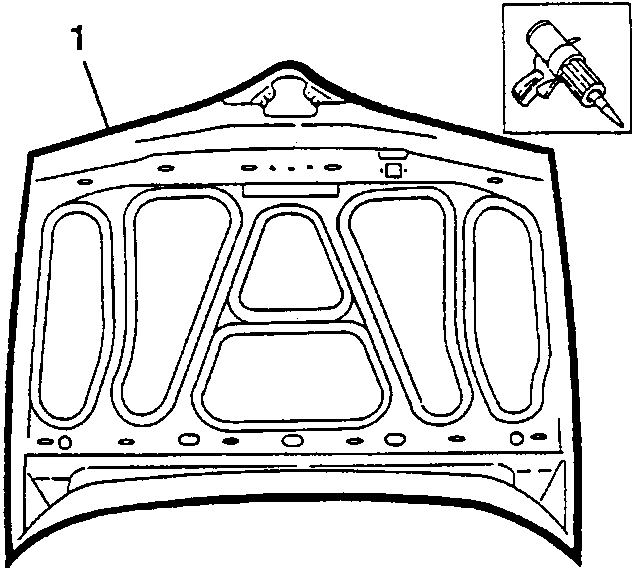

  1. If a new bonnet is being used apply the specified sealant around the inner edges of the bonnet.
Bonnet with sealant applicator shown near the inner edge.
  • If necessary adjust the bonnet as described in the relative paragraph.

BONNET HINGES

REMOVAL/REFITTING

  • Remove the bonnet (see specific paragraph).

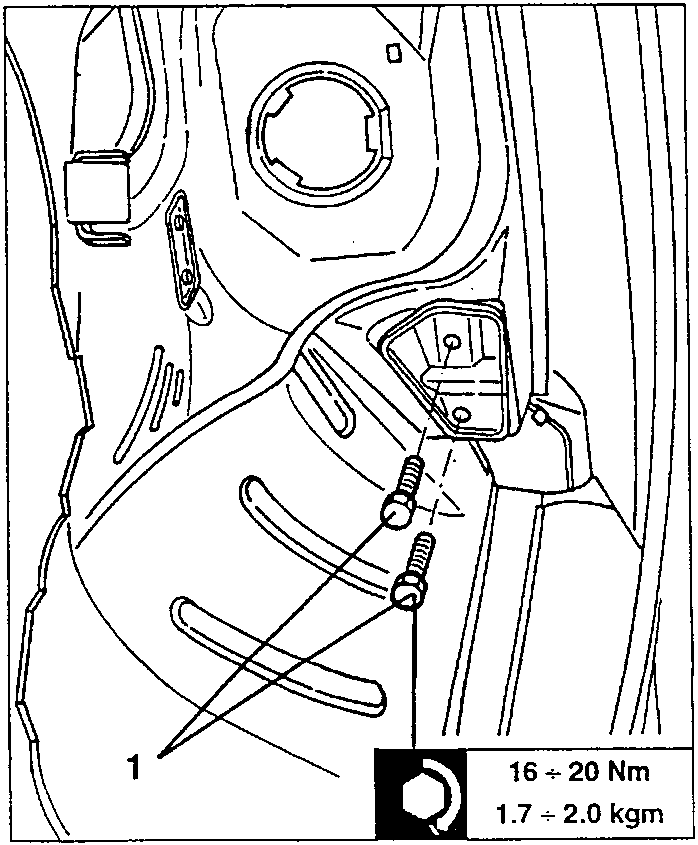

  1. Working from the wheel housing, loosen the screws securing the hinge to the body.
Close-up of hinge screws being loosened with a socket wrench.

16 ÷ 20 Nm
1.7 ÷ 2.0 kgm
