BodyworkAdjusting the boot

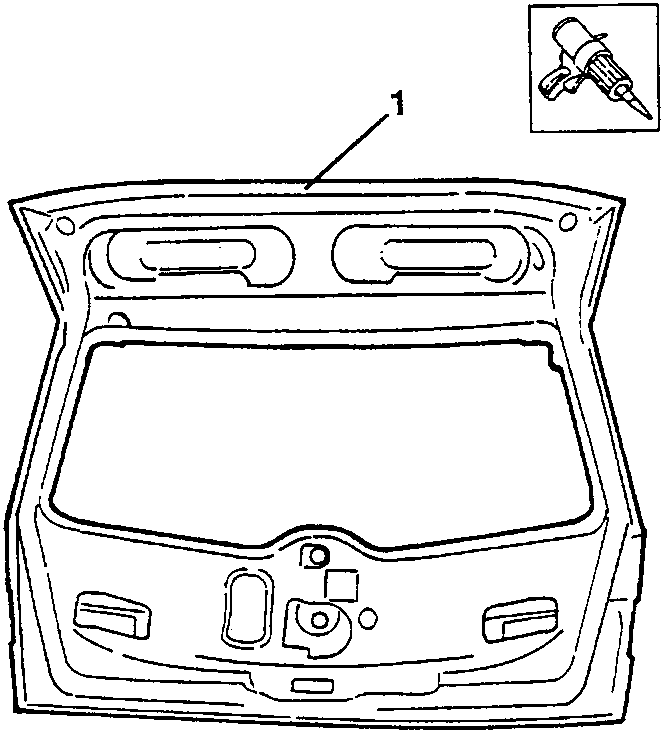

  1. If a new boot is being used apply the specified sealant along the internal edge of the boot before painting it.
Boot with the internal edge (1) where sealant is applied

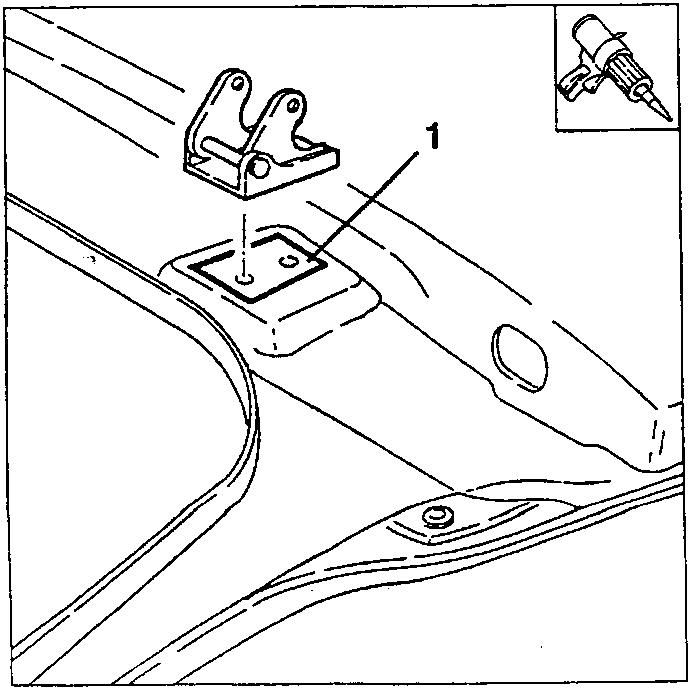

  1. Apply the specified sealant when installing between the boot hinge and the body.
Sealant applied between the boot hinge (1) and the body

ADJUSTING THE BOOT

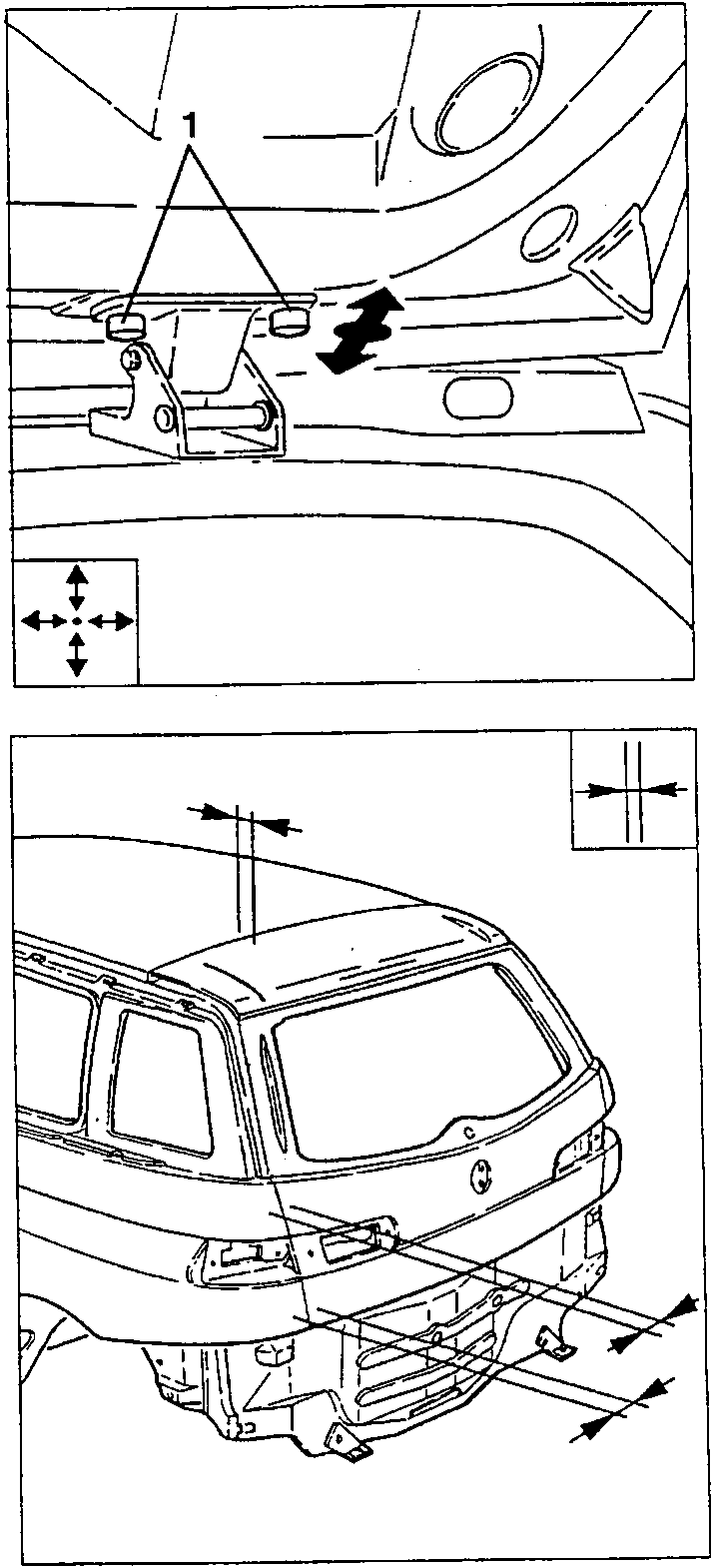

  1. Adjust the boot longitudinally by acting on the screws securing it to the hinge and check the alignment of the gaps.
Hinge screws (1) for longitudinal boot adjustment, and the gaps to be checked at the rear of the car

NOTE: To adjust the boot correctly the gaskets, locks and telescopic support must be fitted.
