Engine – mechanical (Twin Spark)Removal · page 10 of 15

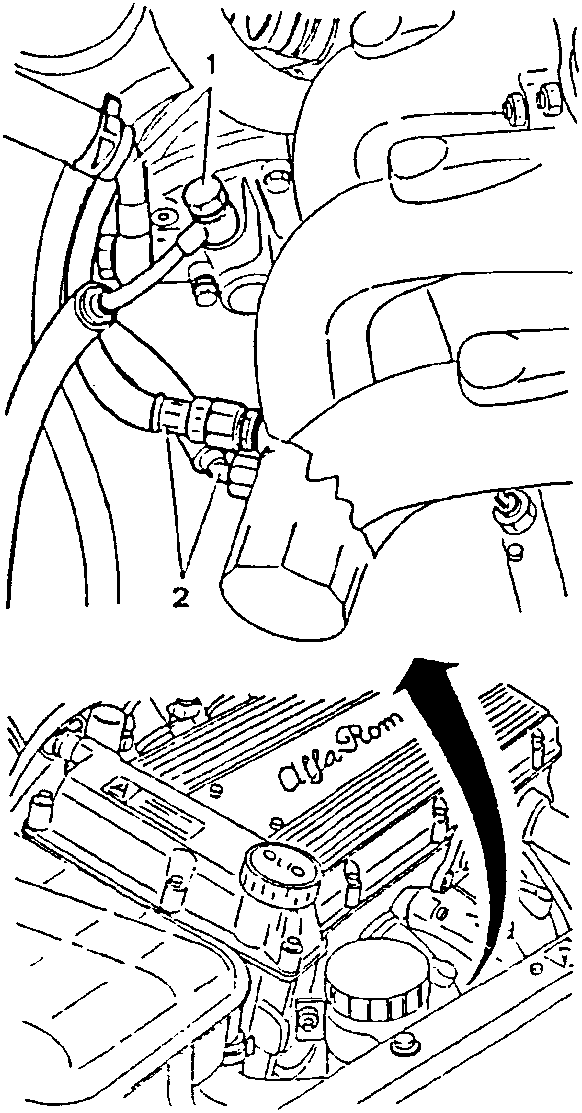

1 Disconnect the oil to power steering pump intake and delivery unions.

• Drain off the engine oil (see GROUP 00).

2. Specific procedure for AR67202 (1995 c.c.) engines. Disconnect the engine oil to relative cooling radiator intake and delivery unions from the oil filter support.

1. Part 1
2. Part 2

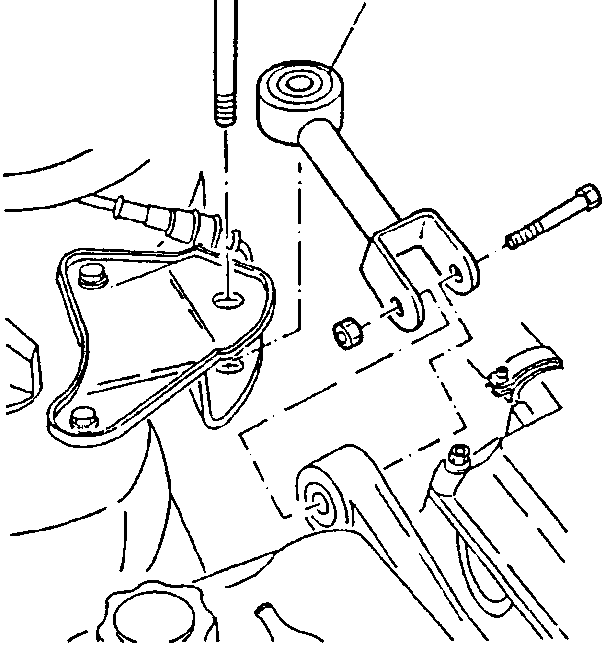

1. Remove the engine damping rod.

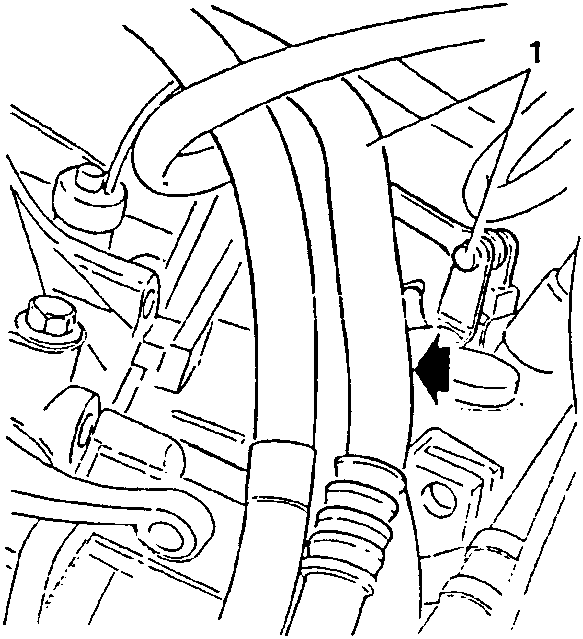

1. Move the air conditioning hoses in order to disconnect the upper gears selection rod.
