Engine – mechanical (Twin Spark)Removal · page 9 of 15

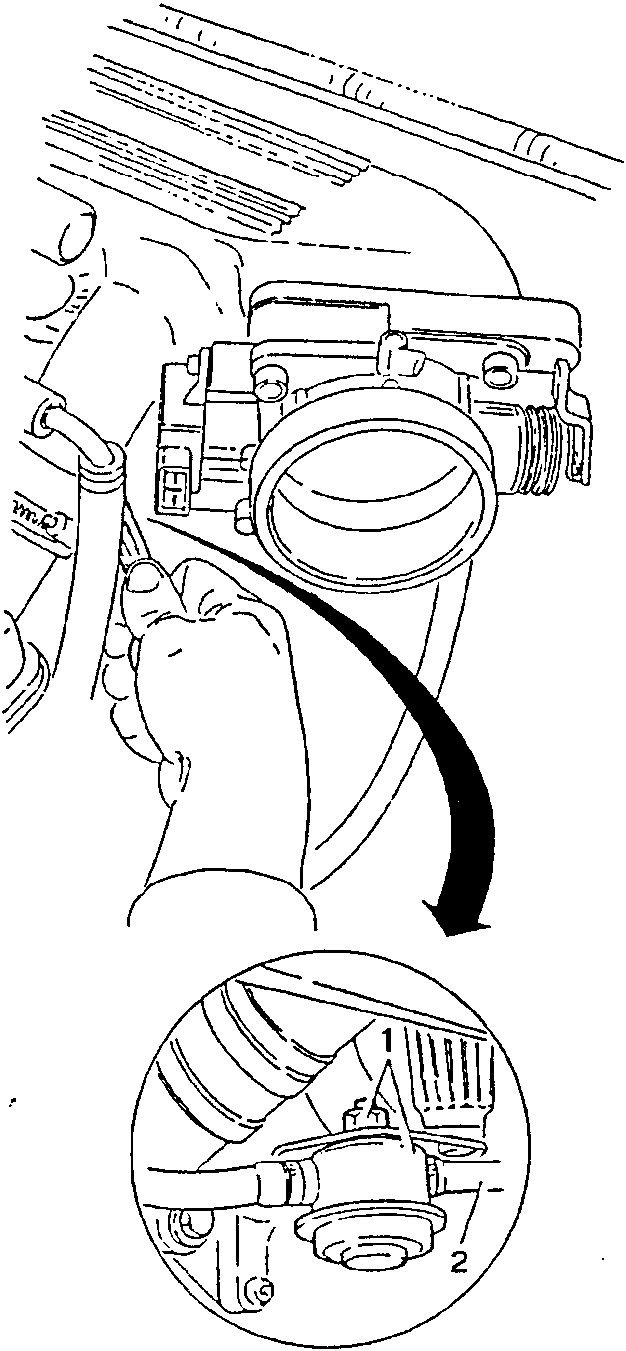

  1. Unscrew the nut securing the impulse dashpot the support bracket.
  2. Disconnect the fuel delivery hose from the impulse dashpot.
Hand unscrewing a nut on an impulse dashpot, with a close-up inset showing two parts labeled 1 and 2
  1. Disconnect the electrical connection from the r.p.m. and timing sensor.
Engine view showing a hand disconnecting an electrical connector near an oil cap

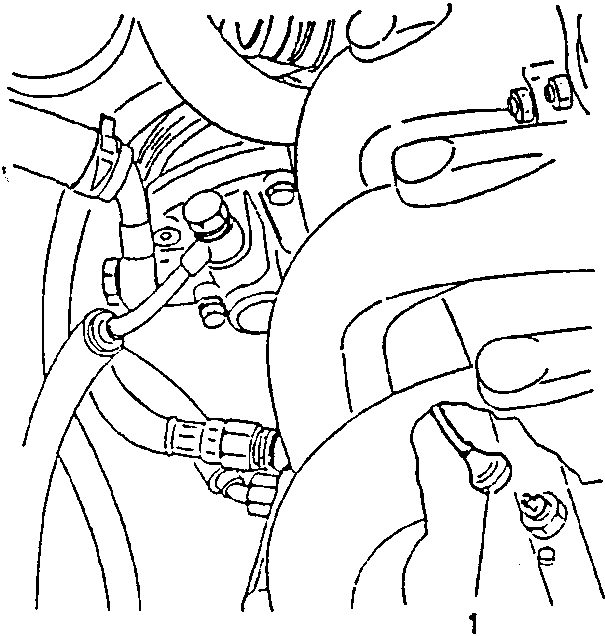

  1. Disconnect the electrical connection from the engine oil minimum pressure warning light sensor.
Hands disconnecting a hose and a sensor on an engine block
