Engine – mechanical (Twin Spark)Removal · page 15 of 15

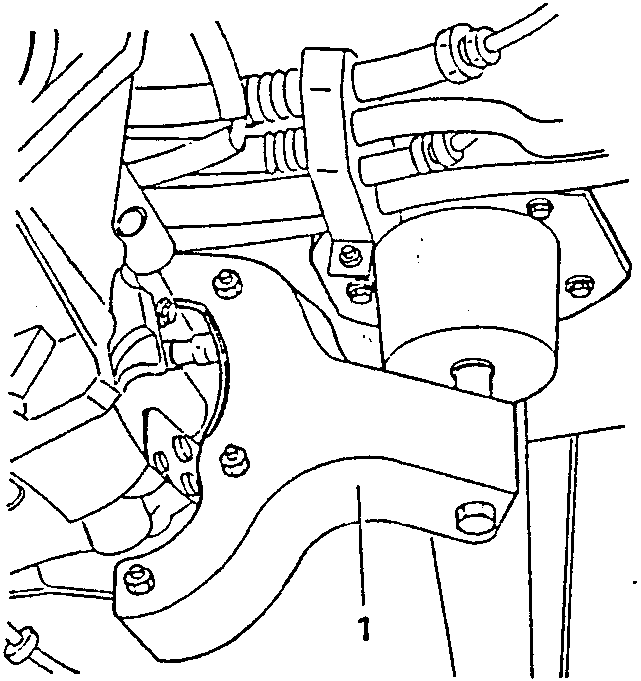

- Remove the gearbox side engine support.

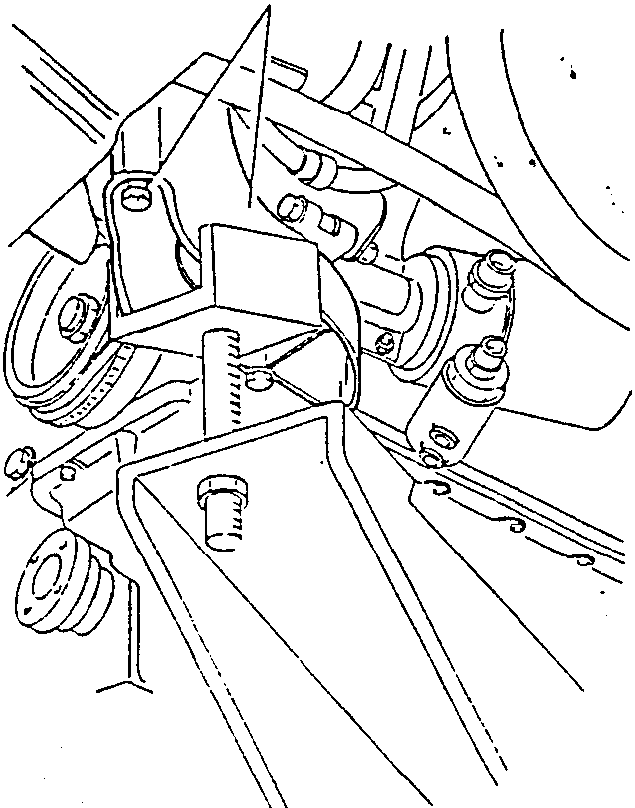

- Remove the screw securing the engine front support.
CAUTION
Disconnect the electrical cables from any clamps and move them away from the engine to avoid damaging them when the engine is removed.

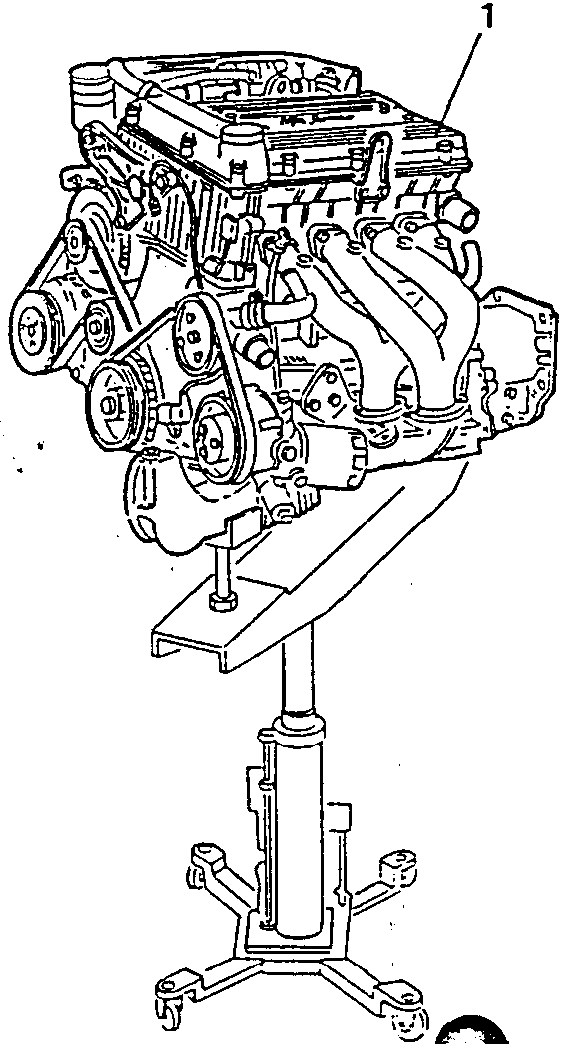

- Lower the jack and remove the engine from the engine compartment.
CAUTION
When lowering the jack check that no hoses or cables are still attached to the vehicle.
CAUTION
Pay close attention to avoid damaging components.
