Alfa Romeo 155 Factory Service Manual (1992-1998)03 · Engine – mechanical (Twin Spark)
03 · Engine

Removal (page 3 of 15)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Removal
Engine – mechanical (Twin Spark)Removal · page 3 of 15

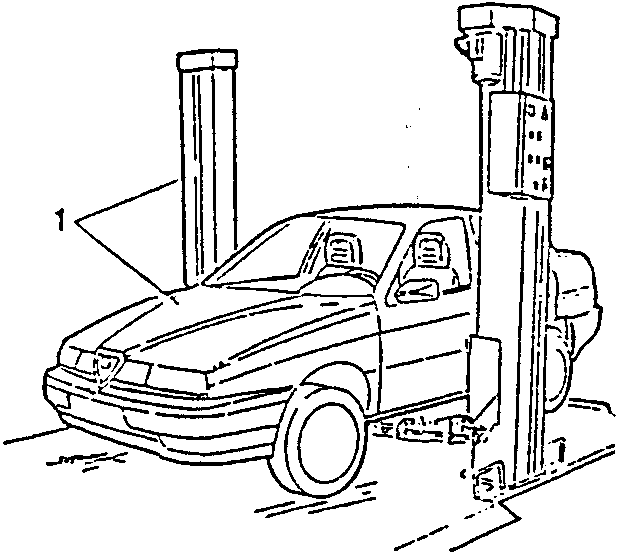

  1. Raise the vehicle on the lift.

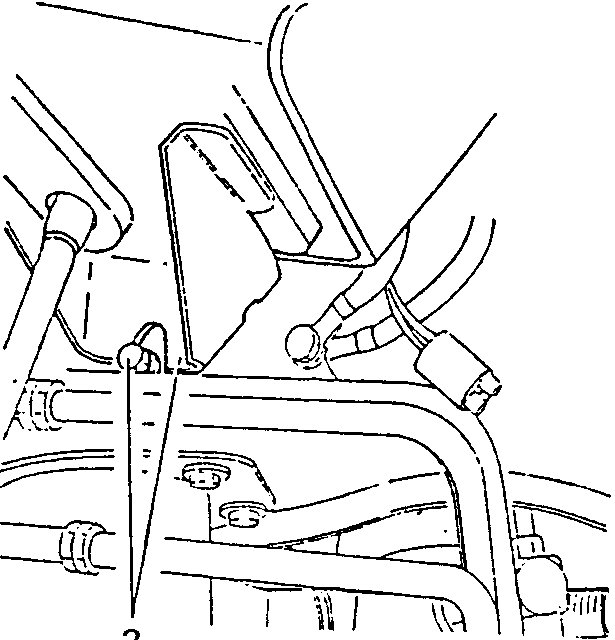

  2. Loosen the lower screw securing the battery support to the vehicle body.
Vehicle raised on a lift with an arrow pointing down
Close-up of a screw being loosened on a vehicle's engine bay

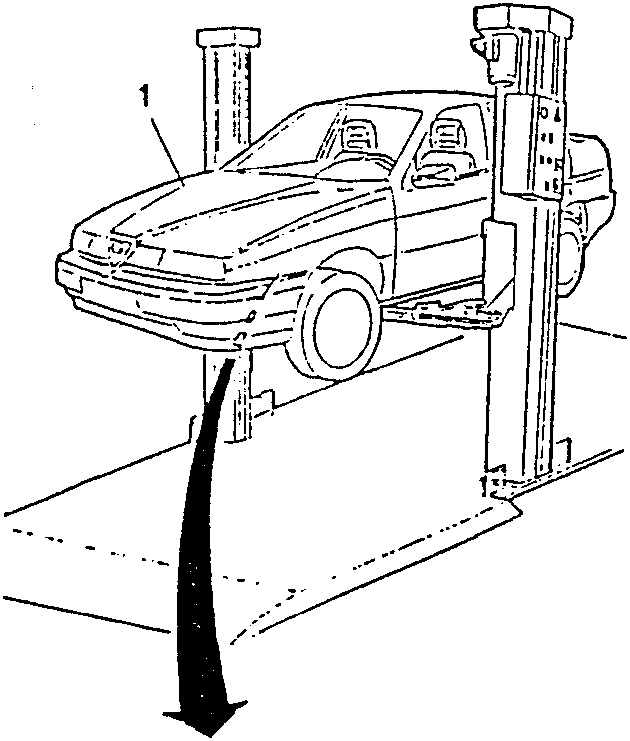

  1. Lower the vehicle.
Vehicle lowered from a lift
  • Unscrew the remaining screws securing the battery support to the body and raise it slightly.

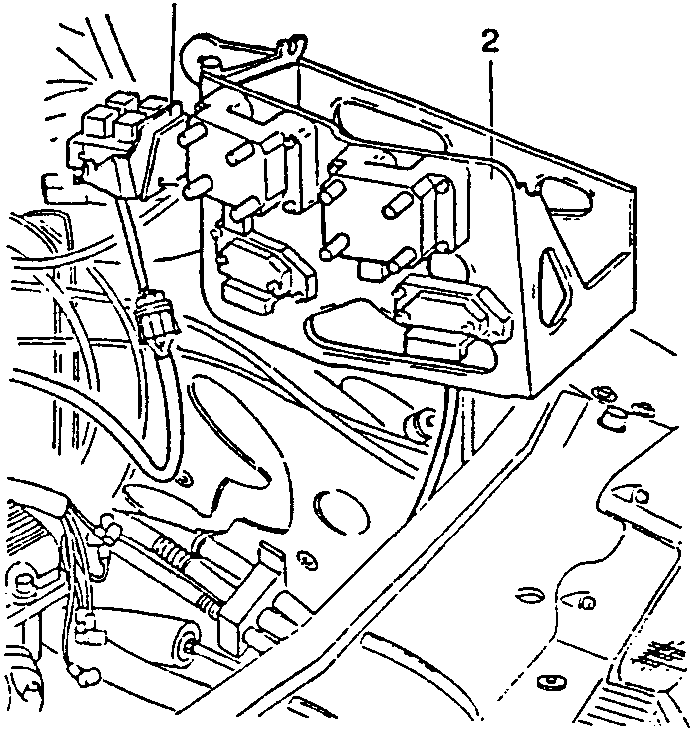

  1. Remove the relay box bracket from the battery by unscrewing the two screws.
  2. Remove the battery support together with the coils and ignition modules.
Diagram showing relay box bracket and battery support with coils and ignition modules
