Engine – mechanical (Twin Spark)Removal · page 14 of 15
  • Disconnect the electrical connections from the starter motor and alternator.

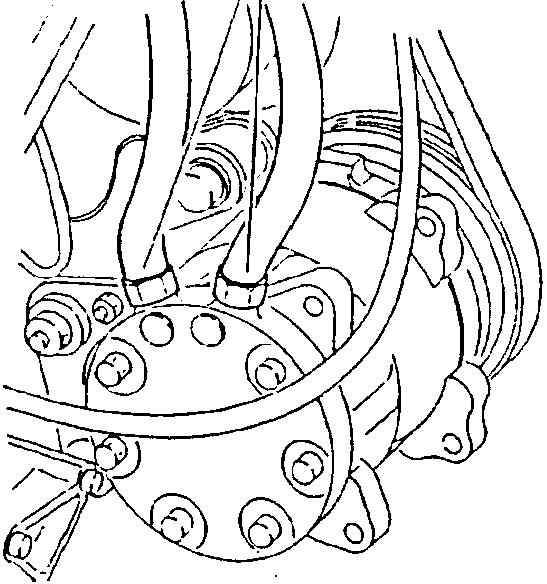

  1. Disconnect the intake and delivery unions from the air conditioning compressor.
Engine with electrical connections shown, labeled 1

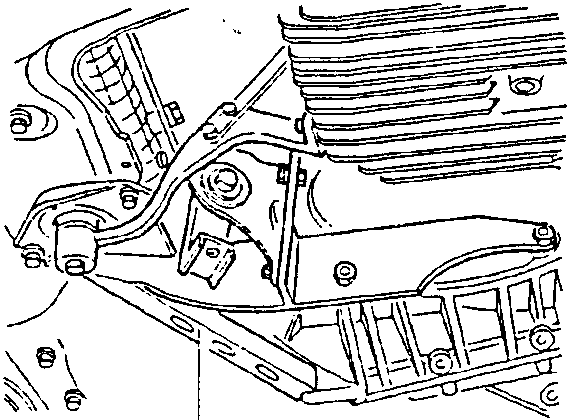

  1. Remove the engine support bracket.
Engine support bracket removal, labeled 1

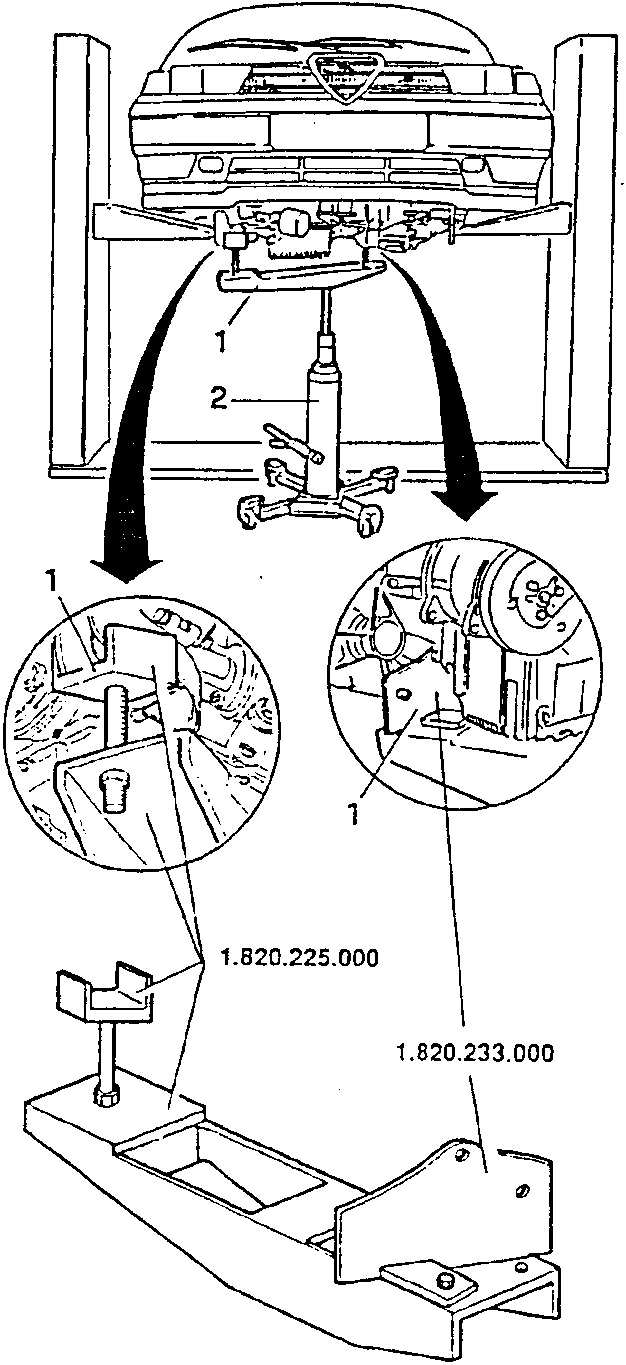

  1. Install support tools N° 1.820.225.000 and N° 1.820.233.000 to remove the engine from the vehicle and position them as shown in the illustration.
  2. Position a hydraulic jack under the engine support tools.

CAUTION The hydraulic jack must be able to support a minimum of 1000 kg.

Engine removal setup with hydraulic jack and support tools, labeled 1 and 2; close-ups show tool details 1.820.225.000 and 1.820.233.000
