Engine – mechanical (Twin Spark)Removal · page 5 of 15
  1. Disconnect the electrical connection from the engine coolant temperature sensor (NTC).
  2. Disconnect the electrical connection from the engine oil pressure meter.
  3. Disconnect the electrical connection from the engine coolant maximum temperature warning light sensor.
  4. Disconnect the electrical connection from the engine coolant temperature sender.

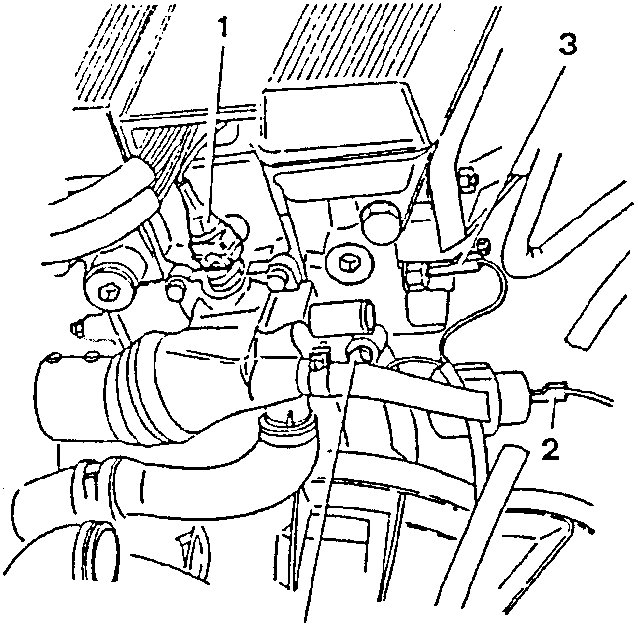

Engine compartment showing accelerator cable, throttle body, and other components
  1. Disconnect the accelerator cable from the throttle body.

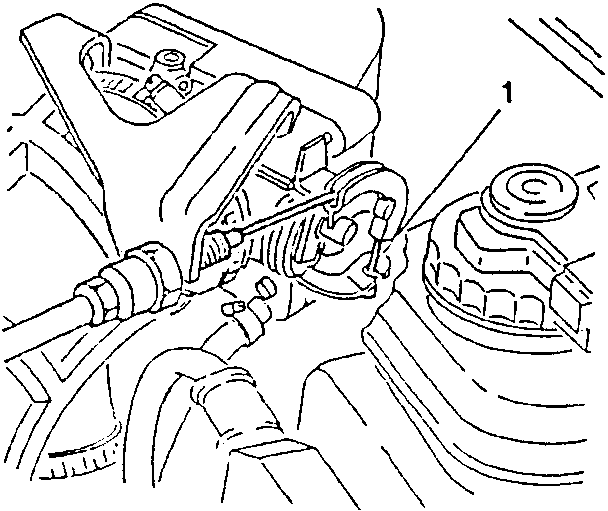

Close-up of throttle body with accelerator cable disconnected
  1. Remove accelerator cable support bracket and move it to the left-hand side of the engine compartment.

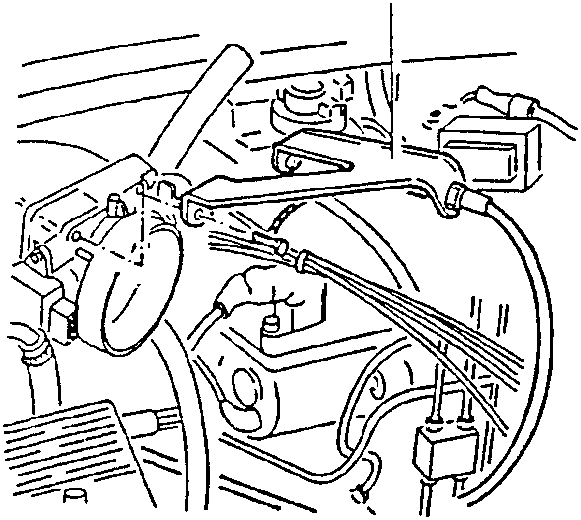

Engine compartment showing accelerator cable support bracket and throttle body
  1. Disconnect the earth point from the negative (-) terminal of the battery.
Engine compartment showing battery terminal and earth point connection
