Engine – mechanical (Twin Spark)Removal · page 12 of 15
  1. Remove the central engine protection cover from the left-hand wheelhousing.
  2. Disconnect the two remaining gear selection rods.

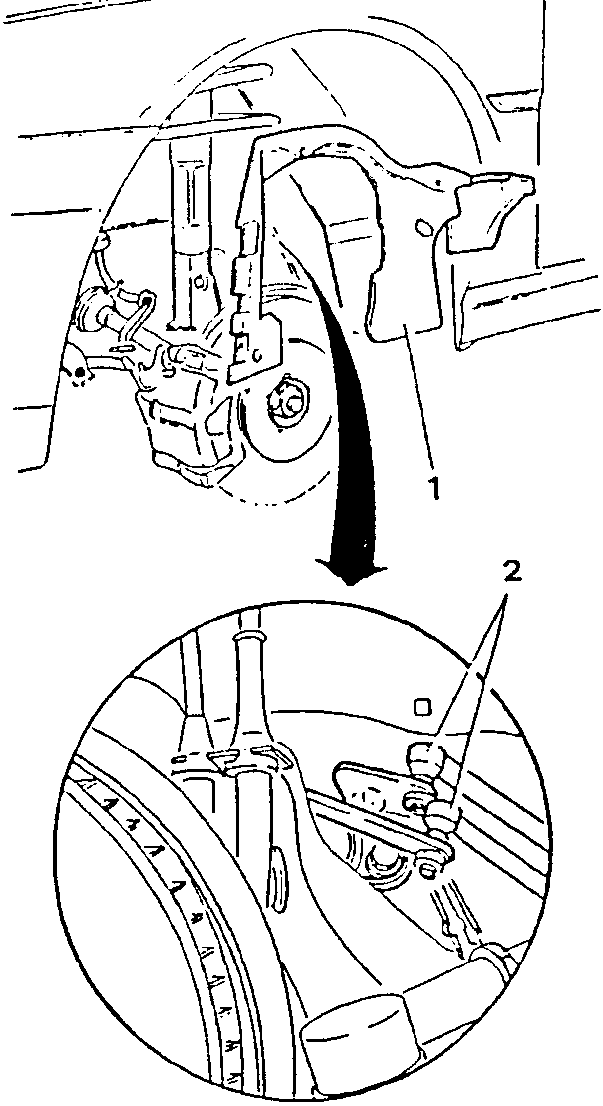

Diagram showing removal of central engine protection cover and disconnection of gear selection rods
  1. Part 1: Central engine protection cover.
  2. Part 2: Gear selection rod.
  3. Remove the central engine protection cover from the right-hand wheelhousing.

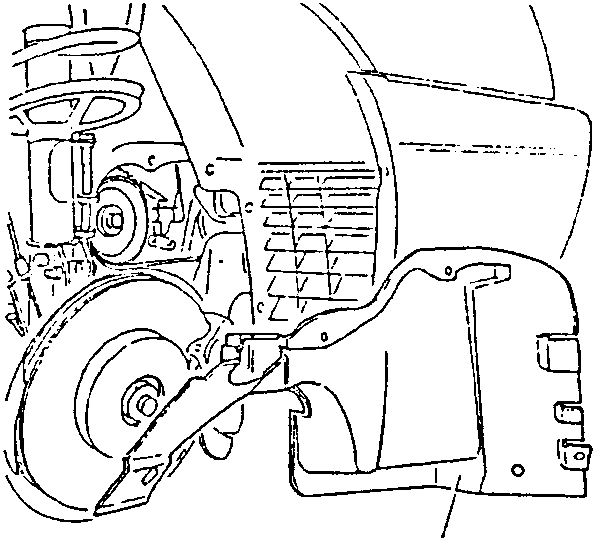

Diagram showing removal of central engine protection cover from right-hand wheelhousing
  1. Unscrew the relative screws and disconnect the left-hand axle-shaft.

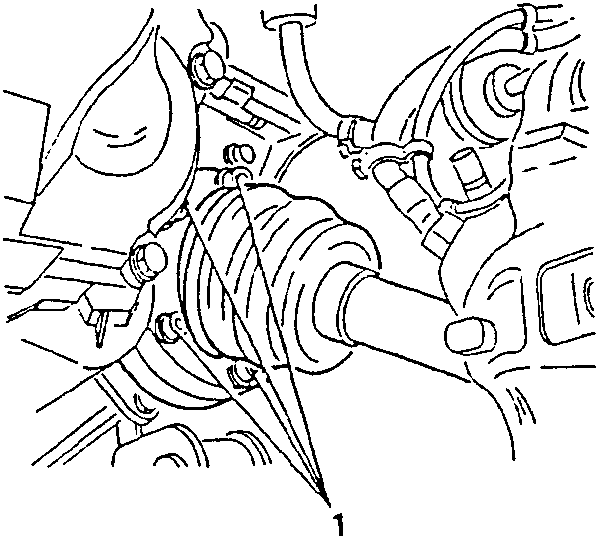

Diagram showing unscrewing and disconnecting the left-hand axle-shaft
