Engine – mechanical (Twin Spark)Removal · page 2 of 15

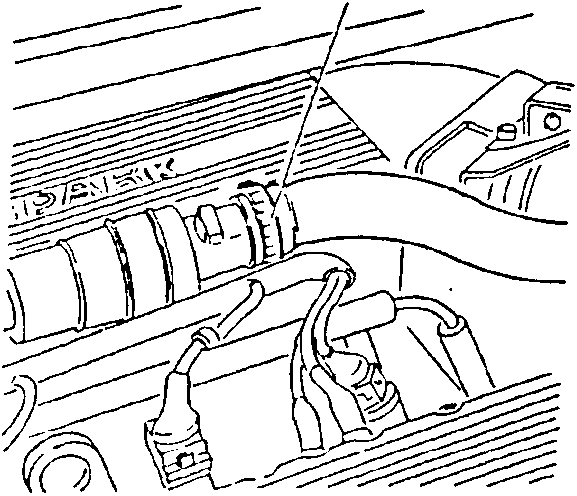

1. Disconnect the air intake pipe from the constant idle speed actuator.

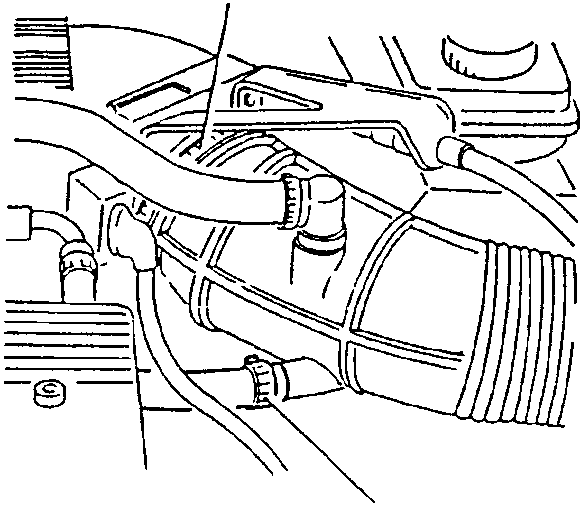

1. Disconnect the oil vapour recirculation hose from the corrugated sleeve.
2. Loosen the clamp and separate the corrugated sleeve from the air intake box.

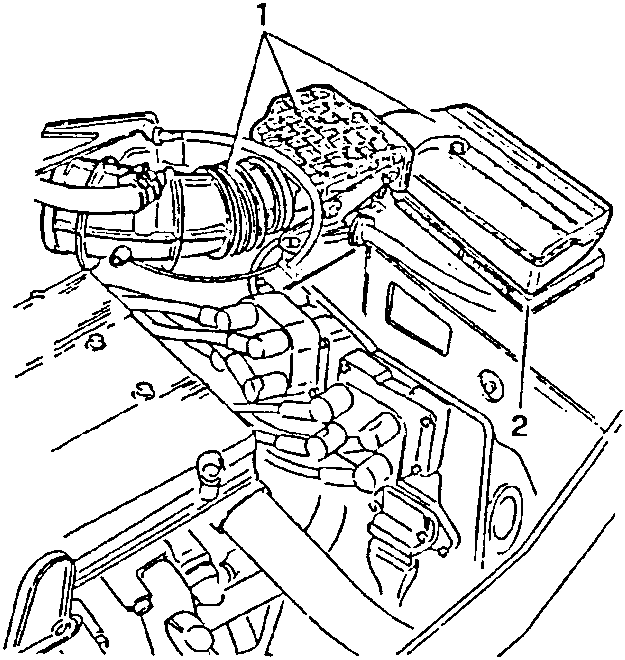

1. Remove the air cleaner cover, air flow meter and corrugated sleeve assembly.
2. If necessary remove the filter element.

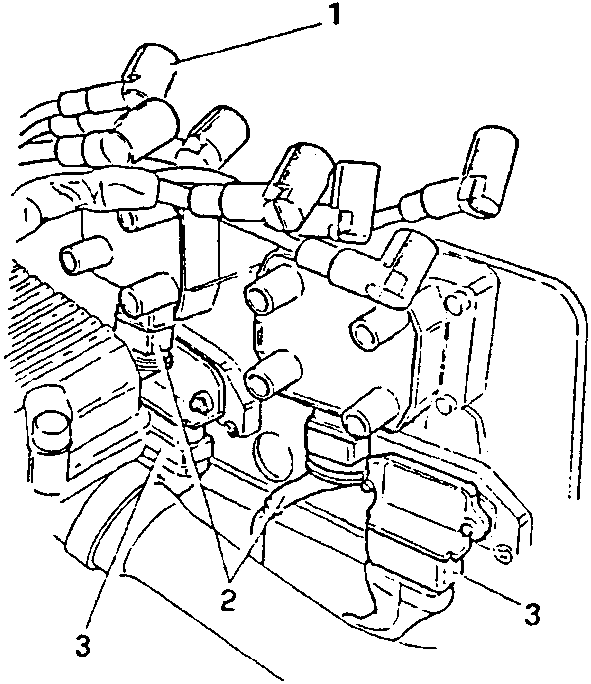

1. Disconnect the spark plug cables from the two ignition coils.
2. Disconnect the electrical connections supplying the ignition coils.
3. Disconnect the electrical connections from the two ignition modules.
