Alfa Romeo 155 Factory Service Manual (1992-1998)03 · Engine – mechanical (Twin Spark)
03 · Engine

Removal (page 6 of 15)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Removal
Engine – mechanical (Twin Spark)Removal · page 6 of 15
  1. Unscrew the screws, and move the bracket to one side together with the hydraulic clutch control without disconnecting the oil inlet pipe.
Engine component showing bracket, hydraulic clutch control, and oil inlet pipe

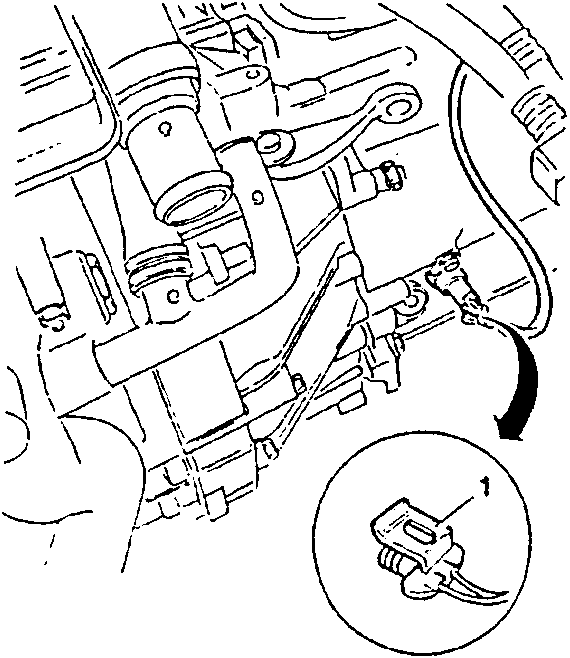

  1. Disconnect the electrical connection from the reversing light switch.
Close-up of reversing light switch electrical connection

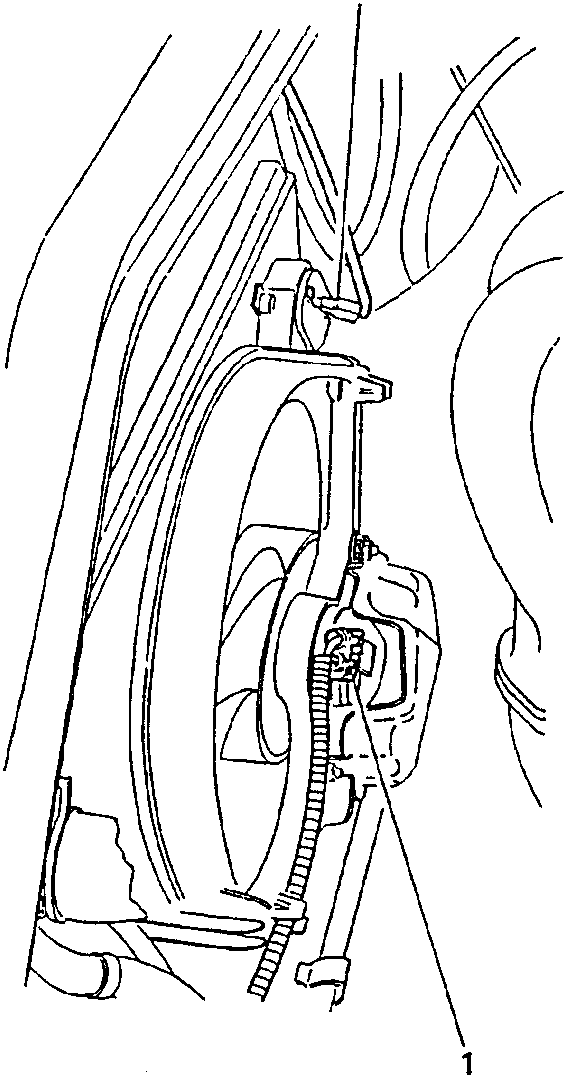

  1. Disconnect the two electrical connections from the engine cooling fan.
Engine cooling fan with two electrical connections
