Engine – mechanical (Twin Spark)Removal · page 13 of 15

1. Unscrew the nut securing the articulated joint pin of the side steering tie-rod - left-hand side.

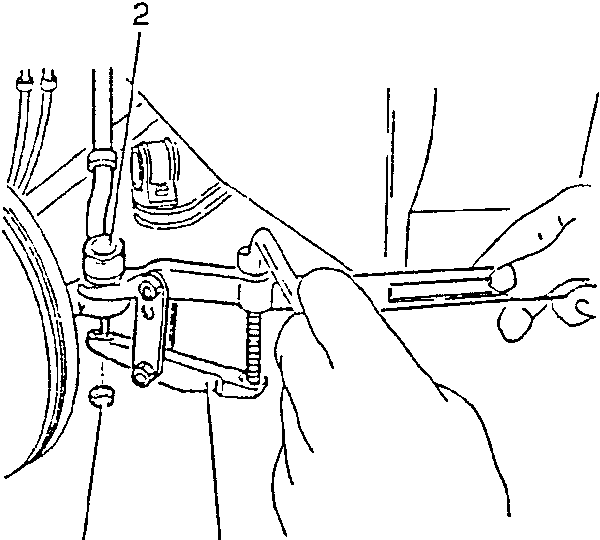

2. Remove the steering tie-rod from the control lever on the support using tool N° 1.821.169.000 (A.3.0633).

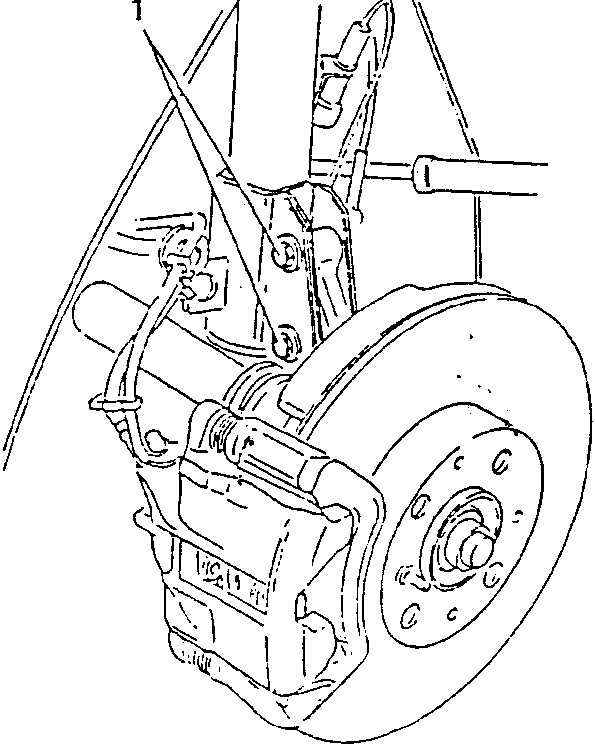

1. Loosen the two bolts securing the support to the front right shock absorber and remove only the upper bolt.

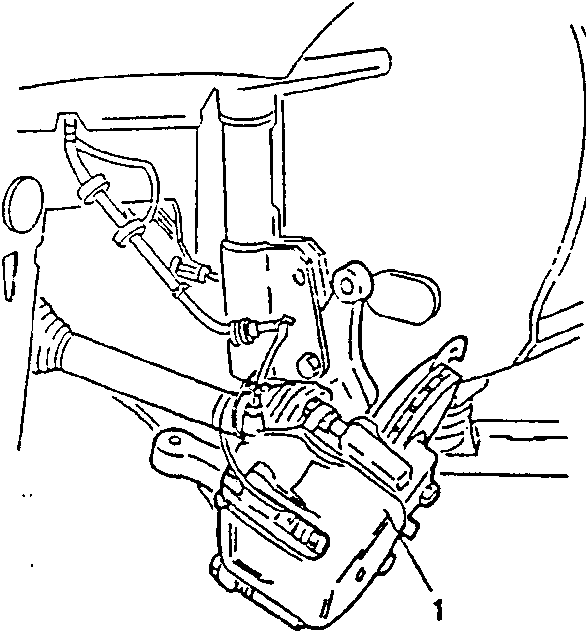

1. Tip the wheel hub as far forward as possible which will also move the axleshaft forward.

• Operate on the right-hand side as for the left to move the axleshaft forward from its support.

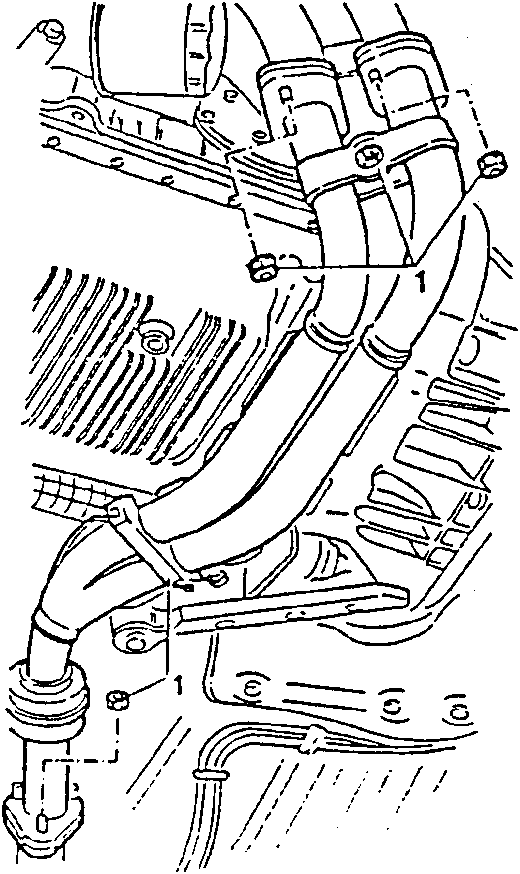

1. Remove the forward section of the exhaust pipe (see GROUP 04).
