Description (page 2 of 5)
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Body
70 BodyworkDescription · page 2 of 5

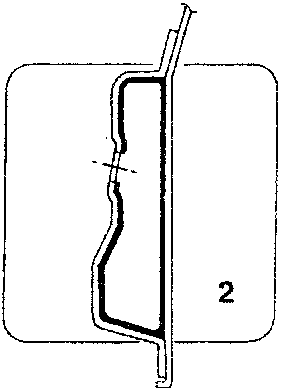

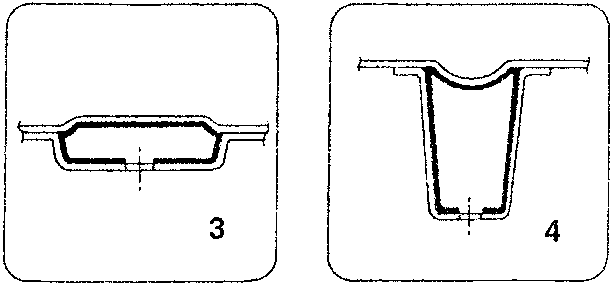

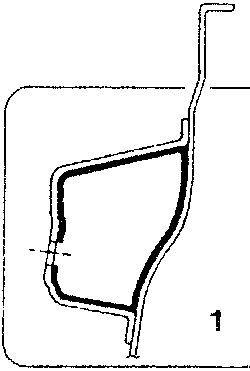

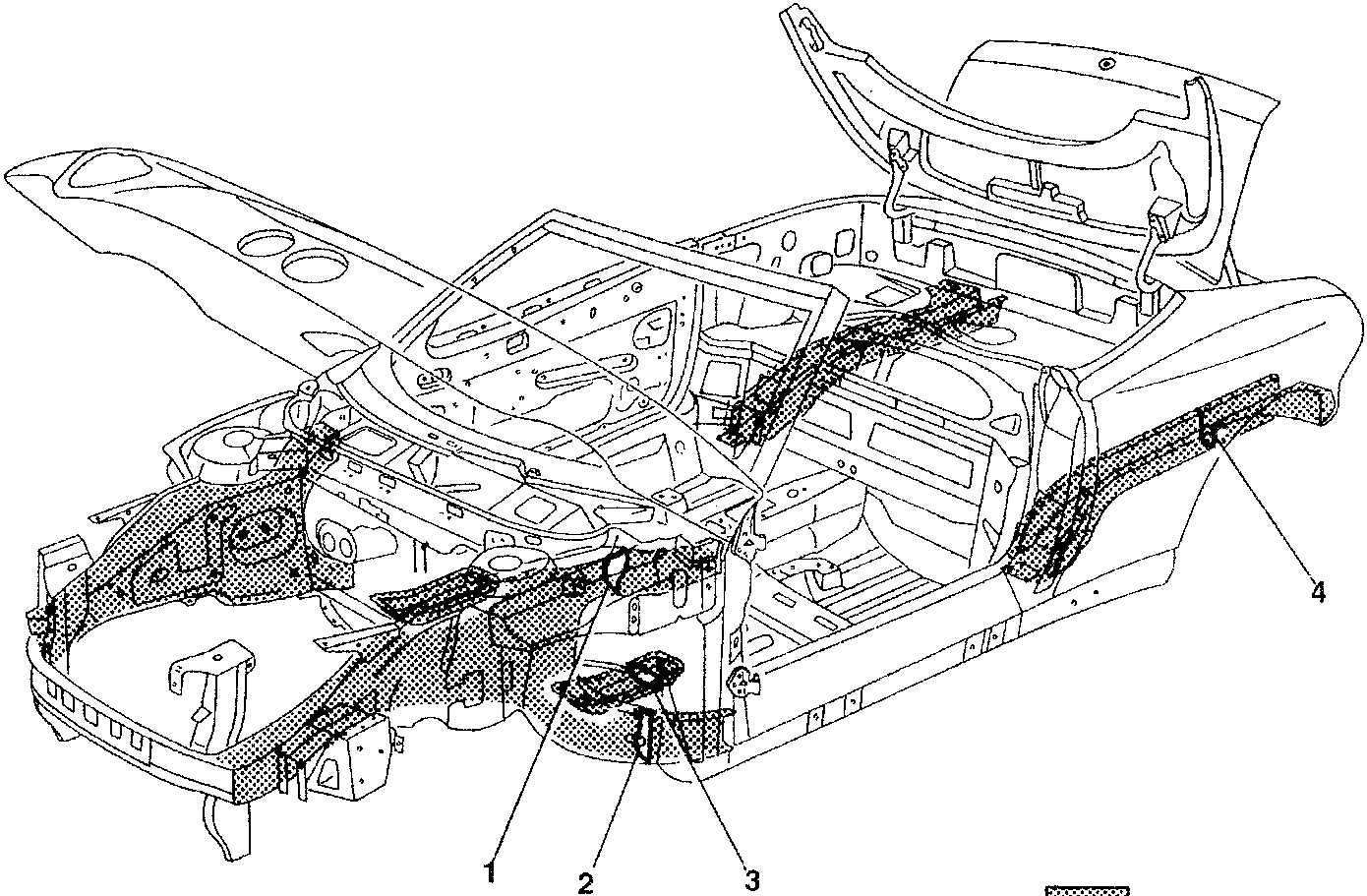

The inner surfaces of the parts shown in the figure undergo protective treatment with wax oil sprayed at high pressure.
The boxed sections of these areas are formed with steel sheets galvanized on one side with the outside protected by galvanizing.
- part name
- part name
- part name
- part name
Wax Oil
