Variants – 3.0 V6 24VMaintenance · page 10 of 12

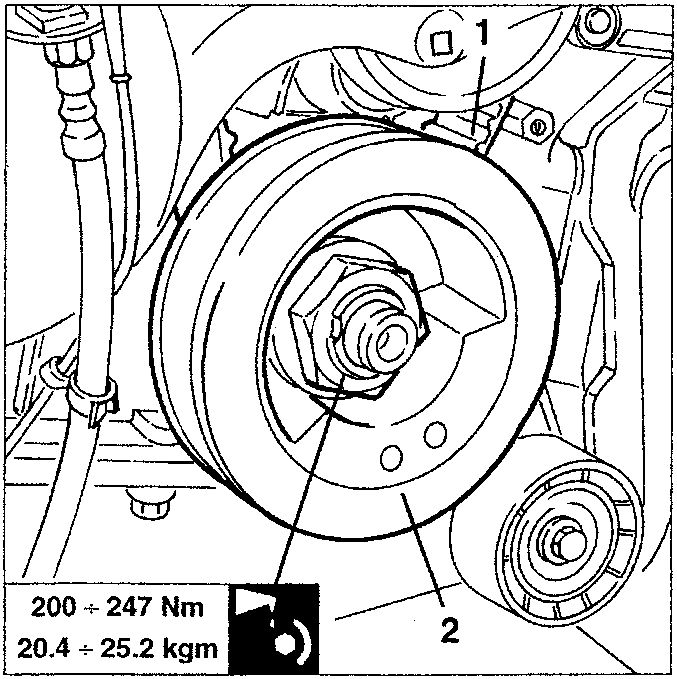

  1. Raise the car and fit a new timing gear belt on the crankshaft drive pulley.
  2. Fit the auxiliary components drive pulley and tighten the fastening nut to the specified torque.
  • Remove the flywheel stopper tool no. 1.820.088.000 installed previously.
Timing gear belt installation on crankshaft drive pulley with torque specification box

200 ÷ 247 Nm
20.4 ÷ 25.2 kgm

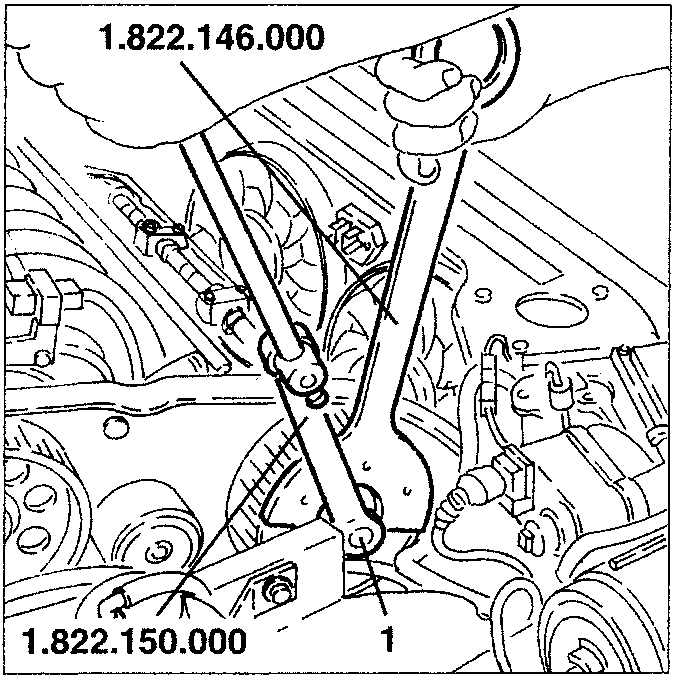

  1. Lower the car and using extension no. 1.822.150.000 and tool no. 1.822.146.000 as counter torque, slacken the fastening screws of the camshaft drive pulleys.
Slackening camshaft drive pulley screws using extension and tool

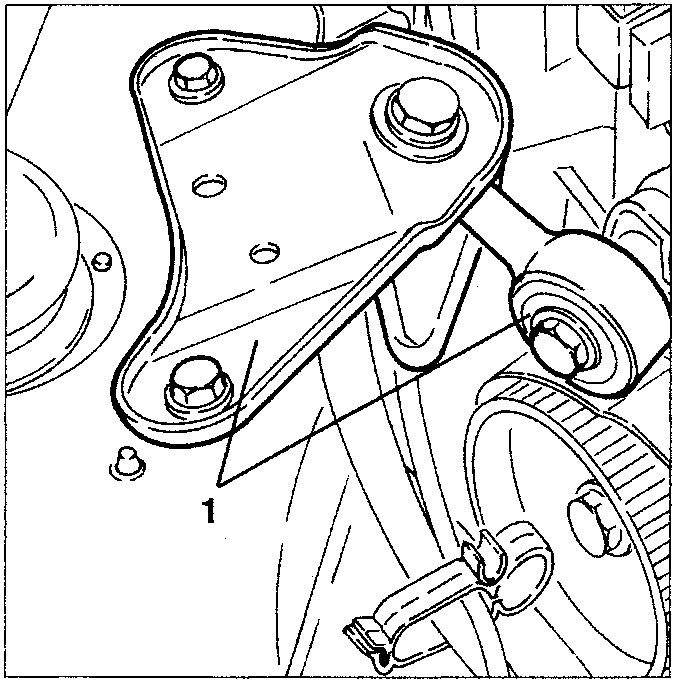

  1. Slacken the fastening screws and remove the engine stay connecting rod complete with support bracket.
Engine stay connecting rod with support bracket removal

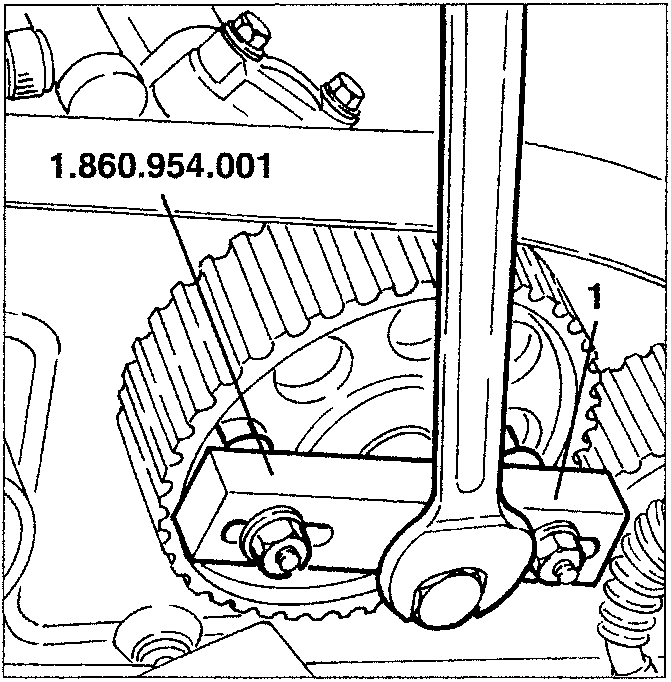

  1. Using tool no. 1.860.954.001 remove the drive pulleys from the camshafts, then reposition them tightening the screws by hand.
Removing and repositioning drive pulleys on camshafts using tool
