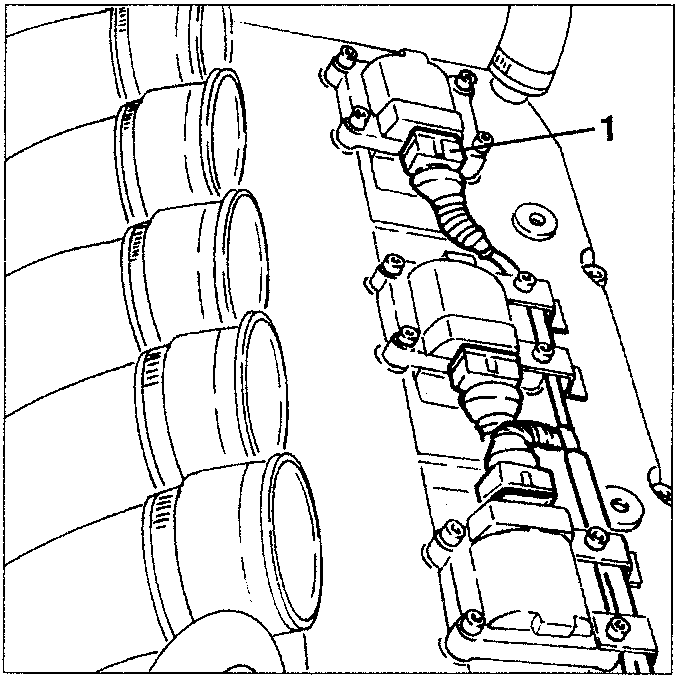

  1. Disconnect the electrical connections from the ignition coils of the right cylinder head.
Right cylinder head with ignition coils and electrical connections

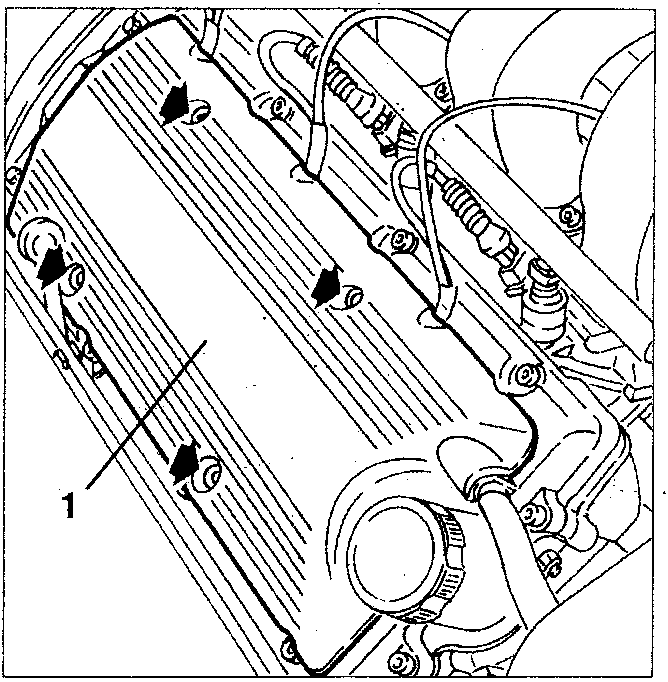

  1. Slacken the fastening screws and remove the cover of the ignition coils of the left cylinder head.
Left cylinder head with ignition coils and screws

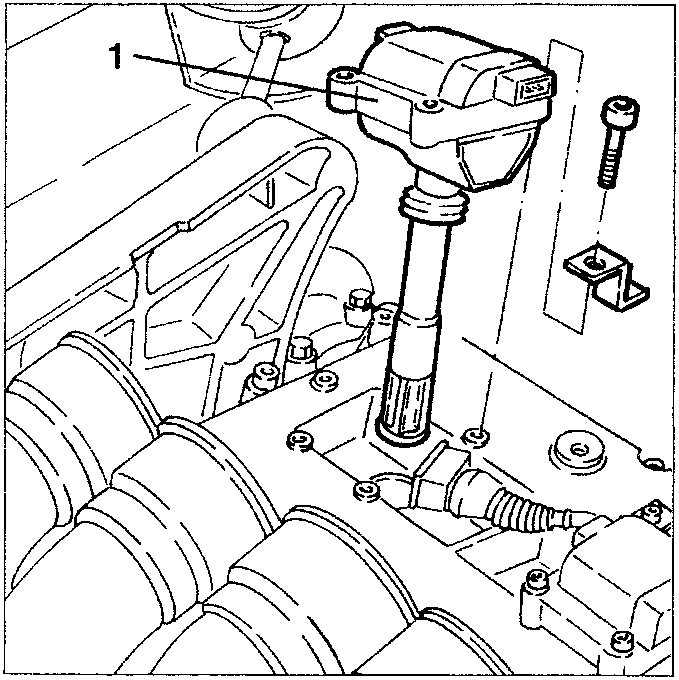

  1. Slacken the fastening screws and remove the ignition coils from the right cylinder head.
Right cylinder head with ignition coil removed

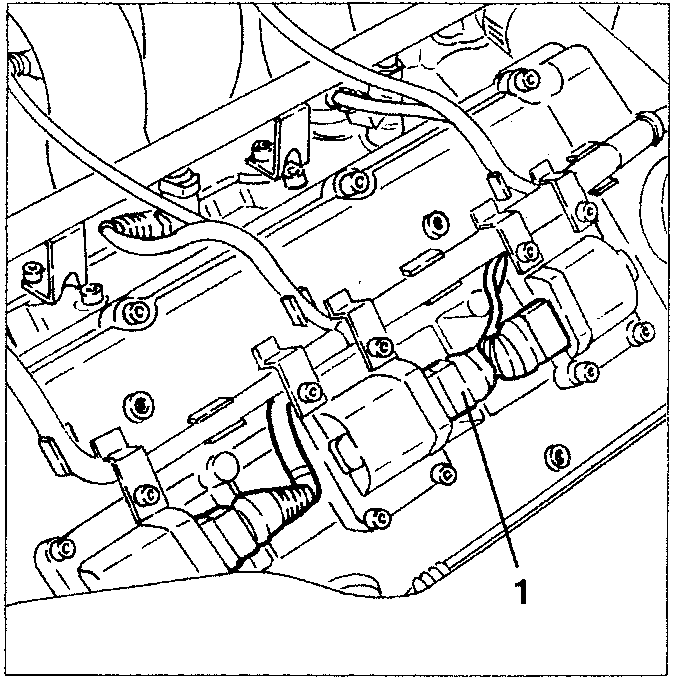

  1. Disconnect the electrical connections from the ignition coils of the left cylinder head.
Left cylinder head with ignition coil and electrical connections
