Maintenance (page 12 of 12)

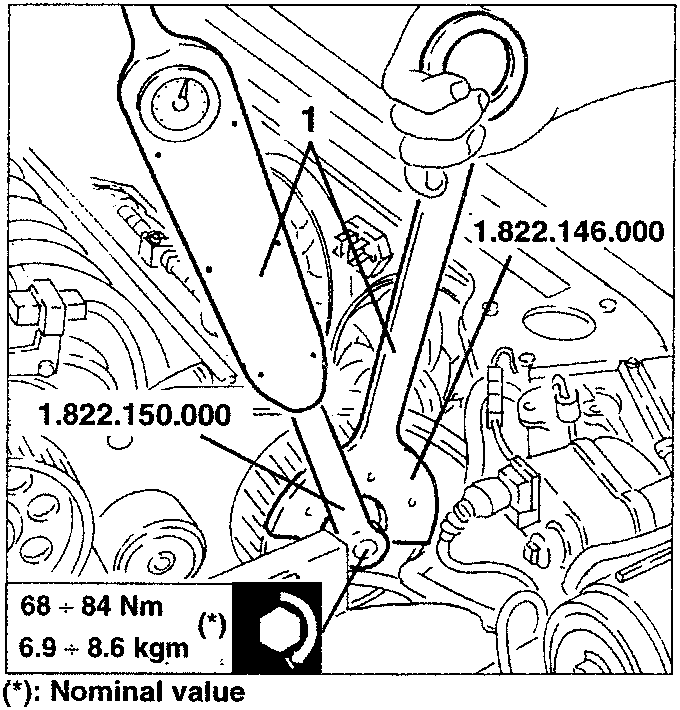

1. Using extension no. 1.822.150.000 and tool no. 1.822.146.000 as counter torque, tighten the camshaft drive pulley fastening screws to the specified torque.

68 ÷ 84 Nm
6.9 ÷ 8.6 kgm

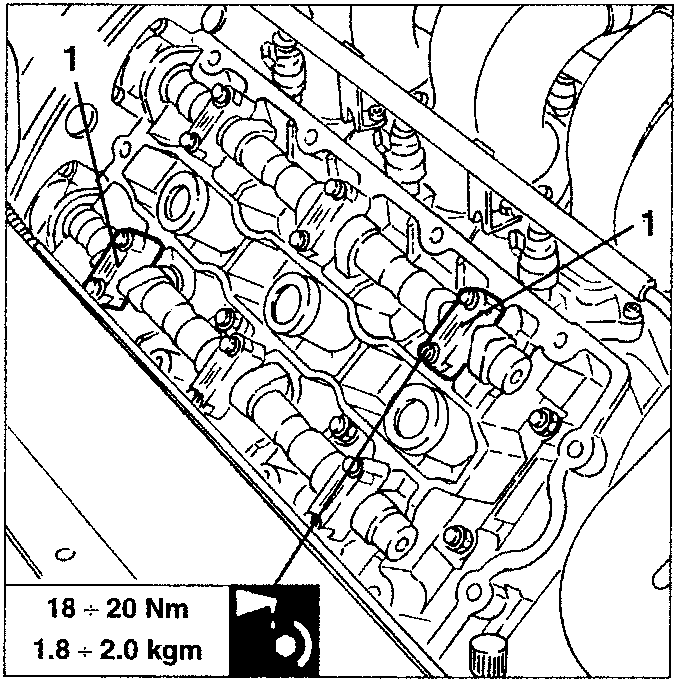

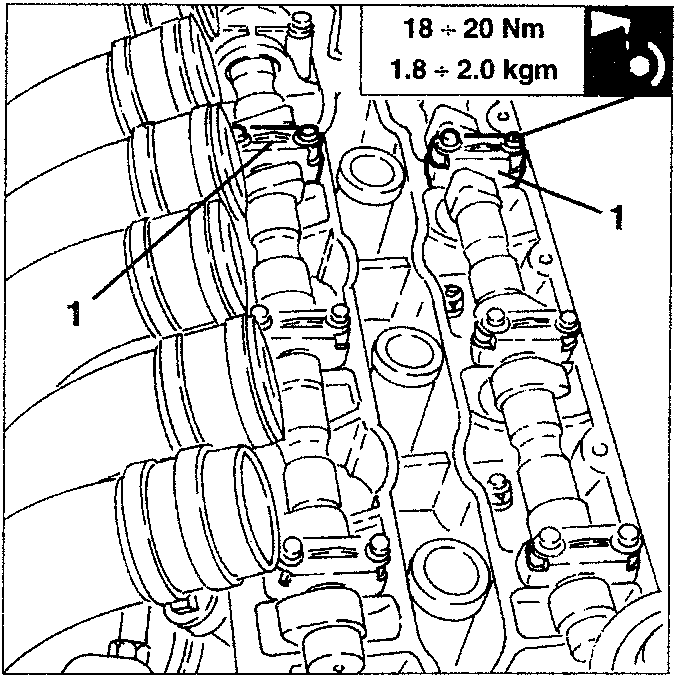

1. Remove the templates no. 1.825.040.000 installed previously and in place of them fit the respective caps and tighten the fastening screws to the specified torque.

18 ÷ 20 Nm
1.8 ÷ 2.0 kgm

• Turn the crankshaft twice in its direction of rotation to allow the timing gear drive belt to settle.

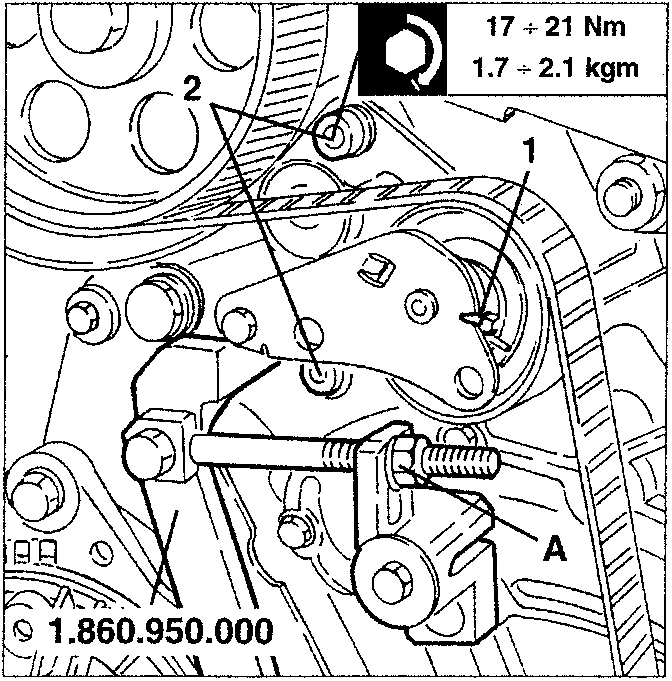

1. Make sure that the fixed index of the tensioner coincides with the mobile index; if not slightly relieve the tension of the tensioner working on the nut (A) until the indexes coincide.
2. Tighten the belt tensioner fastening screws to the specified torque and remove tool no. 1.860.950.000 used for tensioning.

17 ÷ 21 Nm
1.7 ÷ 2.1 kgm

• Complete refitting reversing the sequence followed for disassembly.
