Variants – 3.0 V6 24VMaintenance · page 2 of 12

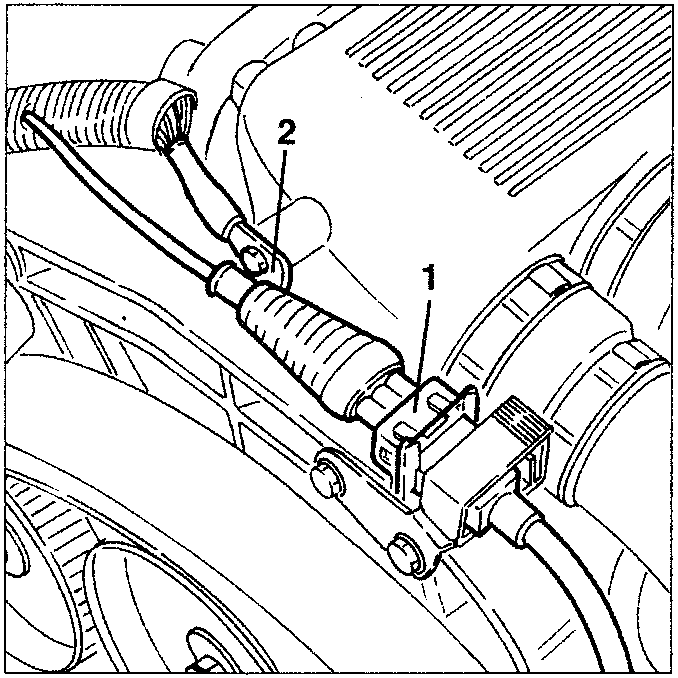

1. Disconnect the electrical connection of the front pinging sensor.
2. Disconnect the earth cable (front) from the intake box.

1. part name
2. part name

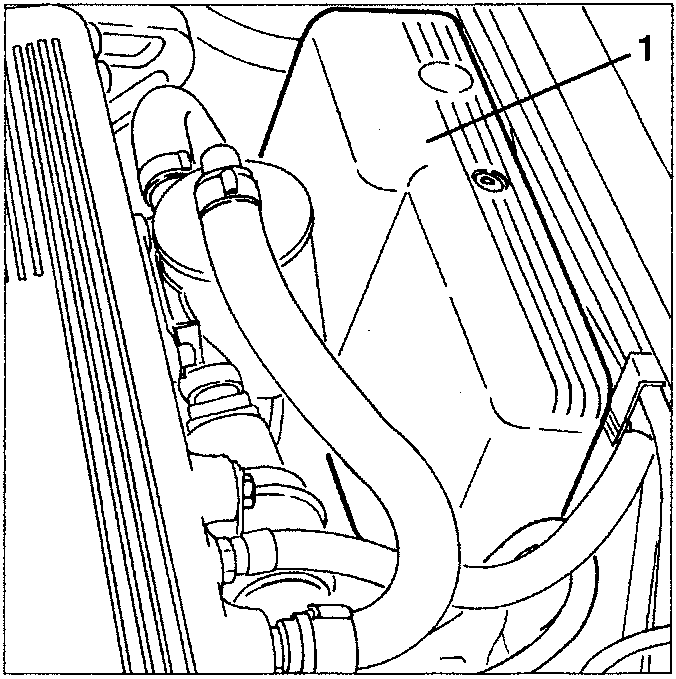

1. Remove the cover from the relays, fuses and electrical connections.

1. part name

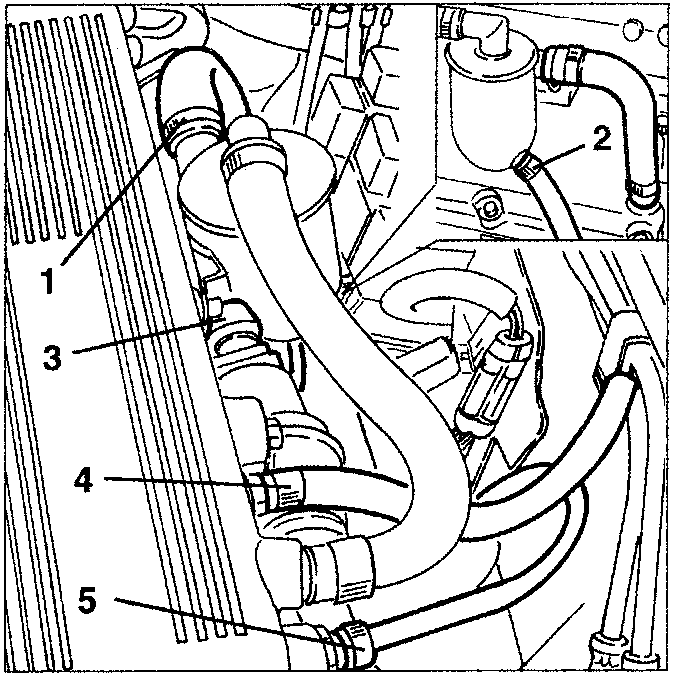

1. Disconnect the oil vapour recovery pipe from the separator
2. Disconnect the condensed oil recovery pipe from the separator.
3. Disconnect the electrical connection from the constant idle actuator.
4. Disconnect the fuel vapour recovery pipe from the intake box.
5. Disconnect the servobrake vacuum takeoff pipe from the intake box.

1. part name
2. part name
3. part name
4. part name
5. part name

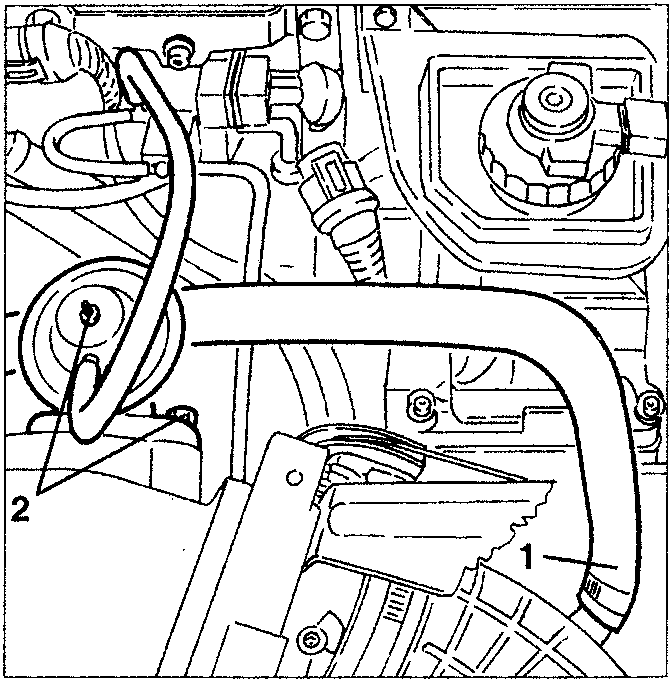

1. Disconnect the air inlet pipe for the constant idle speed actuator from the corrugated sleeve.
2. Slacken the two fastening nuts and remove the E.G.R. valve from the intake box.

1. part name
2. part name
