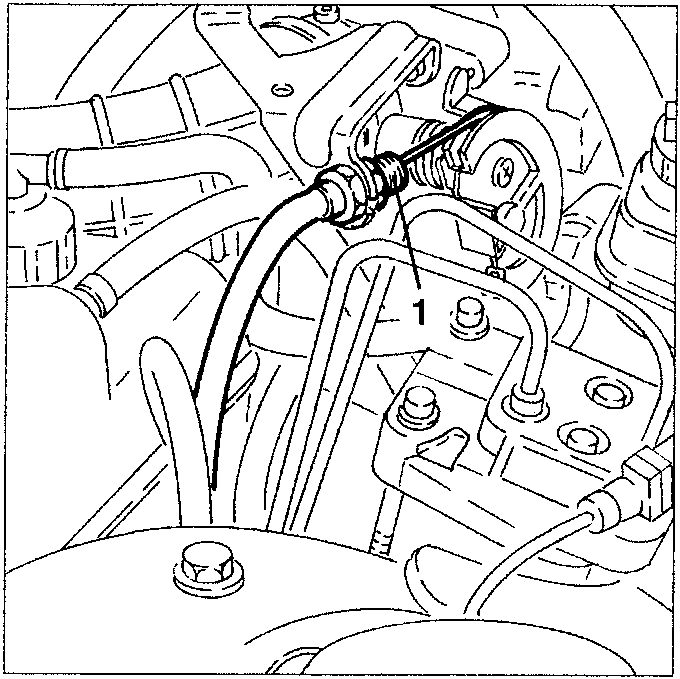

  1. Disconnect the accelerator cable from the throttle cam.
Engine diagram showing accelerator cable disconnection

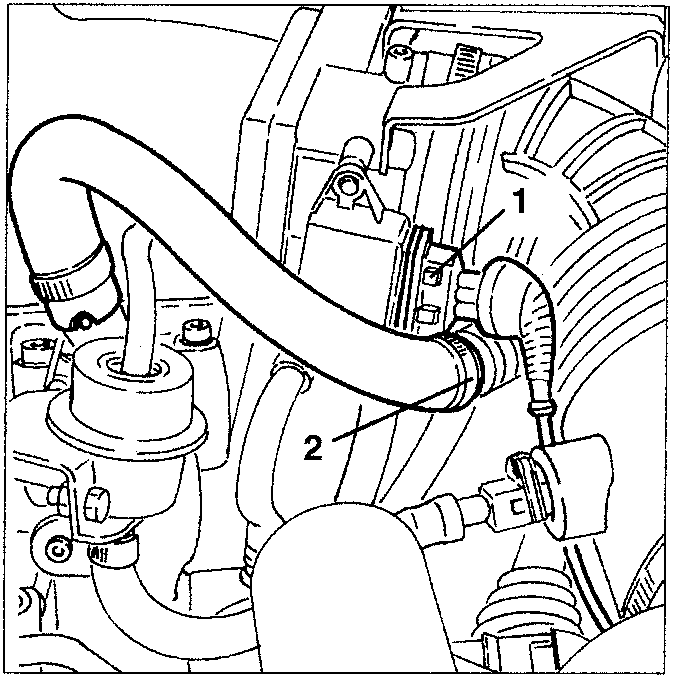

  1. Disconnect the electrical connection from the throttle potentiometer.
  2. Disconnect the oil vapour recovery pipe leading from the right cylinder head from the corrugated sleeve.
Engine diagram showing electrical and vapour recovery pipe disconnections

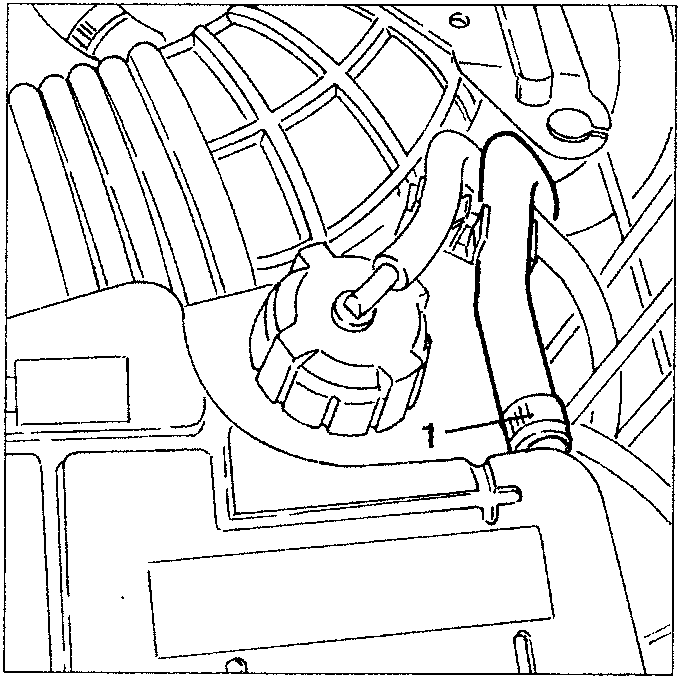

  1. Disconnect the engine coolant return pipe from the throttle body from the expansion tank.
Engine diagram showing coolant return pipe disconnection

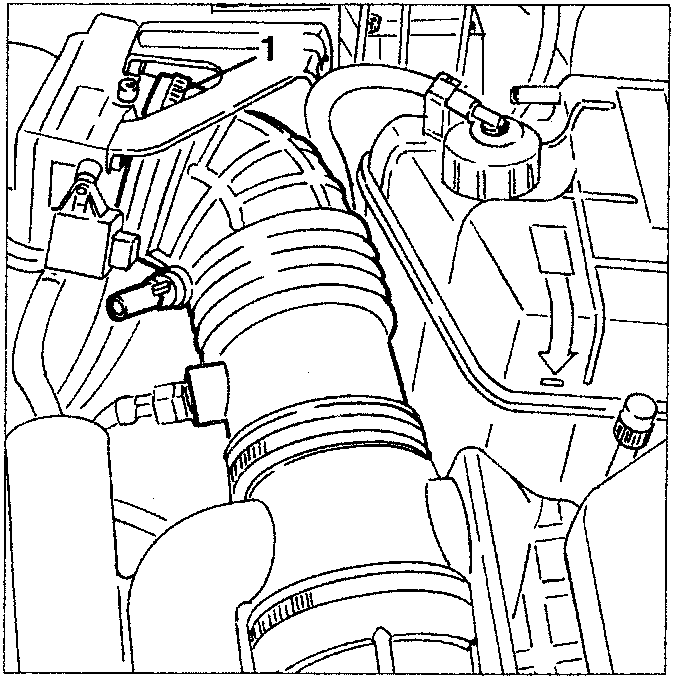

  1. Slacken the fastening clamp and disconnect the corrugated sleeve from the throttle body.
Engine diagram showing corrugated sleeve disconnection
