Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Maintenance (page 9 of 12)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Maintenance
Variants – 3.0 V6 24VMaintenance · page 9 of 12
  • Remove the camshaft caps 4 and 7 for the left cylinder head.

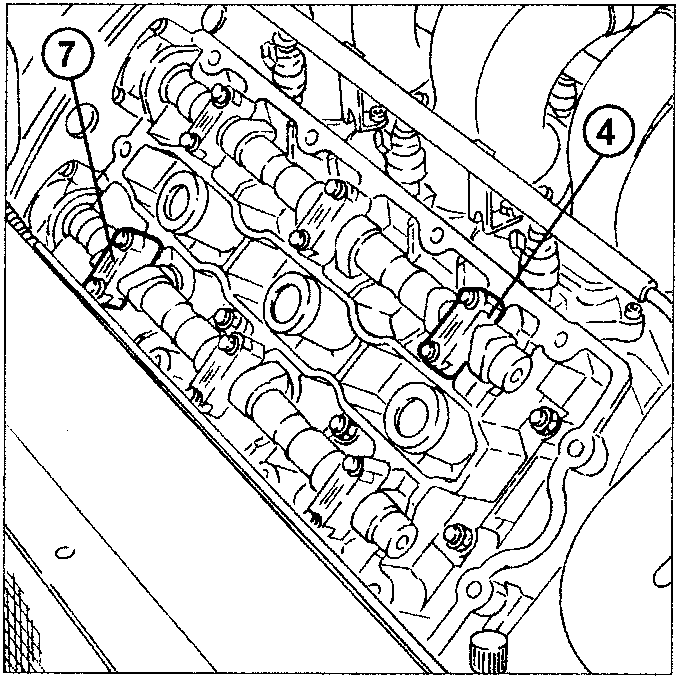

Engine diagram showing camshaft caps 4 and 7
  • Remove the camshaft caps B and G for the right cylinder head.

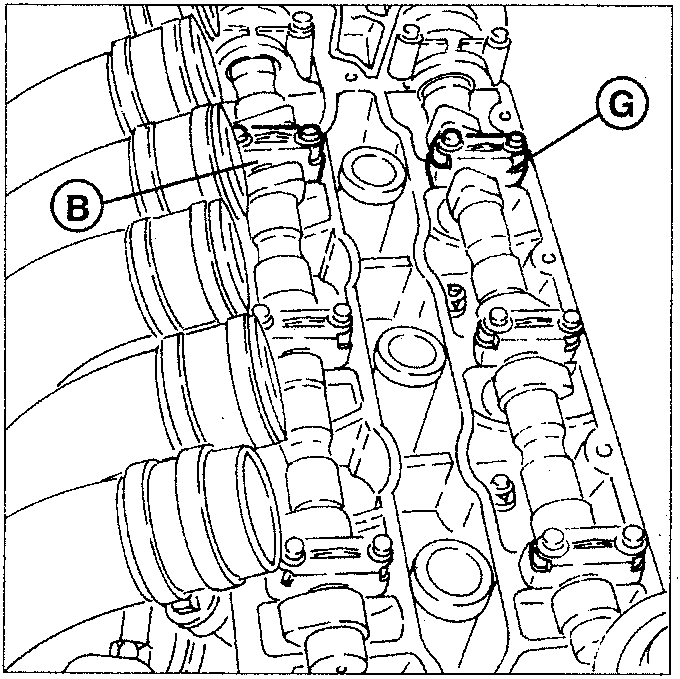

Engine diagram showing camshaft caps B and G
  1. Using tool no. 1.822.146.000, turn each camshaft until the reference notches on them coincide with the upper surface of the cylinder head.

NOTE: The reference notches should face the centre of each head.

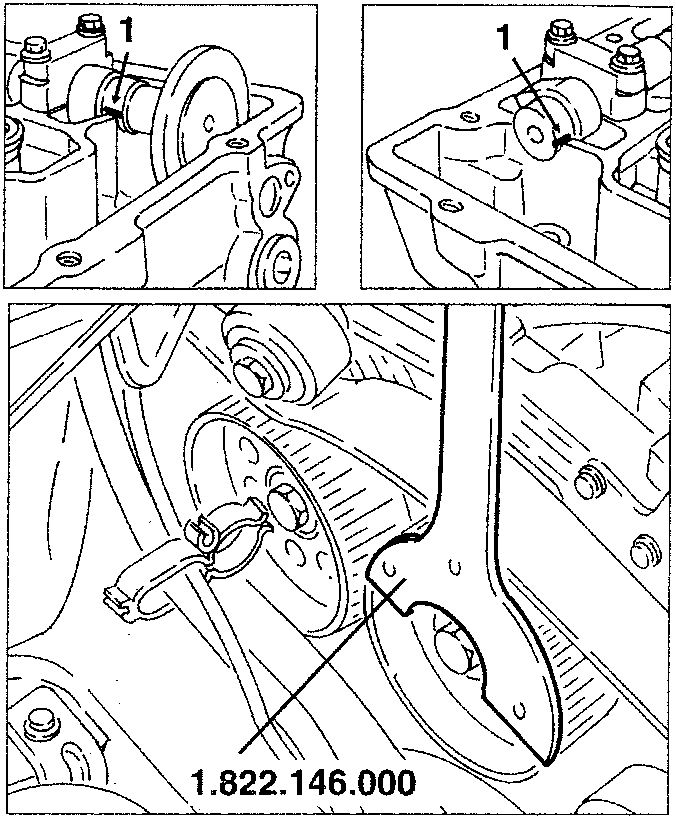

Tool 1.822.146.000 shown in use
  1. In place of the removed camshaft caps set templates no. 1.825.040.000 in the position shown by the stamping on the templates.

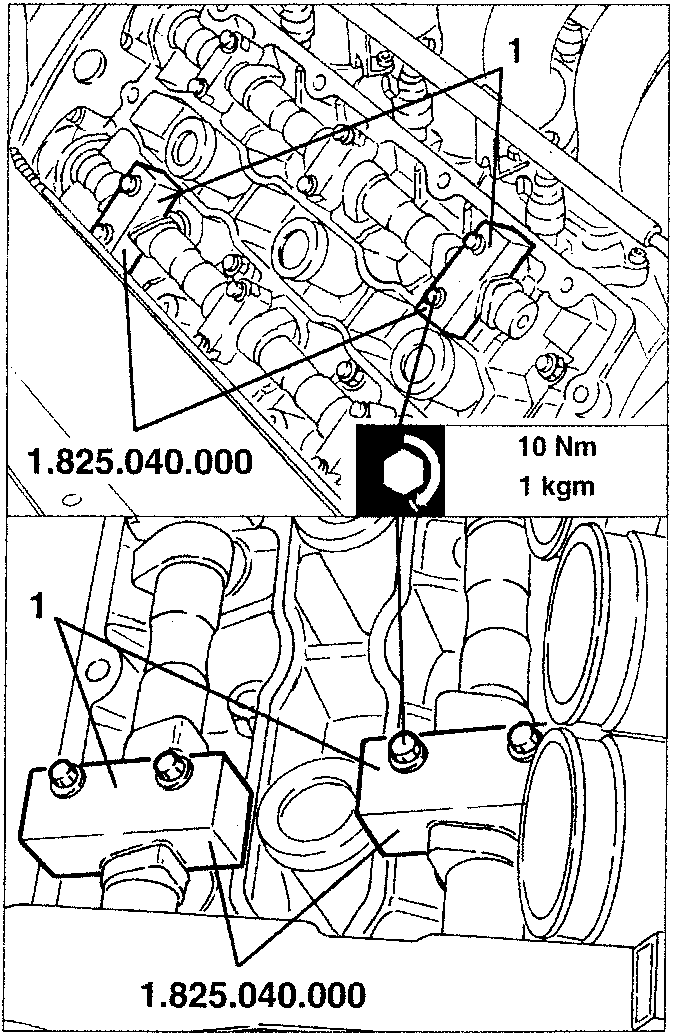

Templates 1.825.040.000 installed with torque specification

10 Nm
1 kgm
