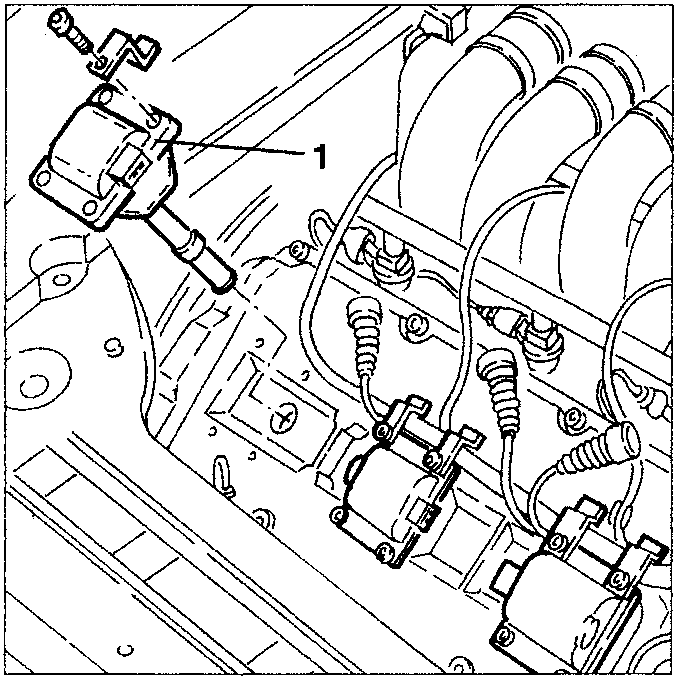

  1. Slacken the fastening screws and remove the ignition coils from the left cylinder head.
ignition coil on left cylinder head

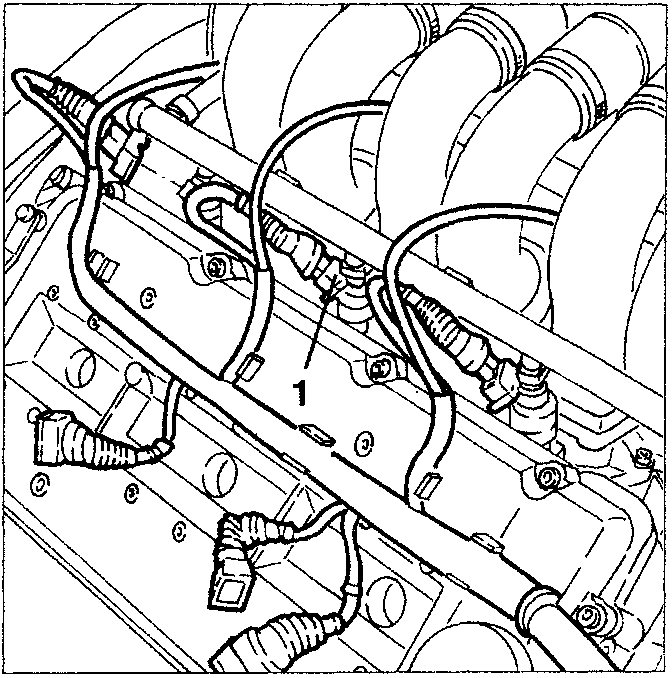

  1. Disconnect the electrical connections from the injectors, then move the wiring to one side.
electrical connections from injectors

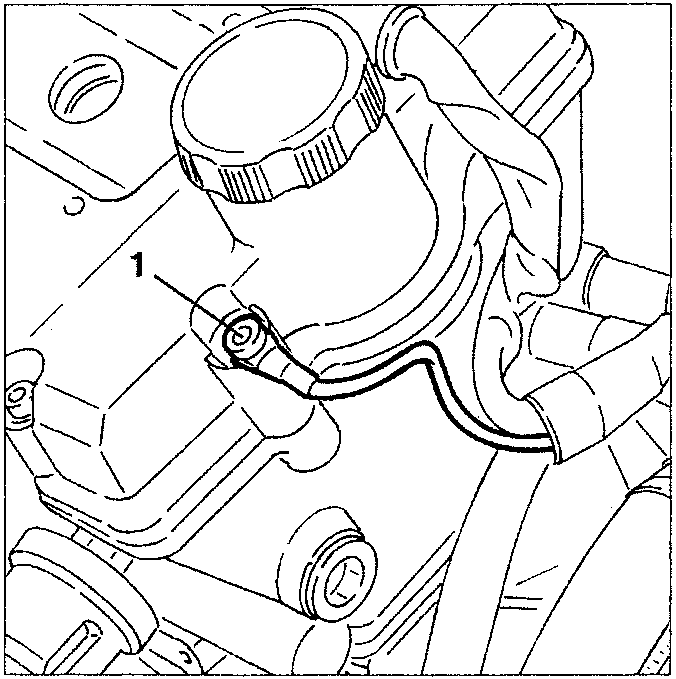

  1. Disconnect the earth cable from the left cylinder head.
earth cable on left cylinder head

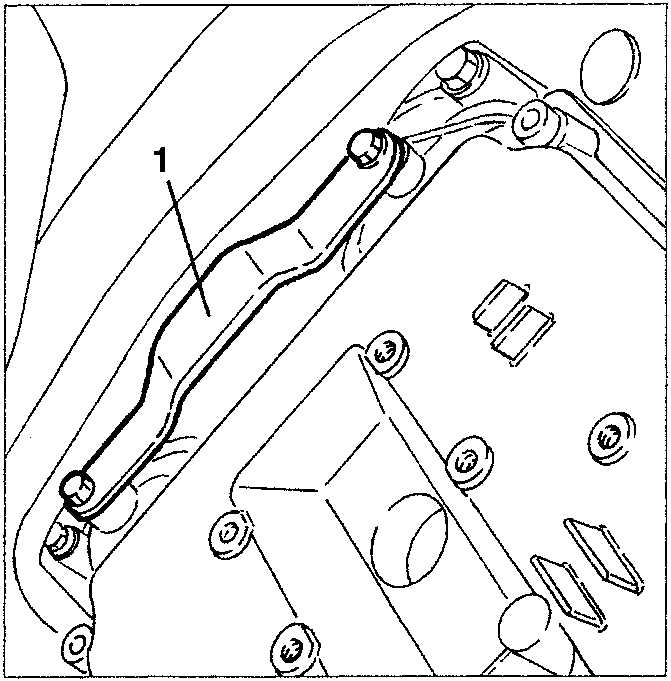

  1. Slacken the fastening screws and remove the bracket complete with threaded nut for fastening the timing gear belt upper guard from the left cylinder head.
bracket for timing gear belt upper guard
