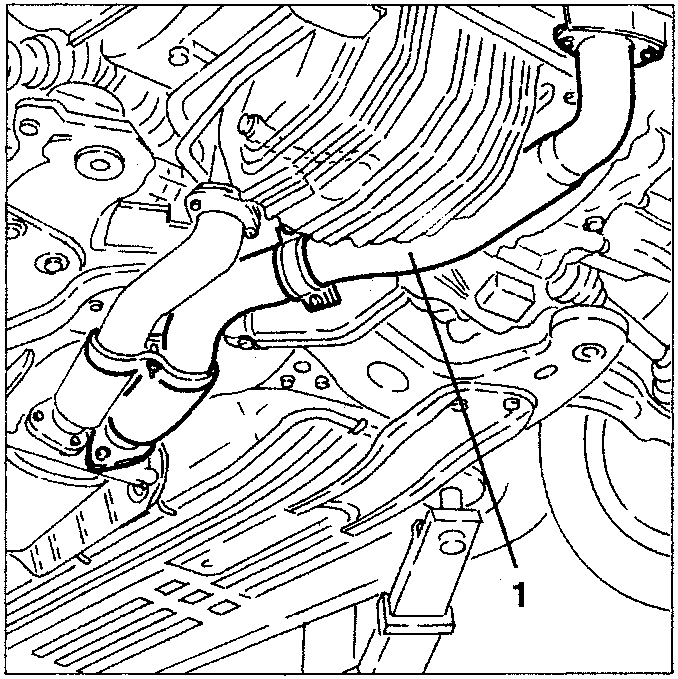

  1. Raise the car, slacken the fastenings, then remove the front section of exhaust pipe only of the left cylinder head.
Exhaust pipe removal from left cylinder head

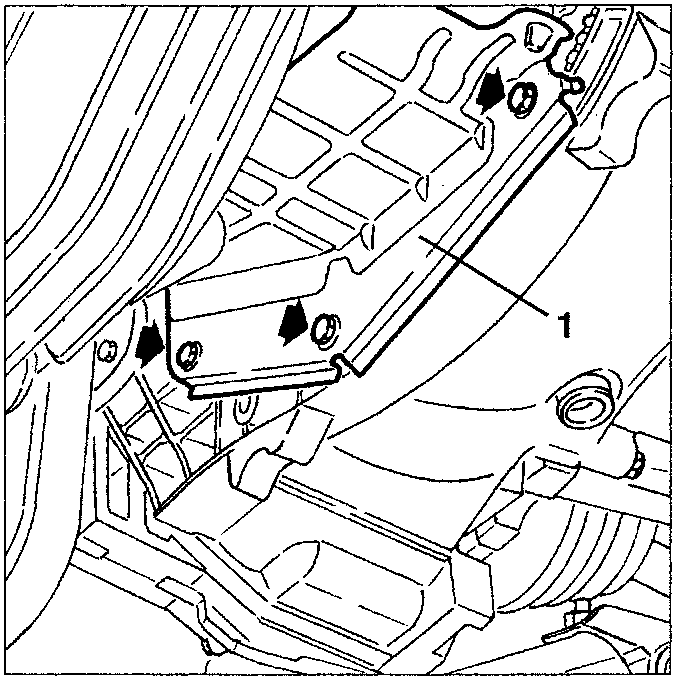

  1. Slacken the fastening screws and remove the flywheel guard.
Flywheel guard removal

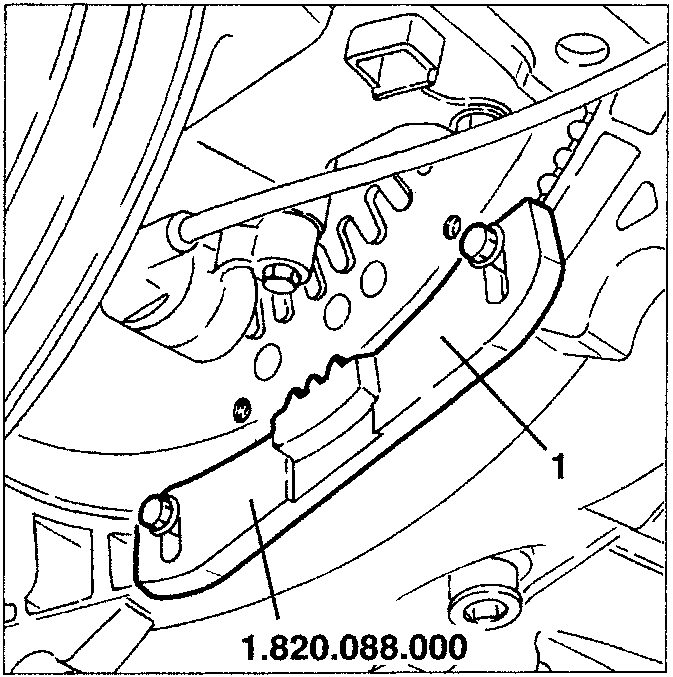

  1. Install the flywheel stopper tool no. 1.820.088.000.
Flywheel stopper tool installation

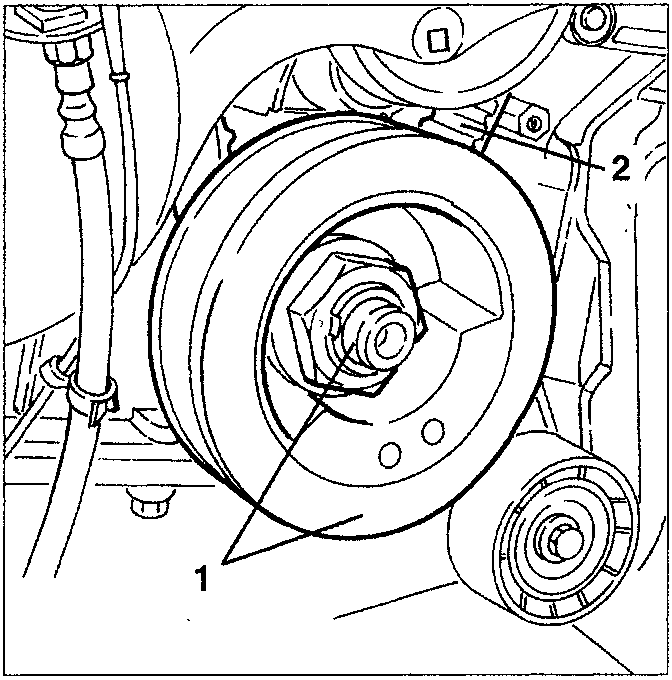

  1. Remove the caulking and remove the fastening nut, then remove the auxiliary components drive pulley.
    2. Prise and remove the timing gear drive belt.
Timing gear drive belt removal
