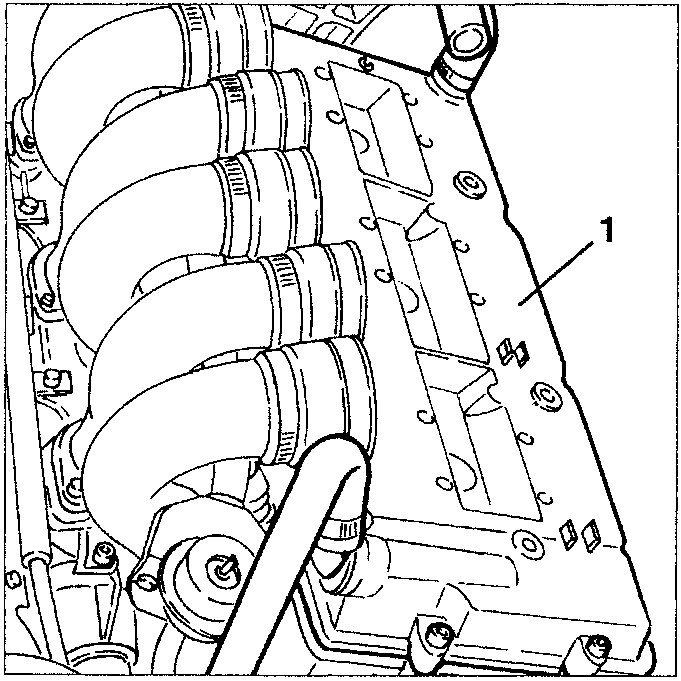

  1. Slacken the fastening screws and remove the cover from the left cylinder head.
Engine cover with screws and labeled part 1
  1. part name

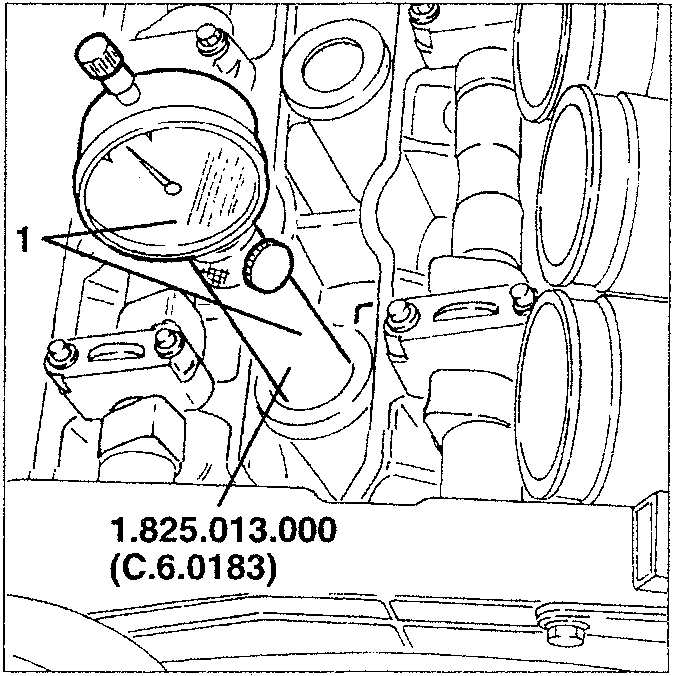

  2. Install tool no. 1.825.013.000 (C.6.0183) in the housing of the first cylinder spark plug.
  • Working on the fastening nut from the auxiliary components drive pulley, make the crankshaft turn a little (both ways) until the piston of the 1st cylinder reaches the T.D.C. in the bursting stroke.

NOTE: Make sure that the last turn of the crankshaft is in the operating direction.

Tool 1.825.013.000 (C.6.0183) installed in spark plug housing
  1. part name

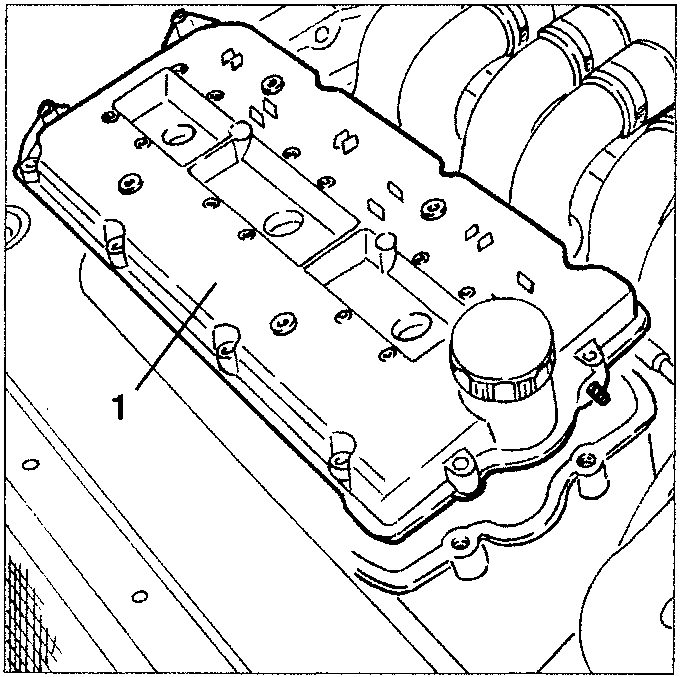

  2. Slacken the fastening screws and remove the cover from the right cylinder head.
Engine cover with screws and labeled part 1
  1. part name

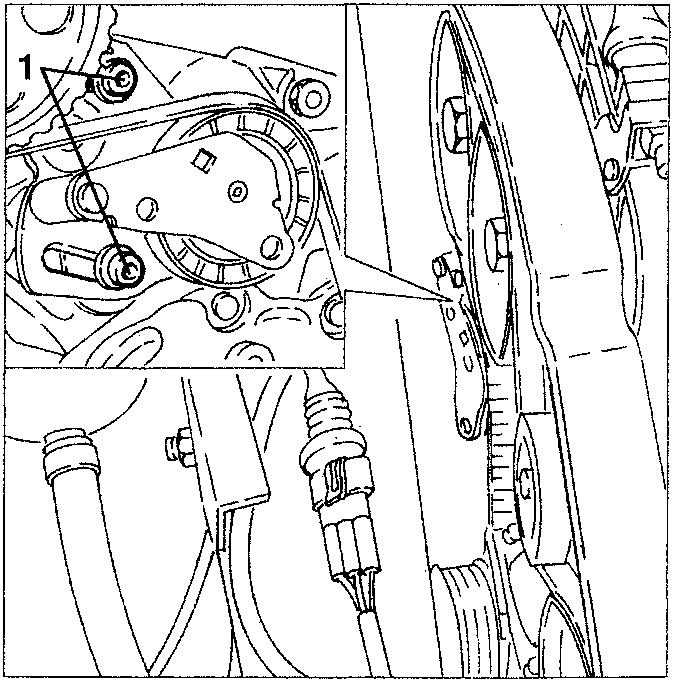

  2. Slacken the two screws fastening the belt tensioner for the timing gear drive belt.
Belt tensioner with labeled part 1
  1. part name
